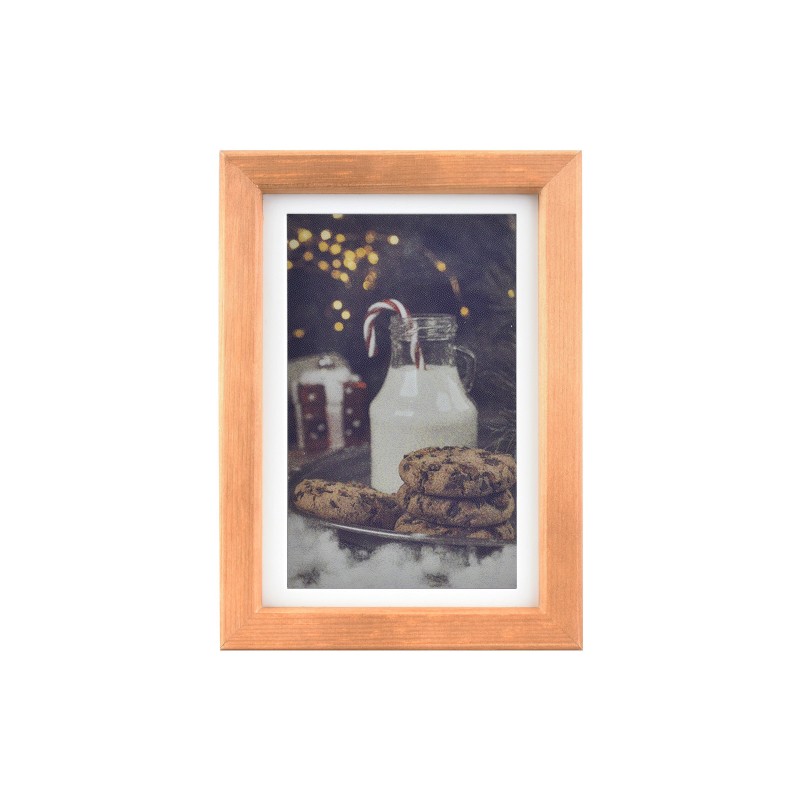

PhotoPainter (B) 7-color 800×480 display in wooden frame with battery - Waveshare 30068
ID: 1197657
zł411.96
Tax included
zł334.93 tax excl.
PhotoPainter (B) is a versatile, standalone 7.3-inch e-paper display based on E Ink Spectra 6 technology, powered by a built-in battery and enclosed in an elegant wooden frame. It offers high-quality full-color graphic display, long operation time without power, and broad functionality, making it ideal for home, office, and display use.
Description
PhotoPainter (B) is a modern 7.3-inch e-paper display featuring E Ink Spectra 6 (E6) technology, which enables full-color, high-saturation image display in six primary colors. The device includes a built-in 3.7 V / 1800 mAh lithium-ion battery, and its energy-efficient power system allows for hundreds of refresh cycles without recharging. The construction is housed in a solid wood frame with a modern, minimalist design, suitable for tabletop placement or wall mounting. With TF card support, USB-C port, built-in RTC, and NOR Flash memory, the device functions autonomously as a digital frame, calendar, content display, or multimedia gallery.
Specifications
- Diagonal: 7.3"
- Resolution: 800 × 480 px
- Technology: E Ink Spectra 6 (E6), full-color e-paper
- Display type: passive, no backlight
- Viewing angle: >170°
- Power supply: 3.7 V (battery) / via USB-C
- Memory: 16 MB NOR Flash
- External storage: TF card slot (16 GB included)
- Microcontroller: RP2350A (dual-core, up to 150 MHz)
- Charging port: USB Type-C
- Charging controller: ETA6098
- DC-DC converter: MP28164
- Additional features: RTC, image change button, status indicators, auto shut-off
- Usage modes: desktop (stand) or wall-mounted (bracket)
- Operating time on one charge: up to several months in passive mode
Included in the set
- PhotoPainter (B) – 7.3" e-paper display with frame ×1
- 3.7 V 1800 mAh lithium-ion battery ×1
- 16 GB TF card ×1
- USB Type-A to Type-C cable (~1 m) ×1
- Wall mount (2 pcs, 1 pre-installed) ×1
- Case opening tool ×1
1197657
Data sheet
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 7,3
- Resolution
- 800 x 480 px
- Interface
- USB typ C
- Touch
- No
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
