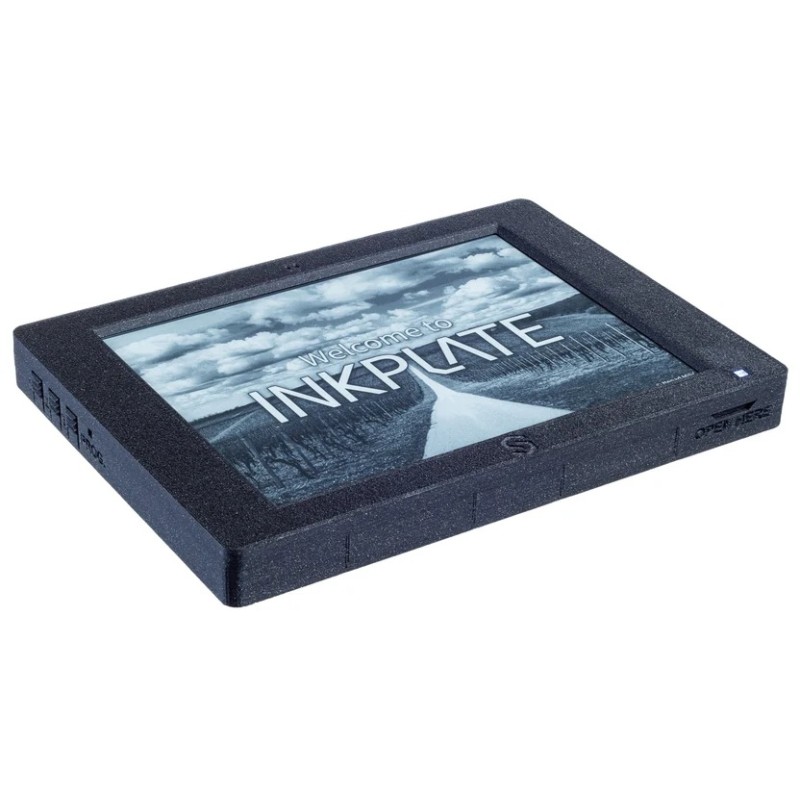

Angled view with enclosure
search
  • Angled view with enclosure

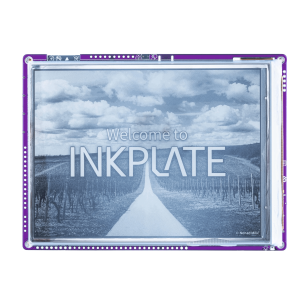

  • Top view
  • Enclosure USB-C and power switch
  • Enclosure side view
  • Enclosure side buttons
  • PCB Board USB-C
  • PCB Board microSD
ID: 1208340
zł870.85
Tax included

zł708.01 tax excl.

Programmable module with a 6-inch 1024 × 758px e-paper display supporting 16 grayscale levels and partial refresh in approximately 91ms. Powered by an STM32H743ZIT6 with an ESP32-C3 co-processor for WiFi and Bluetooth, and equipped with microSD, RTC, Qwiic and multiple onboard sensors. Version with enclosure and 1200mAh Li-Ion battery. Soldered 333324

24h
Available
Available quantity: 1

Description

The device Inkplate 6MOTION by Soldered is a programmable module featuring a 6-inch e-paper display with a resolution of 1024 × 758px and a pixel density of 212PPI. It supports 4-bit grayscale with 16 shades, while a partial refresh takes approximately 91ms, allowing refresh rates of up to around 11FPS. A full refresh takes approximately 500ms in black-and-white mode and 800ms in grayscale mode.

The main controller is an STM32H743ZIT6 with 2MB of Flash memory, 1MB of internal SRAM and 32MB of external DRAM. Wireless communication is handled by an ESP32-C3 co-processor providing WiFi and Bluetooth 5 LE. The board also includes a microSD card slot, RTC, USB-C connector, Qwiic/easyC connector and more than 30 GPIO lines supporting interfaces including I2C, SPI and UART.

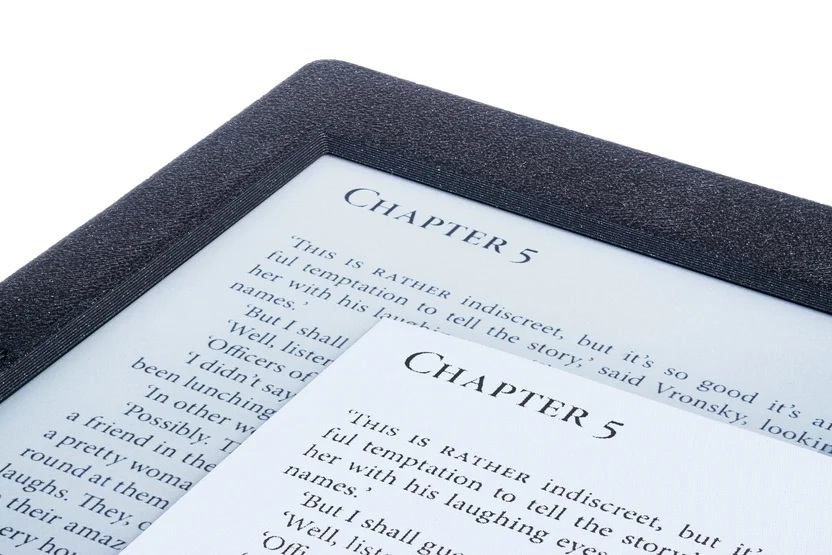

Soldered Inkplate 6MOTION - e-paper display detail

Inkplate 6MOTION integrates several onboard sensors, including an LSM6DSO32 accelerometer and gyroscope, an SHTC3 temperature and humidity sensor and an APDS-9960 gesture and proximity sensor. It also provides three user push buttons, a rotary encoder with an illuminated indicator and two programmable WS2812B RGB LEDs. Power consumption in low-power mode is approximately 22µA.

The 333324 version is supplied with a 3D-printed enclosure and a 3.7V 1200mAh Li-Ion battery. An onboard MCP73831 charger allows the battery to be charged through USB-C. The device measures approximately 161 × 116 × 15mm with the enclosure. The e-paper panel is reclaimed from e-book readers, so minor cosmetic marks may be present without affecting functionality.

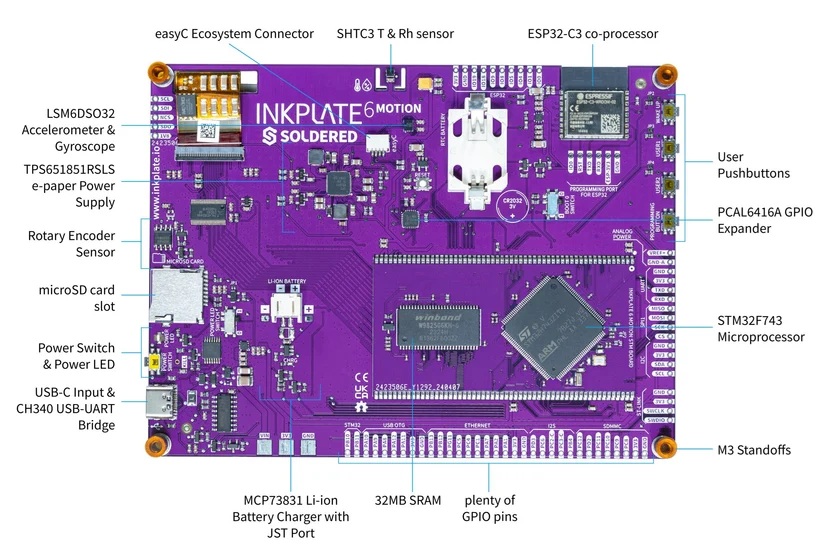

Soldered Inkplate 6MOTION - PCB hardware overview

Features

  • Display
    • Type: e-paper / E-Ink
    • Display diagonal: 6"
    • Resolution: 1024 × 758px
    • Pixel density: 212PPI
    • Grayscale: 4-bit, 16 shades
    • Partial refresh time: approximately 91ms
    • Maximum partial refresh rate: approximately 11FPS
    • Full black-and-white refresh: approximately 500ms
    • Full grayscale refresh: approximately 800ms
    • Touchscreen: no
    • Frontlight / backlight: no
  • Processor and memory
    • Main microcontroller: STM32H743ZIT6
    • Flash memory: 2MB
    • Internal SRAM: 1MB
    • External DRAM: 32MB
    • Wireless co-processor: ESP32-C3
  • Connectivity and interfaces
    • WiFi
    • Bluetooth 5 LE
    • microSD card slot
    • RTC
    • USB-C connector
    • Qwiic / easyC connector
    • More than 30 GPIO lines
    • I2C
    • SPI
    • UART
  • Sensors and controls
    • LSM6DSO32 accelerometer and gyroscope
    • SHTC3 temperature and humidity sensor
    • APDS-9960 gesture and proximity sensor
    • 3 x user push button
    • Rotary encoder with illuminated indicator
    • 2 x programmable WS2812B RGB LED
  • Power
    • Battery: 3.7V Li-Ion
    • Battery capacity: 1200mAh
    • Battery charger: MCP73831
    • USB-C battery charging
    • Low-power consumption: approximately 22µA
  • Mechanical parameters
    • 3D-printed enclosure
    • Dimensions with enclosure: 161 × 116 × 15mm
    • Reclaimed e-paper panel
    • Minor cosmetic marks may be present without affecting operation
  • Software
    • Arduino support
    • Open-source hardware and software
  • Additional information
    • Manufacturer: Soldered Electronics
    • Product code: 333324

Kit includes

  • Inkplate 6MOTION with 6" e-paper display
  • 3D-printed enclosure
  • 3.7V 1200mAh Li-Ion battery
  • USB-C to USB-C cable
  • Programming button tool stored inside the enclosure
1208340

Data sheet

Screen type
E-Ink/Epaper
Diagonal (inch)
6
Resolution
1024 x 758 px
Interface
SPI
Touch
No
