7.5" E-Ink e-Paper HAT Module 800x480 for Raspberry Pi - Waveshare 13504
ID: 581862
5906623424610
zł276.87
Tax included
zł225.10 tax excl.

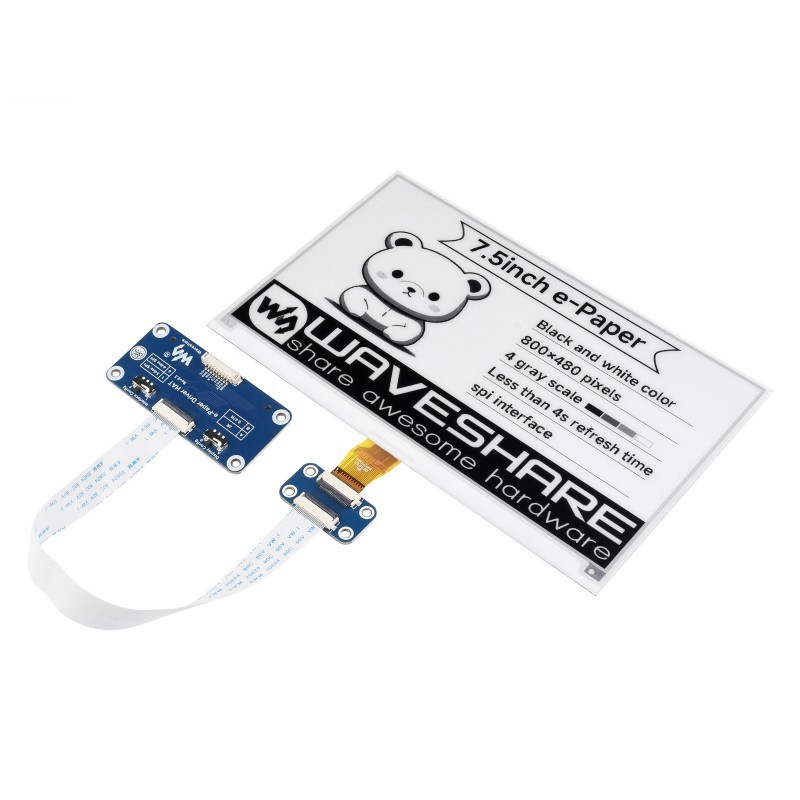

Module with e-Paper display, diagonal 7.5" and resolution 800×480px. Communication via SPI. Waveshare 7.5inch e-Paper HAT
Description
Module with an e-Paper display with a diagonal of 7.5 "and a resolution of 800 × 480 px. It has the ability to display content with a four-level gray scale and a partial refresh function. The built-in controller communicates via the SPI interface. Displays of this type are characterized by high contrast of the displayed image The module has a built-in voltage level converter, which makes it compatible with 3.3 V and 5 V systems. The kit includes an overlay that allows you to connect the display via a 40-pin connector. On the Wiki page is available support in the form of examples of use with Raspberry Pi, Jetson Nano, Arduino, STM32.
Features
- Diagonal 7.5"
- Resolution: 800 × 480 px
- Interface: SPI
- Spot size: 0.205 × 0.204
- Display color: black, white
- Grayscale: 4
- Full refresh time: 4 seconds
- Refresh power: 26,4mW (typ.)
- Standby power: <0.017 mW
- Viewing angle:> 170 °
- Voltage: 3.3V to 5V
- Outline dimensions: 170.2 x 111.2 mm
- Display dimensions: 163.2 x 97.92 mm
Kit includes
- Display e-Paper 7.5"
- e-Paper Driver HAT containing:
- E-Paper Driver HAT module
- FFC cable
- Board with two FFC connectors
- Set of brass spacers with screws
- JST PH2.0 8P cable
581862
Data sheet
- Compatible with
- Raspberry Pi 5/4/3/2/1 A/B, Zero/Zero 2 H/WH
- Screen type
- E-Ink/Epaper
- Diagonal (inch)
- 7,5
- Resolution
- 800 x 480 px
- Interface
- SPI
- Touch
- No
