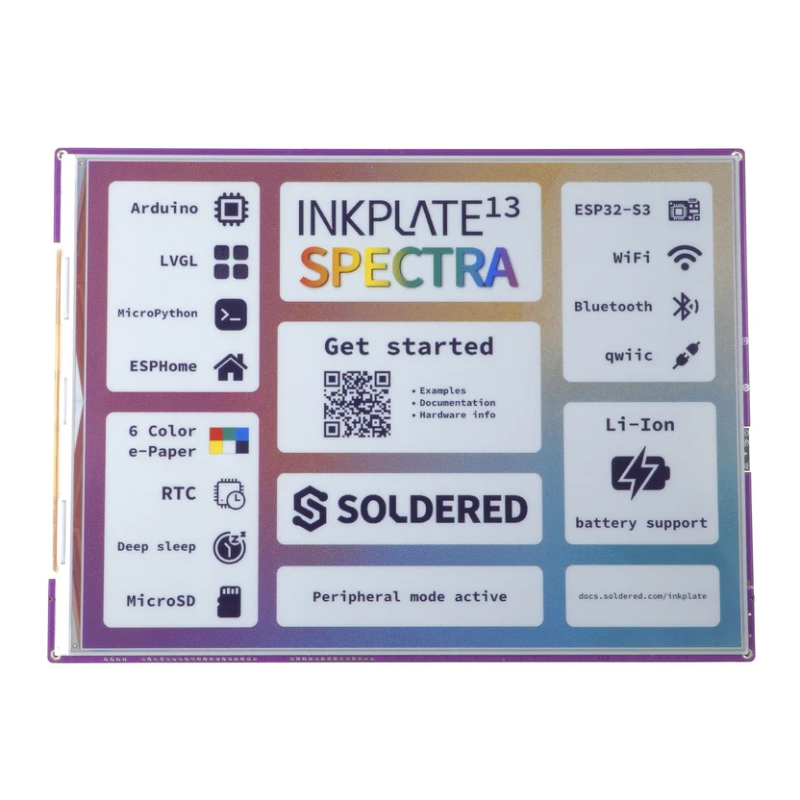

Soldered Inkplate 13SPECTRA - 13.3" Color e-Paper Display with Enclosure and Battery

Description

Inkplate 13SPECTRA features a 13.3" E-Ink Spectra 6 display with a resolution of 1600 x 1200 px, capable of displaying six colors: black, white, yellow, red, blue, and green. The board is powered by an ESP32-S3-WROOM-2-N32R16V with a dual-core Xtensa LX7 processor running at up to 240 MHz, 32 MB Flash, and 16 MB PSRAM. Wireless connectivity includes 2.4 GHz WiFi 802.11 b/g/n and Bluetooth 5 LE. A full color screen refresh takes approximately 19 seconds, making the board particularly suitable for information panels, calendars, digital photo frames, smart home dashboards, and other applications requiring a large display with periodic updates. The Arduino library supports dithering algorithms and Sparkle partial updates.

The board provides 3x Qwiic I2C connectors, a microSD card slot, a 16-line GPIO expander, and a PCF85063A RTC with CR2032 battery backup. USB-C is used for programming, serial communication, and battery charging, while deep sleep current consumption is approximately 14 µA. Supported development environments include Arduino IDE, MicroPython, ESP-IDF, LVGL, and ESPHome, allowing Inkplate to be used in standalone IoT devices and panels integrated with Home Assistant. Version 333366 includes a 3D-printed enclosure and a 3000 mAh Li-Ion battery. The device measures 300.7 x 224.8 x 14.7 mm with the display, enclosure, and battery.

Features

• Display type: E-Ink Spectra 6 color e-Paper
• Display size: 13.3"
• Resolution: 1600 x 1200 px
• Number of colors: 6
• Colors: black, white, yellow, red, blue, green
• Full refresh time: approximately 19 s
• Partial update: Sparkle, supported by the Arduino library
• Module: ESP32-S3-WROOM-2-N32R16V
• Processor: dual-core Xtensa LX7
• Clock frequency: up to 240 MHz
• Flash memory: 32 MB
• PSRAM: 16 MB
• WiFi: 802.11 b/g/n, 2.4 GHz
• Bluetooth: 5 LE
• Deep sleep current: approximately 14 µA
• Battery: 3.7 V Li-Ion, 3000 mAh
• Battery charging: onboard charging circuit
• Battery connector: JST
• RTC: PCF85063A
• RTC backup: CR2032 battery
• USB: USB-C
• USB-C functions: programming, serial communication, charging
• Expansion connectors: 3x Qwiic I2C
• Memory card slot: microSD
• GPIO expander: 16 lines + interrupt
• Controls: power and wake buttons
• Supported environments: Arduino IDE, MicroPython, ESP-IDF, LVGL, ESPHome
• Hardware and software: open source
• Enclosure: 3D-printed
• Dimensions with display, enclosure, and battery: 300.7 x 224.8 x 14.7 mm

Kit includes

• Inkplate 13SPECTRA with 13.3" e-Paper display
• 3D-printed enclosure
• 3000 mAh Li-Ion battery
• USB-C to USB-C cable
