reTerminal Sticky - 3.97" AI ePaper Display - Seeed Studio 100056818

Description

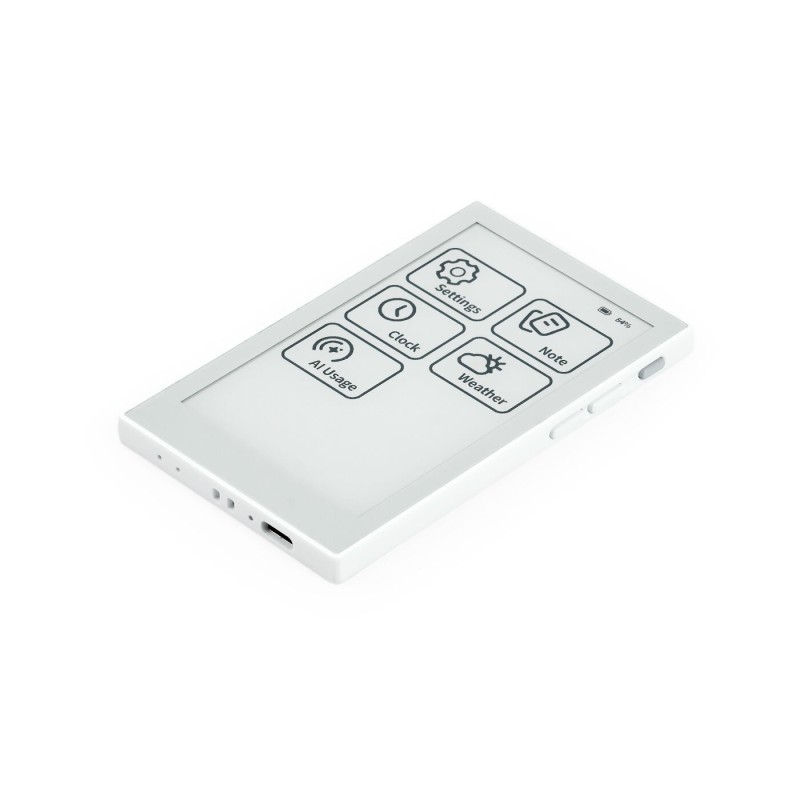

A smart device with a 3.97" touchscreen ePaper display and a resolution of 800 x 480 px, designed to show notes, reminders, weather information, time, and photos. The reTerminal Sticky features a built-in microphone and AI capabilities for creating notes and tasks using voice commands, while WiFi and Bluetooth LE connectivity enable configuration and remote device management. Its construction includes magnetic mounting, a 750 mAh battery, and a housing measuring just 7.3 mm thick, allowing the display to be attached to a refrigerator, metal board, or another surface using an appropriate magnetic mount. The device is suitable for use as a household information display, electronic notepad, or smart home interface.

AI-powered voice control allows users to create notes without typing on the screen. By holding down the voice button, users can dictate a reminder, message, or task, which the device recognizes and displays. The function is useful for organizing household chores, leaving information for family members, and creating task lists. Voice control currently officially supports English and Simplified Chinese, so recognition of commands in other languages, including Polish, is not guaranteed.

The ePaper display presents information without continuous screen backlighting, helping reduce power consumption while maintaining readability in daylight. The touchscreen interface provides access to built-in applications for notes, task lists, weather, clock, and photos. The reTerminal Sticky can serve as a reminder board in the kitchen, a household task schedule in the hallway, or an additional information display at a workstation.

The magnetic mounting system allows the device to be installed without drilling holes in walls. A built-in magnet enables attachment to ferromagnetic surfaces, while the included magnetic mounting ring with an adhesive backing facilitates installation in other locations. Measuring 106 x 65.5 x 7.3 mm and weighing 70 g, the device can be easily moved between locations. The integrated 750 mAh lithium battery is charged through a USB-C port, while 2.4 GHz WiFi and Bluetooth LE 5.0 provide connectivity and device configuration capabilities.

The Seeedash mobile app enables remote management of the reTerminal Sticky from an Android or iOS smartphone. Users can create notes, add reminders, upload photos, and modify the information shown on the display. The app also supports weather and clock configuration, as well as management of multiple devices. Once connected to a WiFi network, the reTerminal Sticky can receive content updates without maintaining a continuous Bluetooth connection to the phone.

During initial setup, the Seeedash app enables Bluetooth pairing and configuration of a 2.4 GHz WiFi connection. Additional tools for creating and publishing custom content are available through the Seeedash Web platform. The manufacturer also provides a reTerminal Sticky Quick Start Guide covering device configuration, touchscreen operation, voice features, and the mobile app.

The reTerminal Sticky also supports alternative firmware installation, extending its functionality beyond a standard digital notepad. After changing the firmware, the device can operate as an e-book reader using CrossPoint, display information through TRMNL BYOD, or function as a smart home panel using ESPHome and OpenDisplay. Available features depend on the selected software, and installing alternative firmware requires following the appropriate installation procedure. The Sticky Playground documentation provides information about additional software environments and supported projects.

The device features 32 MB of Flash memory and a microSD card slot for compatible software and extensions. Its operating temperature range is 0°C to 45°C. The reTerminal Sticky is supplied with a USB-C charging cable and a magnetic mounting ring. Its design supports everyday information management as well as experimentation with ePaper interfaces and smart home applications.

Features

• Technical specifications
  • Manufacturer: Seeed Studio
  • Model: reTerminal Sticky
  • Product type: smart ePaper display with AI features
  • Display size: 3.97"
  • Display technology: ePaper
  • Display type: monochrome
  • Resolution: 800 x 480 px
  • Touchscreen: yes
  • Flash memory: 32 MB
  • Supported memory cards: microSD
  • Microphone: 1x built-in
  • Battery: 750 mAh lithium battery
  • Charging port: USB-C
  • Wireless connectivity: 2.4 GHz WiFi, Bluetooth LE 5.0
  • Dimensions: 106 x 65.5 x 7.3 mm
  • Weight: 70 g
  • Operating temperature: 0°C to 45°C
  • Mounting method: built-in magnet
• Functions and operation
  • Voice-controlled creation of notes and reminders
  • AI-powered speech recognition
  • Officially supported voice feature languages: English and Simplified Chinese
  • Notes and task list management
  • Weather and time display
  • Display of photos and prepared graphics
  • Touchscreen and physical button controls
  • Remote management through the Seeedash app
  • Mobile app compatibility: Android and iOS
  • Content configuration and publishing through Seeedash Web
  • Bluetooth pairing with the mobile app
  • 2.4 GHz WiFi network connectivity
  • Remote content updates
  • Management of multiple devices through the app
• Construction and power supply
  • Monochrome ePaper display without backlighting
  • Integrated 750 mAh lithium battery
  • Charging via USB-C
  • Built-in magnet for mounting on ferromagnetic surfaces
  • Mounting using the included magnetic ring
  • Housing thickness: 7.3 mm
  • Compact design suitable for installation on walls or household surfaces
• Software and expansion
  • Standard firmware with Seeedash support
  • Support for installing alternative firmware
  • CrossPoint support after installing compatible software
  • Can be used as an e-book reader
  • TRMNL BYOD support after changing the firmware
  • Home Assistant integration through ESPHome or OpenDisplay
  • microSD card support
  • Manufacturer documentation for device installation and configuration

Kit Includes

• 1x reTerminal Sticky ePaper display
• 1x USB-C cable
• 1x magnetic mounting ring with adhesive backing
