TSL2585 sensor breakout for ambient light measurement, UVA detection in the 315–400nm range and light flicker sensing. It provides Photopic, IR and UVA channels, programmable gain up to 4096×, up to 20-bit resolution and I2C communication through STEMMA QT / Qwiic connectors. Adafruit 6524

24h
Available
Available quantity: 4
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

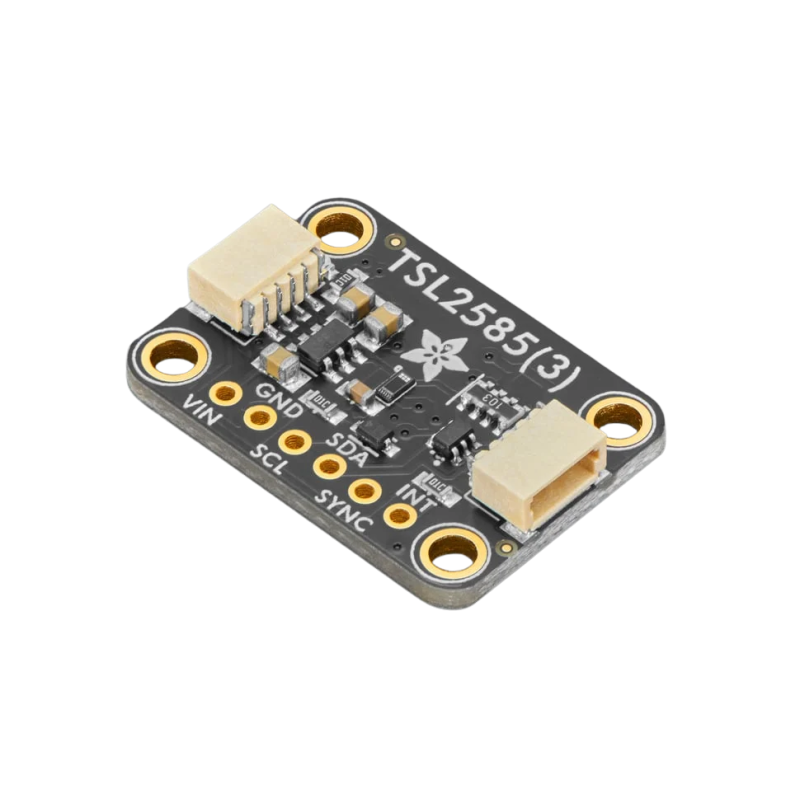

The light sensor breakout Adafruit TSL2585 uses the TSL2585 device from ams OSRAM for concurrent ambient light sensing, UVA measurement and light flicker detection. The sensor integrates a Photopic channel with a response approximating the human eye, an independent IR channel and a 315–400nm UVA channel. The module can be used for outdoor light monitoring, UV lamp analysis, LED lighting measurements and automatic display brightness control.

The measurement path uses three modulators and provides resolution up to 20 bits. Programmable gain reaches 4096×, while adjustable integration time allows sensitivity to be matched to lighting conditions. The device manufacturer specifies detection down to approximately 1mlux. TSL2585 also supports light flicker measurement with sampling rates up to 14kHz.

Communication is provided through I2C at bus speeds up to 1MHz. The Adafruit breakout includes STEMMA QT / Qwiic connectors for solderless connection to compatible development boards. VIN, GND, SDA, SCL, SYNC and INT signals are also available on the board. Arduino and CircuitPython/Python libraries are available from Adafruit.

The ambient light output is provided as raw measurement data and is not factory calibrated in lux. The UVA channel includes a factory calibration factor used to correct the raw measurement, but the result is not directly expressed in µW/cm². The device operating temperature range is -30 to 85°C.

Features

  • Sensor
    • Device: TSL2585
    • Device manufacturer: ams OSRAM
    • Ambient light sensing
    • Photopic channel
    • Independent IR channel
    • UVA channel: 315–400nm
    • Light flicker detection
  • Measurement system
    • Resolution: up to 20 bits
    • Maximum gain: 4096×
    • Modulators: 3
    • Sampling rate: up to 14kHz
    • Minimum detectable illuminance: approximately 1mlux
    • Programmable integration time
  • Interfaces
    • Communication interface: I2C
    • Maximum I2C speed: 1MHz
    • Connectors: STEMMA QT / Qwiic
    • Signals: VIN, GND, SDA, SCL, SYNC, INT
  • UVA measurement
    • Spectral range: 315–400nm
    • Factory UVA calibration factor
    • Output is not directly provided in µW/cm²
  • Ambient light measurement
    • Raw count output
    • Not factory calibrated in lux
  • Supported environments: Arduino, CircuitPython/Python
  • Operating temperature: -30 to 85°C
  • Module dimensions: approximately 25.5 × 18 × 5mm
  • Weight: approximately 3.6g
  • Manufacturer: Adafruit
  • Product ID: 6524
