Gravity: AS7341 11-Channel Visible Light Sensor
ID: 582520
5906623406692
zł98.17
Tax included
zł79.81 tax excl.
Module with an 11-channel AS7341 sensor that allows the detection of light in various wavelength ranges (color detection). It is equipped with a Gravity connector and communicates via the I2C interface. DFRobot SEN0364
Description
Module with an 11-channel AS7341 sensor that allows the detection of light in various wavelength ranges (color detection). The sensor has eight visible light channels, one near infrared channel, and one unfiltered channel. In addition, it integrates a dedicated channel for detecting ambient light flicker. Besides, this sensor is equipped with 6 independent 16-bit ADC channels for parallel data processing. The two built-in ultra-bright LEDs can glow in a dark environment. The module is equipped with a Gravity connector and communicates via the I2C interface. Full documentation is available on the product Wiki page.
Features
- Visible light detection range:
- F1 (405-425nm)
- F2 (435-455nm)
- F3 (470-490nm)
- F4 (505-525nm)
- F5 (545-565nm)
- F6 (580-600nm)
- F7 (620 -640nm)
- F8 (670-690nm)
- I2C interface
- I2C address: 0x39
- Power supply: 3.3 V to 5 V
- Current consumption (LED off): <5mA
- LED driving current: class 1-20 (4-42mA)
- Operating temperature range: -30 ℃ to 85 ℃
- Operating humidity range: 5% RH to 85% RH
- Dimensions: 22 x 20 mm
Kit contains
- Gravity: AS7341 11-Channel Visible Light Sensor
- Gravity cable
582520
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like

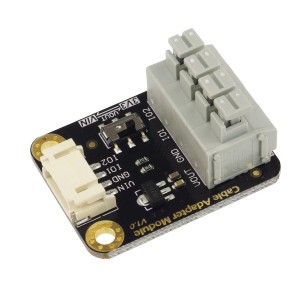

Module 4-pin sensor adapter. DFRobot FIT0511
