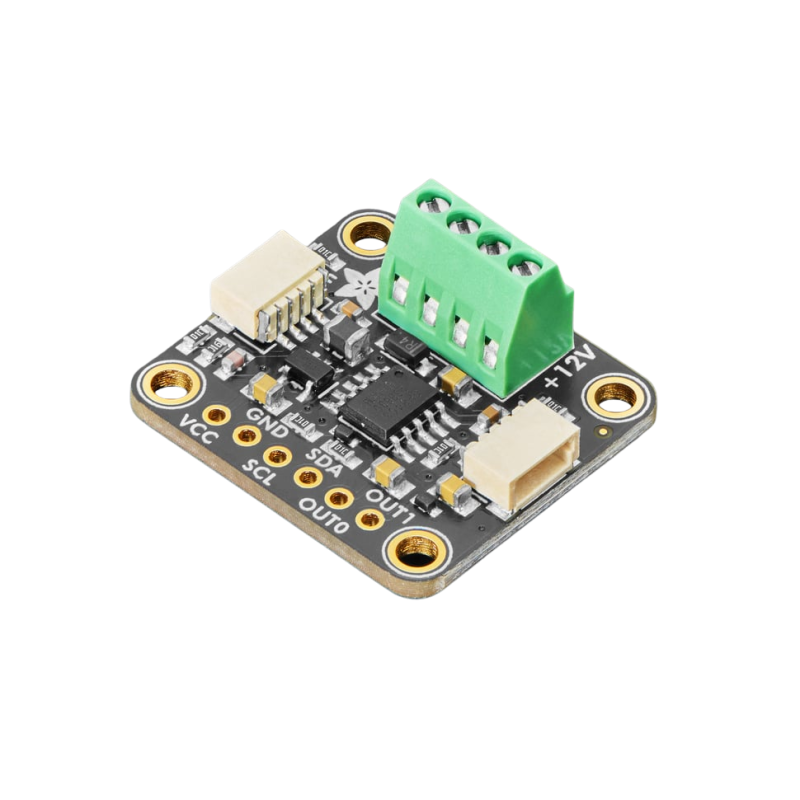

Main view
search
  • Main view
  • Top view
  • Kit view
  • Bottom view
ID: 1210190
zł40.17
Tax included

zł32.66 tax excl.

Dual-channel GP8403 DAC breakout with 12-bit resolution and two independent 0–5V or 0–10V analog outputs controlled over I2C. The board includes a 12V / 100mA boost output, non-volatile memory, STEMMA QT / Qwiic connectors and support for 3.3V and 5V logic. Adafruit 6516

24h
Available
Available quantity: 4
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

The digital-to-analog converter breakout Adafruit GP8403 Breakout Board uses the GP8403 device to generate two independent analog voltages controlled through I2C. The DAC provides 12-bit resolution and supports 0–5V or 0–10V output ranges. The module can be used for reference-voltage generation, analog control inputs, operational amplifier circuits and devices requiring control voltages above standard 3.3V or 5V logic levels.

An integrated boost converter generates 12V, which is also available as an auxiliary output capable of supplying approximately 100mA. Each DAC channel can generate a 0–5V or 0–10V output from a digital value between 0x000 and 0xFFF. Typical output voltage error is 0.2%, while typical linearity error is 0.1%.

Three address jumpers, A0, A1 and A2, allow up to 8 modules to share one I2C bus, providing as many as 16 analog outputs. The board supports both 3.3V and 5V logic. Two STEMMA QT / Qwiic connectors provide solderless I2C connection, while a 4-pin 2.5mm terminal block provides access to the outputs.

The GP8403 includes non-volatile memory, allowing the device to start with a previously stored output-voltage setting. Writing the NVM requires bit-banging of the I2C lines, so compatibility of this function should be verified for the target platform. Arduino and Python/CircuitPython libraries and examples are available from Adafruit.

The DAC outputs include 10µF capacitors, making the module better suited for control voltages, bias generation and slowly changing analog signals than for generating high-speed periodic waveforms. The device also includes output short-circuit protection.

Features

  • DAC
    • Device: GP8403
    • Type: digital-to-analog converter
    • Number of channels: 2
    • Resolution: 12-bit
    • Digital input range: 0x000–0xFFF
    • Output voltage range: 0–5V or 0–10V
    • Typical output voltage error: 0.2%
    • Typical linearity error: 0.1%
  • Interface
    • Communication interface: I2C
    • Connectors: STEMMA QT / Qwiic
    • Logic levels: 3.3V / 5V
    • Address jumpers: A0, A1, A2
    • Maximum modules per I2C bus: 8
    • Maximum outputs with 8 modules: 16
  • Power and boost converter
    • Integrated boost converter
    • Auxiliary output: 12V
    • Maximum 12V output current: approximately 100mA
  • Memory
    • Non-volatile memory
    • Stored output-voltage setting can be restored after restart
    • NVM programming requires I2C bit-banging
  • Outputs
    • 2 independent analog outputs
    • Output capacitors: 10µF
    • Short-circuit protection to GND
  • Startup time: <2ms
  • Operating temperature: -40 to 85°C
  • Terminal block: 4-pin, 2.5mm pitch
  • Mounting holes: 4
  • Dimensions: approximately 25.5 × 22.8 × 12mm
  • Weight: approximately 3.6g
  • Supported environments: Arduino, Python/CircuitPython
  • Manufacturer: Adafruit
  • Product ID: 6516

Kit includes

  • 1 × Adafruit GP8403 Breakout Board
  • 1 × 1 × 6 male header, 2.54mm pitch
