ESP32-P4 development board with 3.4-inch 800x800 touch display, WiFi and Bluetooth - Waveshare 31523
ID: 1198963
zł307.28
Tax included
zł249.82 tax excl.
ESP32-P4-WIFI6-Touch-LCD-3.4C development board with a 3.4-inch AMOLED display, Wi-Fi 6 and Bluetooth 5 (LE) support, two microphones with echo cancellation, and hardware security features. A solution for AI, HMI, and IoT projects requiring high performance and precise touch interaction.
Description

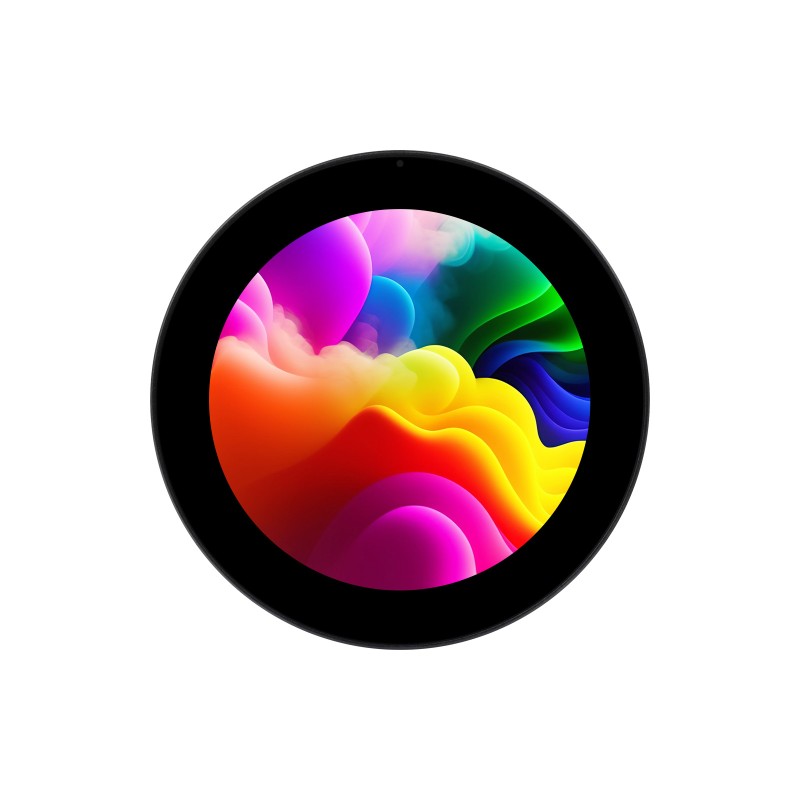

Development board featuring a 3.4-inch round AMOLED display with a resolution of 800×800, based on the ESP32-P4 chip with RISC-V cores, designed for human-machine interaction, environmental monitoring, audio systems, and IoT control applications. The touch panel supports 10-point capacitive touch and is covered with 6H tempered glass using optical bonding technology. It offers a wide 170° viewing angle, high contrast ratio of 1200:1, and brightness of 300 cd/m². The ESP32-C6-MINI module provides Wi-Fi 6 and Bluetooth 5 (LE) support via SDIO interface. Onboard are two microphones with echo cancellation, an ES8311 audio codec, MIPI-CSI camera interface, USB OTG port, TF card slot, speaker connector, and a 40-pin GPIO header partially compatible with Raspberry Pi extensions (adapter required). The device supports AI voice functions, voice platforms, hardware encryption, Secure Boot, and Flash Encryption.
Features
- Display: 3.4″ round AMOLED
- Resolution: 800×800
- Viewing angles: 170°
- Contrast: 1200:1
- Brightness: 300 cd/m²
- Surface: 6H tempered glass, optical bonding
- Processor: ESP32-P4, RISC-V 32-bit (dual-core + single-core)
- Memory: 32 MB PSRAM, 32 MB NOR Flash
- Touch: capacitive, 10-point (GT9271)
- Connectivity: Wi-Fi 6, Bluetooth 5 (LE) – ESP32-C6-MINI (SDIO interface)
- Interfaces: MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO TF, I²C, UART
- Audio: 2× microphones (with EC), ES8311 audio codec, PH 2.0 speaker connector
- GPIO: 40-pin header compatible with selected Raspberry Pi HATs
- Security: Secure Boot, Flash Encryption, TRNG, access protection
- Dimensions: 115.0 × 115.0 mm
- Display area: 87.6 × 87.6 mm
Included in the set
- ESP32-P4-WIFI6-Touch-LCD-3.4C ×1
- 4-pin cable ×2
- Speaker ×1
1198963
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
