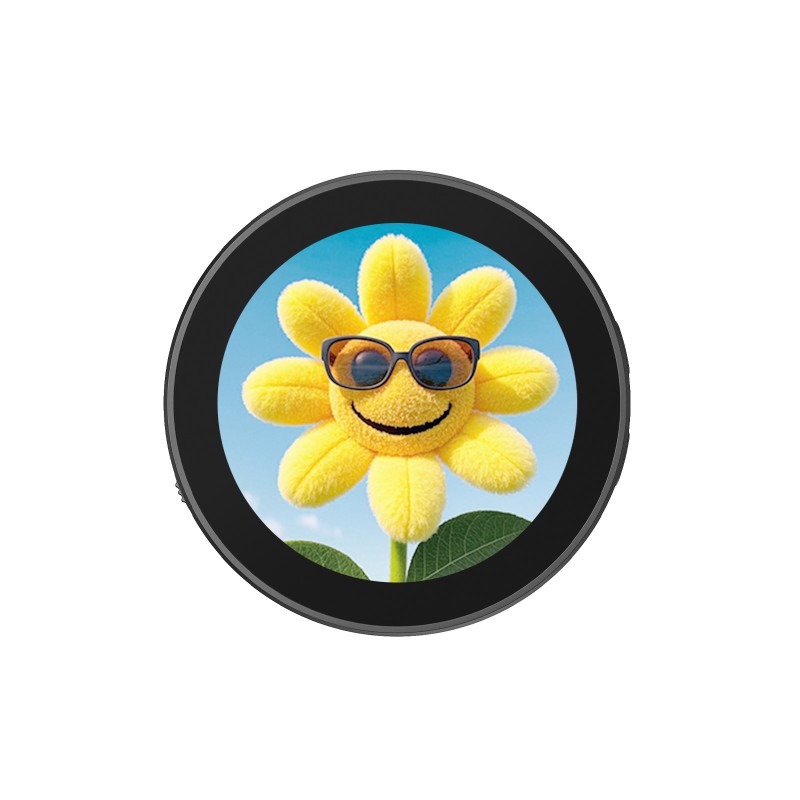

ESP32-S3 round LCD development board 1.85″ 360×360 with speaker - Waveshare 30683
ID: 1197726
5902186305182
zł146.58
Tax included
zł119.17 tax excl.
ESP32-S3-Touch-LCD-1.85C is a complete solution for implementing projects with a graphical user interface, touch control, and audio processing. Thanks to its compact design and support for AI functions, the device is suitable for smart control terminals, portable HMI systems, and speech recognition applications.
Description
Development module with a 1.85-inch IPS display at a resolution of 360 × 360 pixels. Equipped with the ESP32-S3R8 chip supporting 2.4 GHz Wi-Fi and Bluetooth 5 LE. It features capacitive touch via I2C and audio functions including a built-in microphone, audio decoder, and speaker connector. Additional integrated peripherals include an RTC, microSD slot, USB Type-C port, and GPIO interfaces. Designed for HMI applications, AI-based voice-controlled devices, and speech recognition platform integration.
Features
- 1.85" IPS display, 360 × 360 resolution, 262K colors, wide viewing angle
- Capacitive touch, I2C interface with interrupt support
- ESP32-S3R8, 32-bit LX7 dual-core processor, up to 240 MHz
- 512 KB SRAM, 384 KB ROM, 16 MB Flash, 8 MB PSRAM
- Connectivity: Wi-Fi 802.11 b/g/n and Bluetooth 5 (LE), ceramic antenna with IPEX connector
- PCM5101 audio decoder, microphone, audio amplifier, volume control knob
- TF card slot, RTC chip PCF85063, RTC battery connector
- 3.7 V battery connector (MX1.25), supports charging/discharging, charging indicator
- USB Type-C port (power and data), UART, I2C, 28 GPIO pins
- Battery power support and ON/OFF functionality
- RESET and BOOT buttons, LED indicators
Included
- ESP32-S3-Touch-LCD-1.85C x1
- SH1.0 4PIN cable (~100 mm) x2
- Speaker 8 Ω 2 W x1
