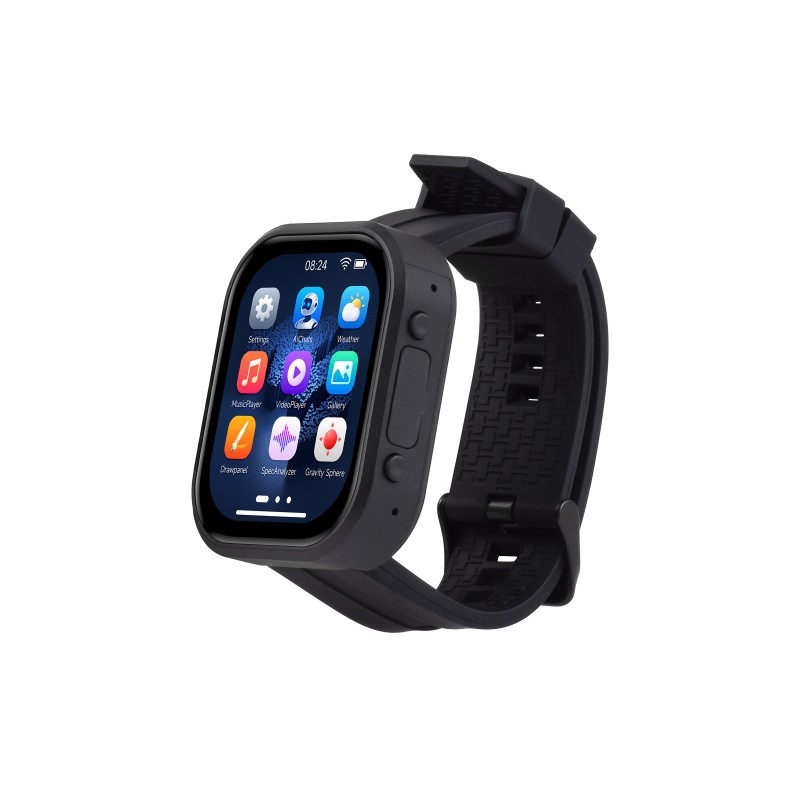

Smartwatch-type development board based on the ESP32-S3 microcontroller, equipped with a 2.06 inch AMOLED touchscreen display with 410 x 502 resolution, a 32-bit dual-core LX7 processor, QSPI interface and an onboard dual digital microphone. Display version without MX1.25 lithium battery. Waveshare ESP32-S3-Touch-AMOLED-2.06-EN

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

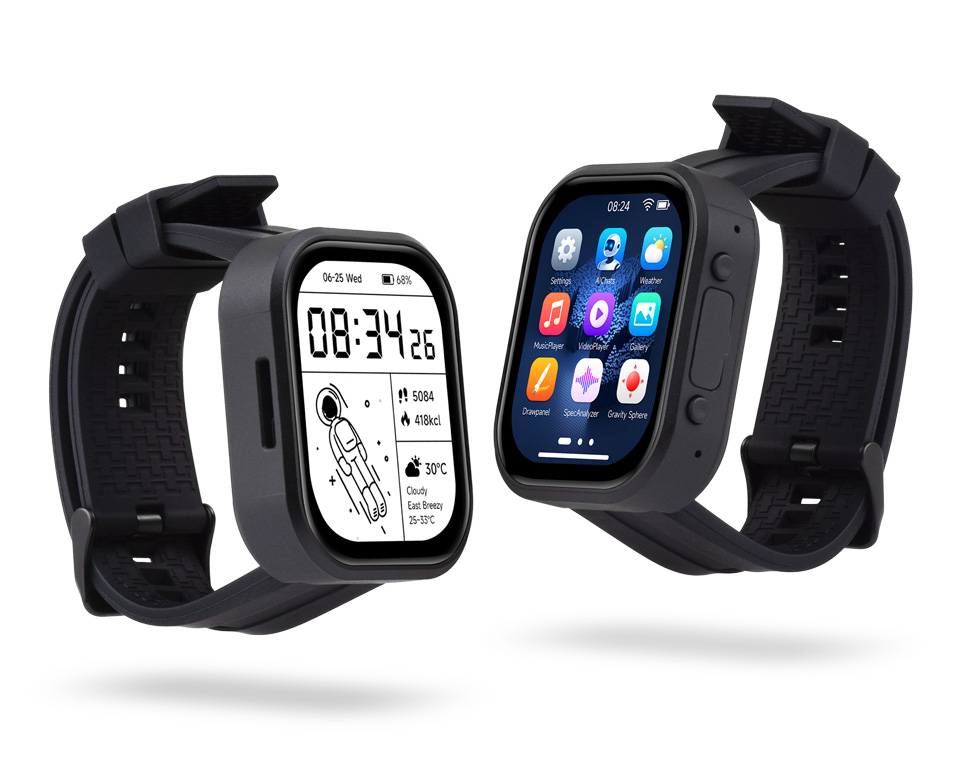

The Waveshare 31958 development board is designed for smartwatch, wearable and compact HMI projects requiring high computing performance, touch input support and multimedia integration. The ESP32-S3R8 microcontroller with a dual-core 32-bit LX7 architecture and clock frequency up to 240 MHz enables the implementation of communication, interactive and data-processing applications in wearable devices.

p1199741-ESP32-S3-Touch-AMOLED-2.06-details-1.jpgp1199741-ESP32-S3-Touch-AMOLED-2.06-details-3.jpg

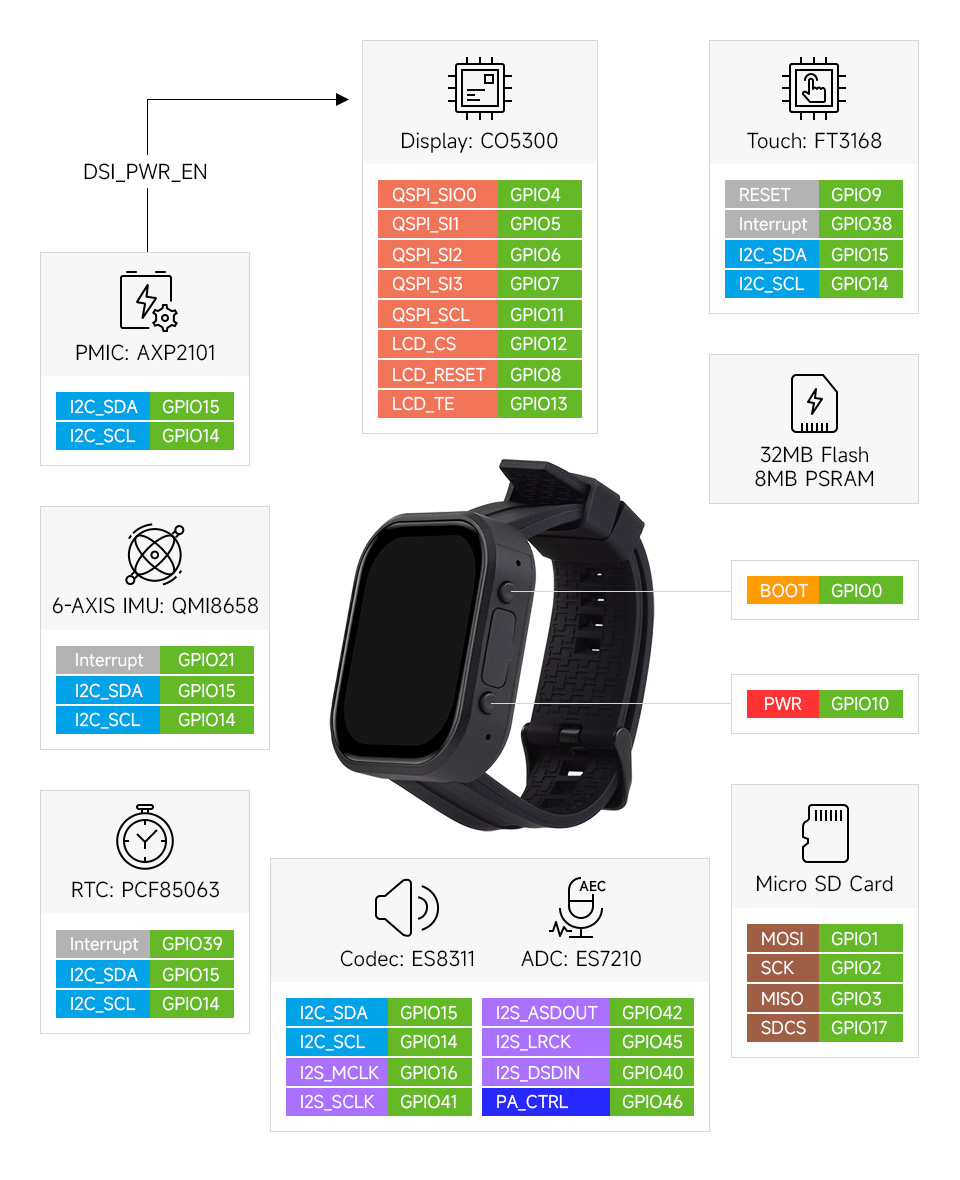

The board integrates a 2.06 inch AMOLED touchscreen display with a resolution of 410 x 502, supporting 16.7 million colors. The display is driven by the CO5300 controller using the QSPI interface, while touch input is handled by the FT3168 controller via I2C, allowing efficient use of the microcontroller GPIO resources.

The board is equipped with a QMI8658 6-axis IMU for motion and orientation detection and a PCF85063 RTC with battery backup support, suitable for applications requiring precise timekeeping. The onboard ES8311 audio codec and ES7210 circuit enable audio input and output, while the dual digital microphone supports sound capture in voice-based applications.

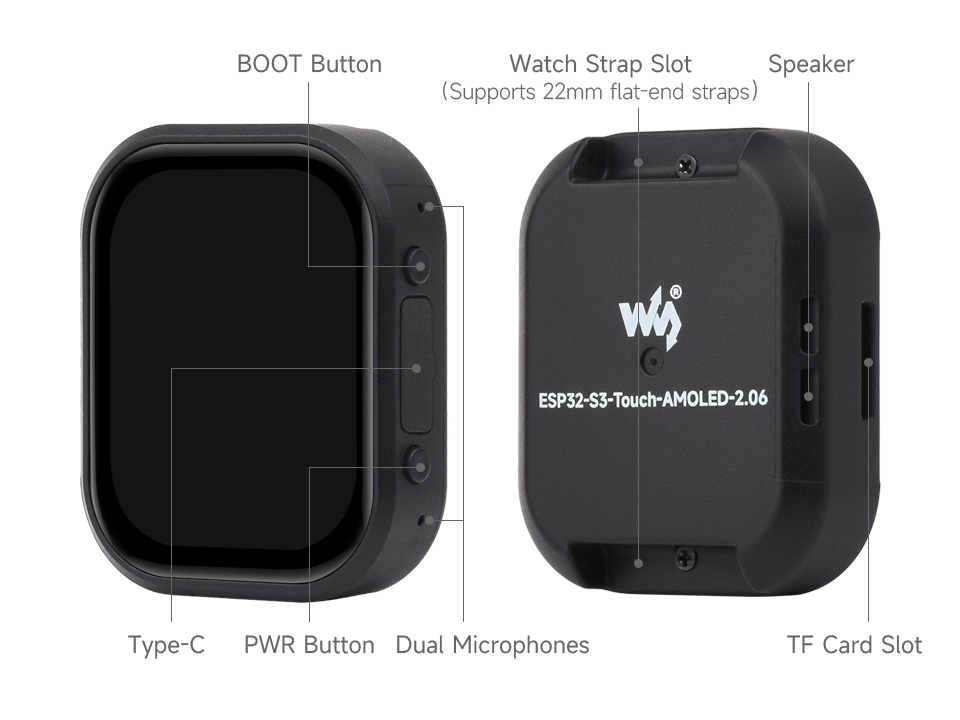

Power management is handled by the AXP2101 IC, supporting battery charging, monitoring and multiple voltage outputs. The ESP32-S3-Touch-AMOLED-2.06-EN version does not include an MX1.25 lithium battery in the kit, allowing flexible power source selection. The enclosure with detachable watch straps provides a smartwatch-like form factor and supports ergonomic testing of prototypes.

p1199741-ESP32-S3-Touch-AMOLED-2.06-details-intro.jpgp1199741-ESP32-S3-Touch-AMOLED-2.06-details-inter.jpg

Features

  • Microcontroller: ESP32-S3R8
  • Architecture: 32-bit LX7, dual-core
  • Clock frequency: up to 240 MHz
  • Wireless connectivity: 2.4 GHz Wi-Fi 802.11 b/g/n, Bluetooth 5 LE
  • SRAM: 512 kB
  • ROM: 384 kB
  • PSRAM: 8 MB
  • Flash memory: 32 MB
  • Display: AMOLED
  • Display size: 2.06 inch
  • Resolution: 410 x 502
  • Color depth: 16.7 M
  • Display interface: QSPI
  • Display driver: CO5300
  • Touch panel: capacitive
  • Touch controller: FT3168
  • IMU: QMI8658, 3-axis accelerometer, 3-axis gyroscope
  • RTC: PCF85063
  • Audio: ES8311 codec, ES7210 circuit, dual digital microphone
  • Power management: AXP2101
  • Battery connector: MX1.25
  • Power supply: USB Type-C
  • Additional interfaces: I2C, UART, USB pads
  • Applications: smartwatch, wearable, HMI, IoT
