ESP32-S3 development board with 1.47-inch IPS touch display, Wi‑Fi and BLE 5 - Waveshare 31202
ID: 1198945
5902186308657
zł67.17
Tax included
zł54.61 tax excl.

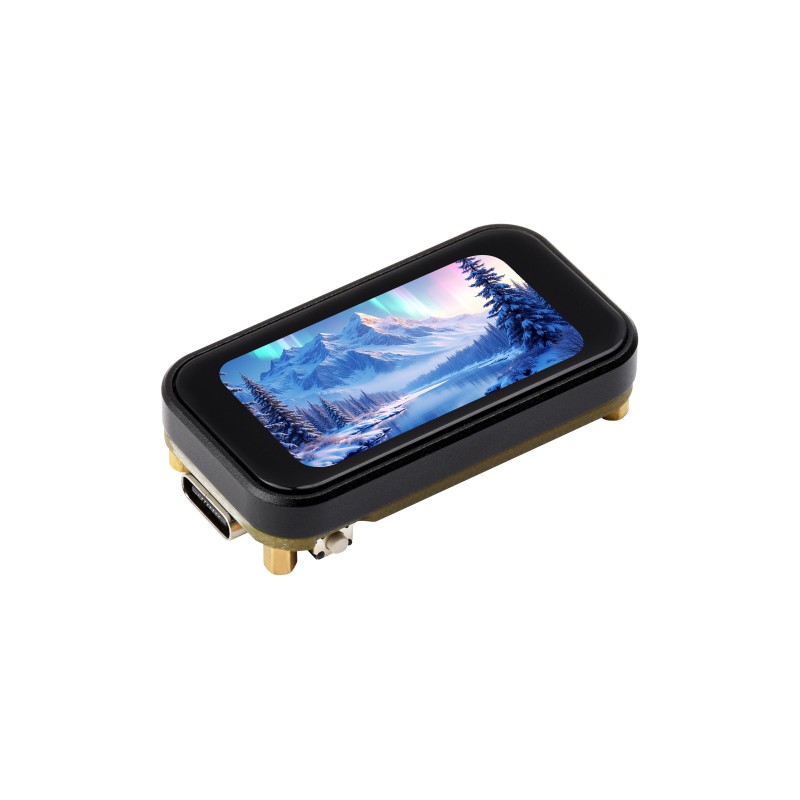

ESP32-S3-Touch-LCD-1.47 is a compact development board with an IPS display and ESP32-S3 microcontroller, equipped with Wi-Fi and Bluetooth as well as Flash and PSRAM memory. The version without pre-soldered pin headers allows flexible integration into IoT and HMI projects, ensuring smooth handling of graphical interfaces and wireless communication.
Description
ESP32-S3-Touch-LCD-1.47 is a development board based on the ESP32-S3R8 chip with a dual-core Xtensa LX7 processor running up to 240 MHz. The module features a 1.47-inch IPS display with a resolution of 172×320 pixels and 262k colors, with capacitive touch support. With built-in 16 MB Flash and 8 MB PSRAM, the board enables running advanced graphical interfaces, such as those based on the LVGL library.
The device provides 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 LE/Mesh connectivity, as well as a range of peripheral interfaces available through GPIO pins. Onboard are a TF card slot, USB-C port, BOOT and RESET buttons, and an LDO regulator. The standard version is supplied without pre-soldered pin headers, allowing flexible adaptation to project requirements.
Properties
- Microcontroller: ESP32-S3R8, Xtensa LX7 dual-core, up to 240 MHz
- Memory: 512 KB SRAM, 384 KB ROM, 16 MB Flash, 8 MB PSRAM
- Display: 1.47" IPS, 172×320 resolution, 262k colors
- Display driver: JD9853, touch controller AXS5106L
- Interfaces: SPI (4-wire) for display, I2C for touch
- Connectivity: Wi-Fi 2.4 GHz (802.11 b/g/n), Bluetooth 5.0 LE, BLE Mesh
- TF card slot for file and data storage
- USB-C port for programming, communication, and power supply
- Buttons: BOOT and RESET
- Regulator: ME6217C33M5G LDO, 800 mA
- Support for low-power operating modes
- Expansion via GPIO (headers for self-soldering)
- Dimensions: 44.50 × 24.55 × 10.60 mm
Included in the set
- ESP32-S3-Touch-LCD-1.47 ×1
- Pin headers (unsoldered) ×2
1198945
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
