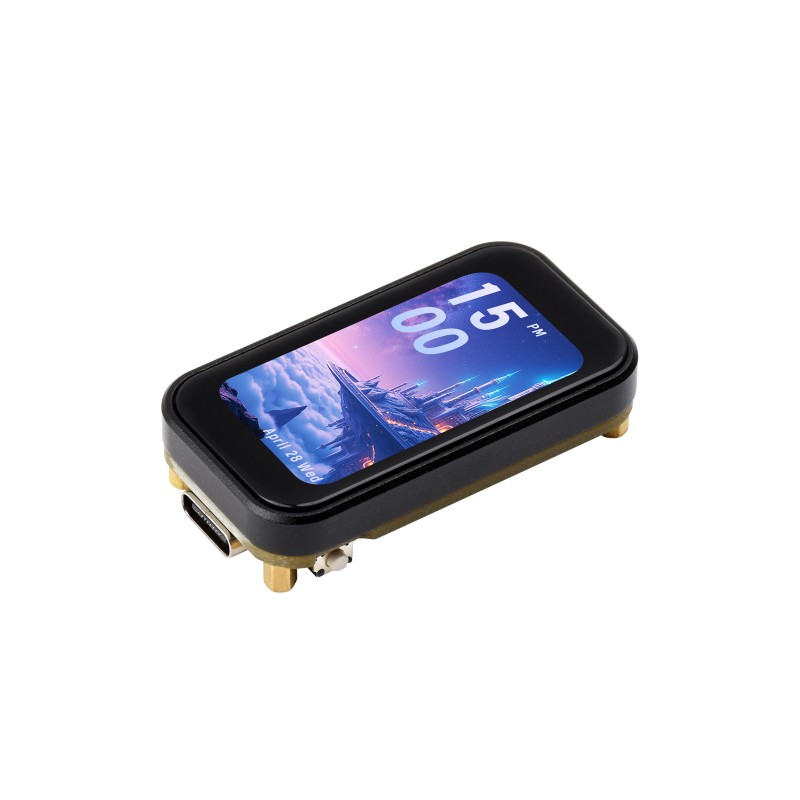

ESP32-C6-Touch-LCD-1.47 is a development board with a touch IPS display and ESP32-C6 chip, providing Wi-Fi 6, Bluetooth 5, and a rich set of peripherals. The standard version without pre-soldered pin headers allows flexible integration into IoT, HMI, and mobile applications.

24h
Available
Available quantity: 3
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

ESP32-C6-Touch-LCD-1.47 is a compact development board based on the ESP32-C6FH8 chip, equipped with a dual-core RISC-V processor (main 160 MHz, auxiliary 20 MHz) with support for Wi-Fi 6 (802.11 ax/b/g/n) and Bluetooth 5 LE/Mesh. The integrated 1.47-inch IPS touchscreen display with a resolution of 172×320 pixels supports 262k colors and enables smooth operation of graphics libraries such as LVGL, making the module an ideal solution for HMI projects and IoT devices.

The board includes a TF card slot, 6-axis QMI8658 sensor (accelerometer and gyroscope), BOOT and RESET buttons, and a USB-C port for power and programming. The standard version is supplied without pre-soldered pin headers, allowing flexible customization of mounting and integration with other modules.

Properties

  • Microcontroller: ESP32-C6FH8, 32-bit RISC-V dual-core (160 MHz + 20 MHz)
  • Memory: 320 KB ROM, 512 KB HP SRAM, 16 KB LP SRAM, 8 MB Flash
  • Display: 1.47" IPS, 172×320 resolution, 262k colors
  • Display driver: JD9853, touch controller AXS5106L
  • Display interface: SPI, touch interface: I2C
  • Connectivity: Wi-Fi 6 (2.4 GHz, 802.11 ax/b/g/n), Bluetooth 5 LE, BLE Mesh
  • IMU sensor: QMI8658 (3-axis accelerometer + 3-axis gyroscope)
  • TF card slot for data storage
  • USB-C port for programming and power
  • Buttons: RESET and BOOT
  • Regulator: ME6217C33M5G (LDO, 800 mA)
  • Low-power modes supported (energy-saving operation)
  • Dimensions: 44.50 × 24.55 × 10.60 mm

Included in the set

  • ESP32-C6-Touch-LCD-1.47 ×1
  • Pin headers (unsoldered) ×2
