ESP32-S3 development board with 1.69″ display 240×280 - Waveshare 27932
ID: 1197404
5902186305878
zł74.78
Tax included
zł60.80 tax excl.
ESP32-S3-LCD-1.69 is a versatile development board for IoT projects, portable applications, and user interfaces. Its integrated display, wireless communication, motion sensors, and advanced power options make it an excellent platform for rapid prototyping and deployment of smart solutions using the ESP32-S3.
Description

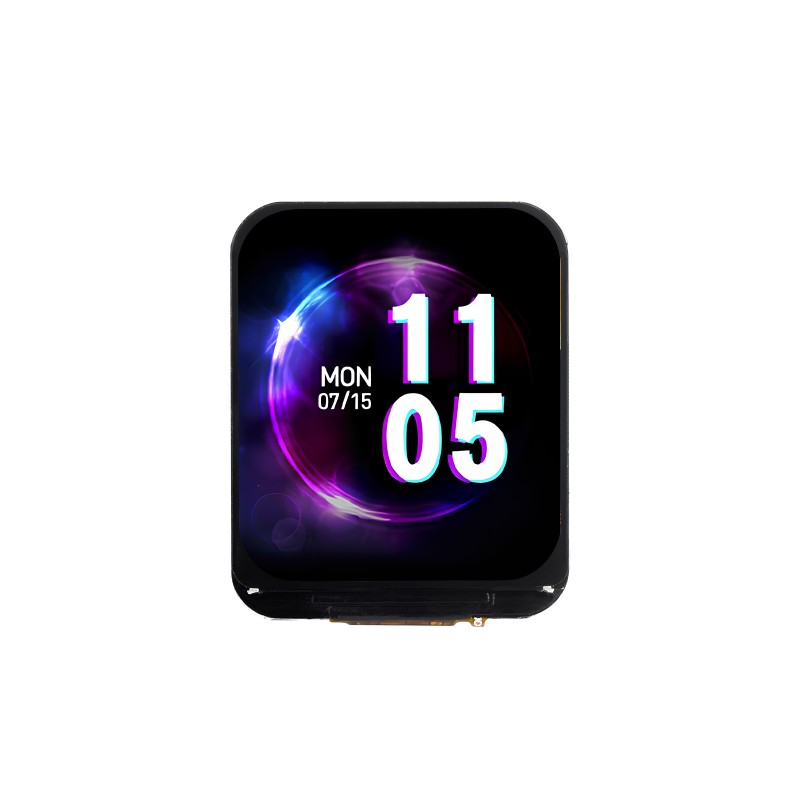

The ESP32-S3-LCD-1.69 development board is designed for compact IoT projects and portable devices. It features a dual-core LX7 processor running at up to 240 MHz, a 1.69-inch IPS LCD display with a resolution of 240×280 px and ST7789V2 controller (SPI communication), WiFi 802.11 b/g/n and Bluetooth 5 (LE) connectivity, a 6-axis motion sensor (accelerometer + gyroscope), an RTC, and a lithium battery charging manager. With its USB Type-C connector and reserved GPIO, I2C, and UART interfaces, the board offers easy integration and functional expansion.
Specifications
- Processor: ESP32-S3R8 (Xtensa 32-bit LX7 dual-core, up to 240 MHz)
- Memory: 512 KB SRAM, 384 KB ROM, 8 MB PSRAM, 16 MB NOR-Flash
- Display: 1.69" IPS, 240×280 px, 262K colors, ST7789V2 driver, SPI interface
- Connectivity: 2.4 GHz WiFi (802.11 b/g/n), Bluetooth 5 (LE), built-in antenna
- Sensors: QMI8658 (6-axis IMU: 3-axis accelerometer and 3-axis gyroscope)
- RTC: PCF85063 with RTC battery socket (SH1.0)
- Power supply: 3.7V Li battery socket MX1.25 (charge/discharge), USB Type-C
- Additional components: BOOT button, RST button, PWM button, buzzer
- Interfaces: 12PIN header with GPIO, I2C, UART
- Form factor: compact design for mobile applications
- Low power consumption with flexible power management
Included
- ESP32-S3-LCD-1.69 x1
- SH1.0 12PIN cable x1
1197404
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
