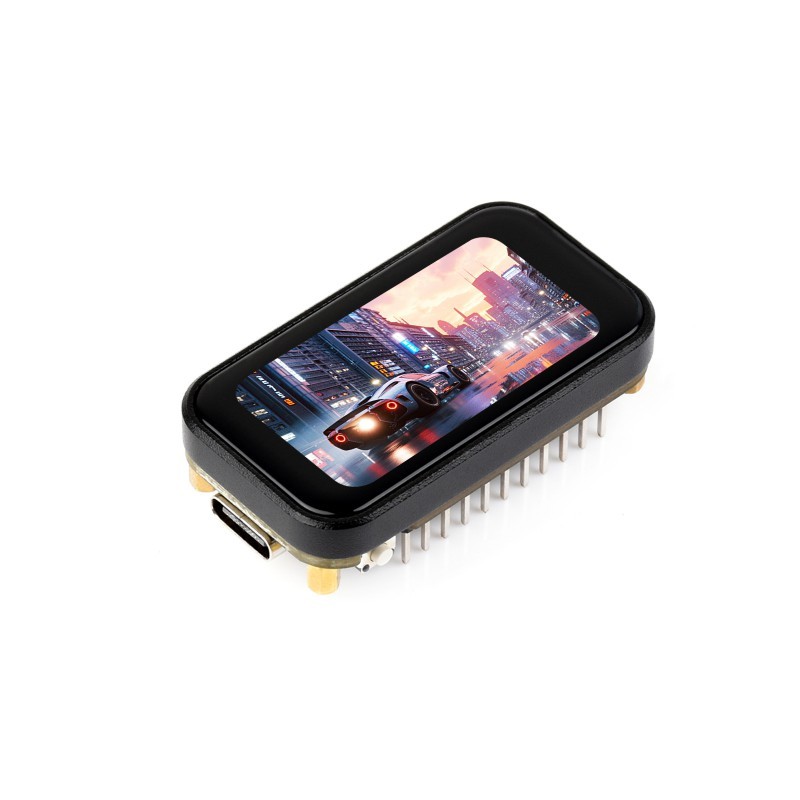

ESP32-C6 development board with 1.47-inch IPS touch display, Wi‑Fi 6, BLE 5 and pre-soldered headers (M) - Waveshare 31201
ID: 1198940
5902186308572
zł74.80
Tax included
zł60.81 tax excl.
ESP32-C6-Touch-LCD-1.47-M is a version of the development board with an IPS display and ESP32-C6, equipped with Wi-Fi 6, Bluetooth 5, and a rich set of peripherals. With factory-soldered GPIO headers, it allows immediate use in prototyping IoT devices and HMI systems.
Description
ESP32-C6-Touch-LCD-1.47-M is a version of the ESP32-C6 development board with factory-soldered pin headers, making prototyping and integration with other modules easier. The module is based on the ESP32-C6FH8 chip with a 32-bit RISC-V processor running up to 160 MHz and an additional low-power 20 MHz core. It supports Wi-Fi 6 (802.11 ax/b/g/n) and Bluetooth 5 LE/Mesh, providing modern wireless communication capabilities.
The board integrates a 1.47" IPS display with a resolution of 172×320 pixels and 262k colors with capacitive touch support. It is equipped with 8 MB Flash memory, TF card slot, USB-C port, BOOT and RESET buttons, as well as a 6-axis QMI8658 sensor (accelerometer and gyroscope). With support for graphics libraries such as LVGL, the board is well-suited for building HMI interfaces and IoT devices.
Properties
- Microcontroller: ESP32-C6FH8, 32-bit RISC-V, up to 160 MHz + low-power 20 MHz core
- Memory: 320 KB ROM, 512 KB HP SRAM, 16 KB LP SRAM, 8 MB Flash
- Display: 1.47" IPS, 172×320 resolution, 262k colors
- Display driver: JD9853, touch controller AXS5106L
- Interfaces: SPI (4-wire) for display, I2C for touch
- Connectivity: Wi-Fi 6 (2.4 GHz, 802.11 ax/b/g/n), Bluetooth 5 LE, BLE Mesh
- Sensor: QMI8658 (3-axis accelerometer + 3-axis gyroscope)
- TF card slot for file and image storage
- USB-C port for power, programming, and communication
- Buttons: RESET and BOOT
- Regulator: ME6217C33M5G (LDO, up to 800 mA)
- Support for low-power operating modes
- Factory-soldered pin headers (black) for GPIO and extensions
- Dimensions: 44.50 × 24.55 × 10.60 mm
