ESP32-C5-DevKitC-1-N8R4 – Development board with ESP32-C5-WROOM-1, WiFi 6, BLE, Zigbee, Thread
ID: 1199341
5902186330009
ESP32-C5-DevKitC-1-N8R4 is a development board with the ESP32-C5-WROOM-1 module, supporting WiFi 6, BLE, Zigbee, and Thread. Equipped with 8 MB Flash and 4 MB PSRAM, it is suitable for IoT projects and automation systems, offering extensive communication capabilities and easy integration with sensors and peripheral modules.
Description

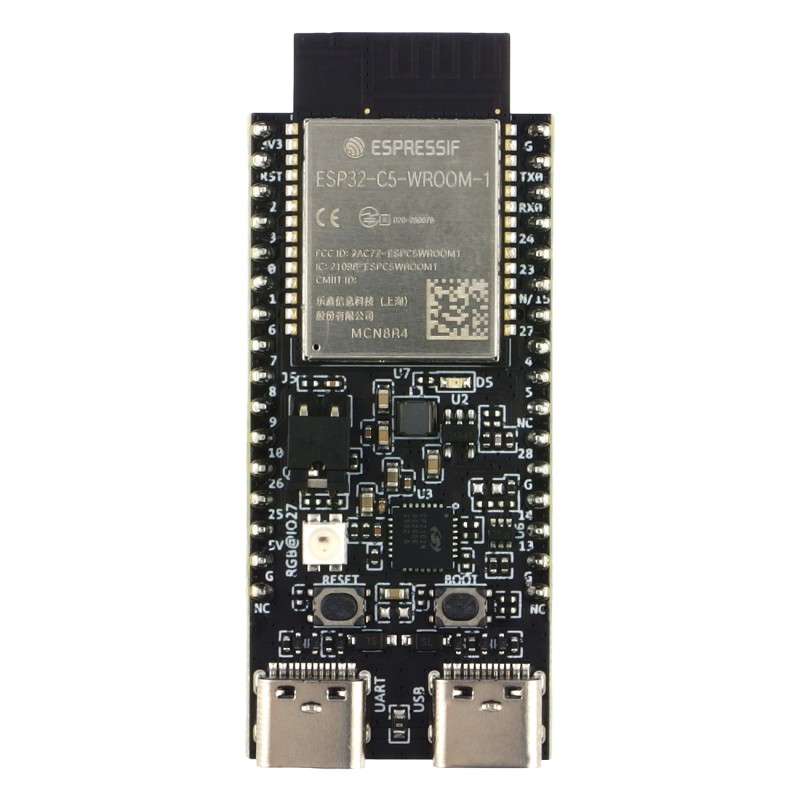

The ESP32-C5-DevKitC-1-N8R4 is a development board equipped with the ESP32-C5-WROOM-1 module, integrating WiFi in the 802.11ax (WiFi 6) standard on the 2.4 GHz and 5 GHz bands, Bluetooth Low Energy (BLE), Zigbee, and Thread (802.15.4). The 32-bit RISC-V core enables the implementation of complex IoT and automation projects while ensuring energy-efficient operation. The N8R4 version features 8 MB Flash memory and 4 MB PSRAM. The board is equipped with a USB-C interface with a USB-UART converter and a 3.3 V voltage regulator. Most of the module’s GPIO pins are broken out to goldpin headers, enabling easy connection of sensors and peripheral modules.
Features
- Module: ESP32-C5-WROOM-1
- CPU architecture: RISC-V, 32-bit
- Clock frequency: up to 240 MHz
- Flash memory: 8 MB
- PSRAM: 4 MB
- WiFi 802.11ax (WiFi 6), 2.4 GHz and 5 GHz
- Bluetooth LE 5.x
- Zigbee (802.15.4)
- Thread (802.15.4)
- Power supply: 5 V via USB-C, onboard 3.3 V regulator
- Programming interface: USB-C, built-in USB-UART converter
- Logic level: 3.3 V
- GPIO: most pins broken out to goldpin headers
