ESP32-P4 Smart 86 Box development board for smart control - Waveshare 31570
search
  • ESP32-P4 Smart 86 Box development board for smart control - Waveshare 31570
  • ESP32-P4 Smart 86 Box development board for smart control - Waveshare 31570
  • ESP32-P4 Smart 86 Box development board for smart control - Waveshare 31570
  • ESP32-P4 Smart 86 Box development board for smart control - Waveshare 31570
ID: 1198462
zł235.43
Tax included

zł191.41 tax excl.

ESP32-P4-86-Panel-ETH-2RO is a compact built-in touch panel with ESP32-P4, designed for smart control, HMI interfaces, and industrial applications. It offers a rich set of interfaces, including Ethernet, RS485, and two independent relays, as well as support for multi-touch and Wi-Fi 6 wireless communication. Ideal for use in home and industrial automation, where integration, security, and performance are essential.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

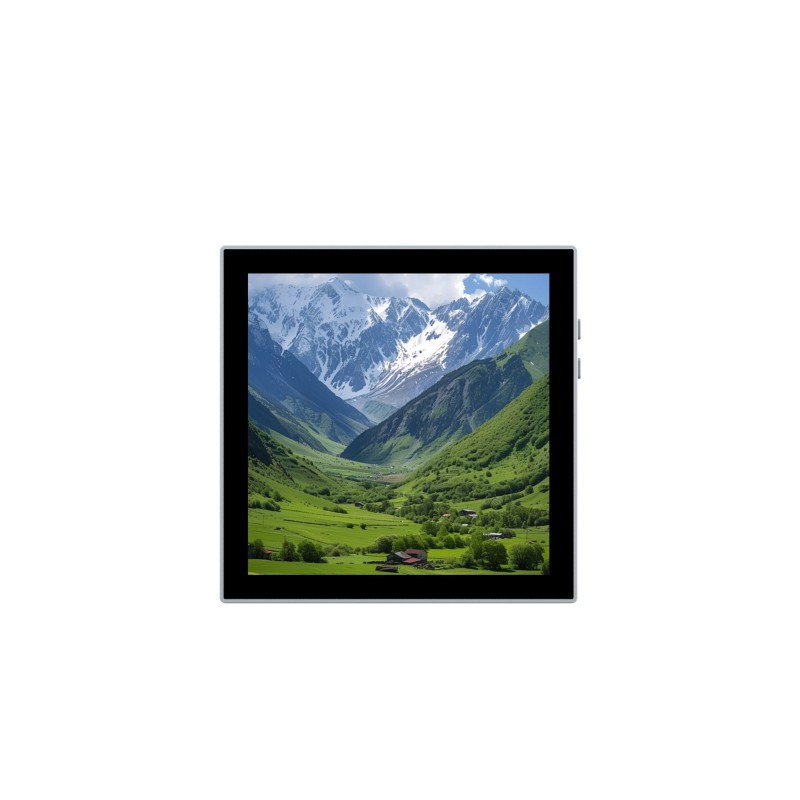

86×86 mm development panel with a 4-inch IPS touch screen at 720×720 px resolution, based on the ESP32-P4 controller with a dual-core 32-bit RISC-V processor. This version is equipped with an Ethernet connector, RS485 interface, and two relays. Designed for use in industrial automation, IoT control, and HMI interfaces. The panel enables fast integration with local networks and smart control systems, while also offering advanced image and audio processing capabilities and cryptographic security.

Supports 5-point touch, USB OTG 2.0 HS communication, Wi-Fi 6, and Bluetooth 5 LE (via ESP32-C6). Provides support for MIPI-CSI cameras (in another version) and advanced audio with echo cancellation.

Specifications

  • Processor: ESP32-P4, 32-bit RISC-V dual-core + single-core
  • RAM/Flash: 32 MB PSRAM, 32 MB Nor Flash
  • Display: 4" IPS 720×720 px, GT911, 5-point capacitive touch
  • Viewing angle: 170°
  • Brightness: 400 cd/m²
  • Contrast: 1200:1
  • Ethernet 10/100M (RJ45)
  • RS485 (with galvanic isolation)
  • 2 × relay (10A 250VAC / 30VDC, optoelectronic isolation)
  • USB OTG 2.0 (Type-A)
  • USB-UART (Type-C)
  • microSD card support (SDIO 3.0)
  • Audio interfaces: ES8311 (codec), ES7210 (echo cancellation), 2 × microphone, speaker connector
  • RTC support (battery backup connector)
  • Connectivity: ESP32-C6-MINI, Wi-Fi 6 (2.4 GHz), Bluetooth 5 LE (SDIO)
  • Dimensions: 86.5 mm × 86.5 mm × 36.5 mm
  • Mounting: for 86-type installation boxes (recommended depth ≥35 mm when using Ethernet)
  • Power supply: DC 6–30 V (screw terminal)
