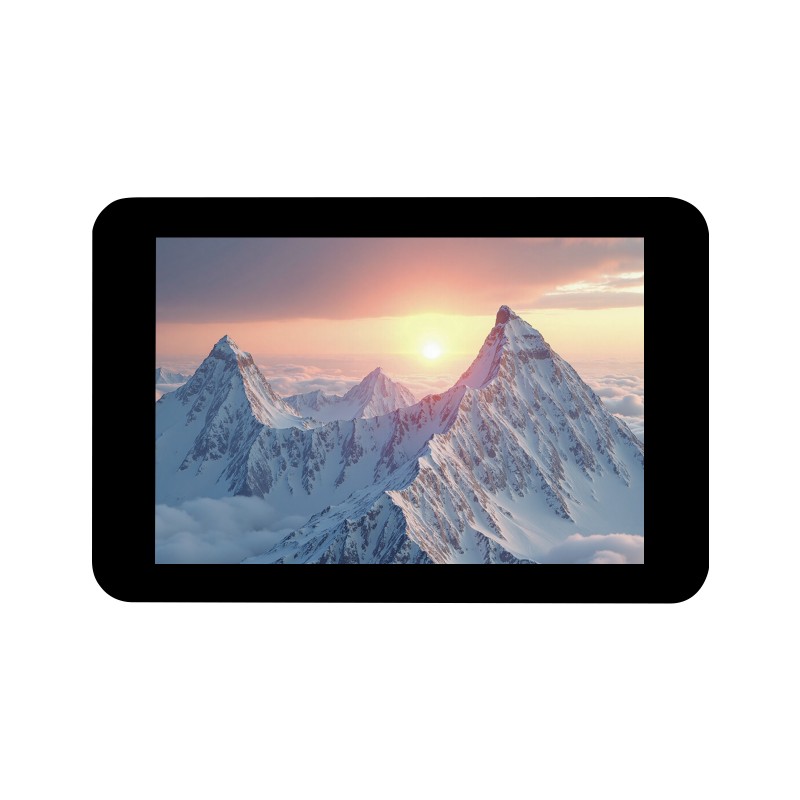

ESP32-S3-Touch-LCD-3.5 is a modern development platform integrating multimedia, communication, and sensor functions. With a touch display, audio, IMU, and MIPI camera support, it enables the creation of advanced user interfaces and interactive applications with Wi-Fi and Bluetooth connectivity. Ideal for control systems, portable devices, and interactive HMI panels.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

ESP32-S3-Touch-LCD-3.5 is a versatile development board featuring the ESP32-S3R8 microcontroller, designed for HMI, voice control, and multimedia projects. The board includes a 3.5-inch IPS display with a resolution of 320×480 px and a capacitive touch panel managed by the FT6336 controller. The integrated ESP32-S3 supports 2.4 GHz Wi-Fi and Bluetooth 5. Onboard components include a 6-axis IMU sensor, RTC, TF card slot, audio circuit with microphone and amplifier, camera connector, and lithium battery connector. Support for ESP-IDF and Arduino IDE allows for quick development startup.

Features

  • ESP32-S3R8 (Xtensa LX7, dual-core, up to 240 MHz)
  • Memory: 512 KB SRAM, 384 KB ROM, 8 MB PSRAM, 16 MB Flash NOR (W25Q128JVSIQ)
  • 3.5" IPS display, 320×480 px, ST7796 controller
  • Capacitive touch panel: FT6336, I2C, 5-point
  • QMI8658 sensor: 3+3 axis accelerometer and gyroscope
  • RTC: PCF85063, SH1.0 connector for RTC battery
  • Camera interface: compatible with OV2640 and OV5640 (camera module not included)
  • Audio codec ES8311: MEMS microphone input, speaker output (MX1.25, 1 W, 6 Ω)
  • TF card slot (SDIO), USB Type-C connector, IPEX antenna
  • BOOT, RESET, PWR buttons, LED indicators
  • GPIO: 2.54 mm pitch, UART, I2C, RTC power, lithium battery charging (MX1.25, 3.7 V)
  • Power supply via USB or lithium battery, managed by AXP2101

Included

  • ESP32-S3-Touch-LCD-3.5 x1
  • Speaker 6 Ω / 1 W x1
