ESP32-P4 4.3" LCD IPS 480x800 WiFi6 BLE5 Development Board - Waveshare 33874
ID: 1204599
zł161.07
Tax included
zł130.95 tax excl.
Waveshare 33874 development board based on ESP32-P4 and ESP32-C6 with 4.3" IPS display 480 x 800, 5-point touch, WiFi 6 and BLE 5 support, and onboard audio. Equipped with MIPI CSI camera interface (OV5647 camera not included), USB OTG, and 40PIN GPIO header compatible with Raspberry Pi HAT. Waveshare ESP32-P4-WIFI6-Touch-LCD-4.3
Description
Development board with integrated 4.3" touch display designed for embedded systems, HMI interfaces, and IoT and edge computing applications. The design uses ESP32-P4 microcontroller and ESP32-C6 module responsible for wireless communication in WiFi 6 and Bluetooth LE 5 standards. The architecture enables parallel processing and communication tasks, suitable for applications requiring simultaneous GUI handling and data transmission. The platform supports image and audio processing, enabling voice control and user interaction systems.

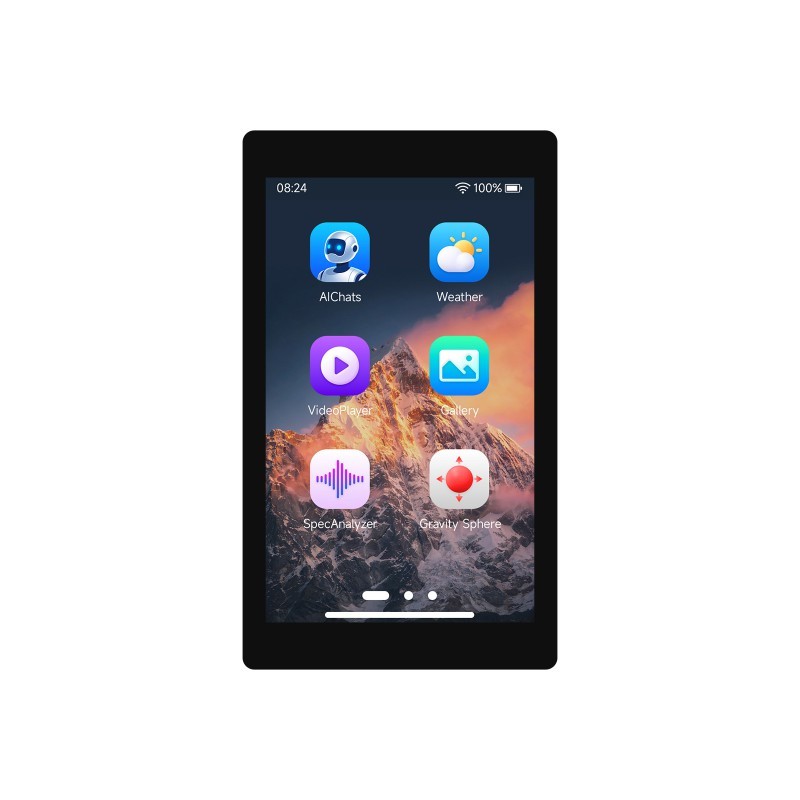

The 4.3" IPS display with 480 x 800 resolution provides a 160° viewing angle and supports up to 5-point touch. Optical bonding improves visibility and reduces the impact of dust on the panel.
The board includes USB OTG 2.0, UART, I2C interfaces, and a 40-pin GPIO header compatible with Raspberry Pi HAT. Integrated audio circuits and TF card slot support multimedia applications and data logging.

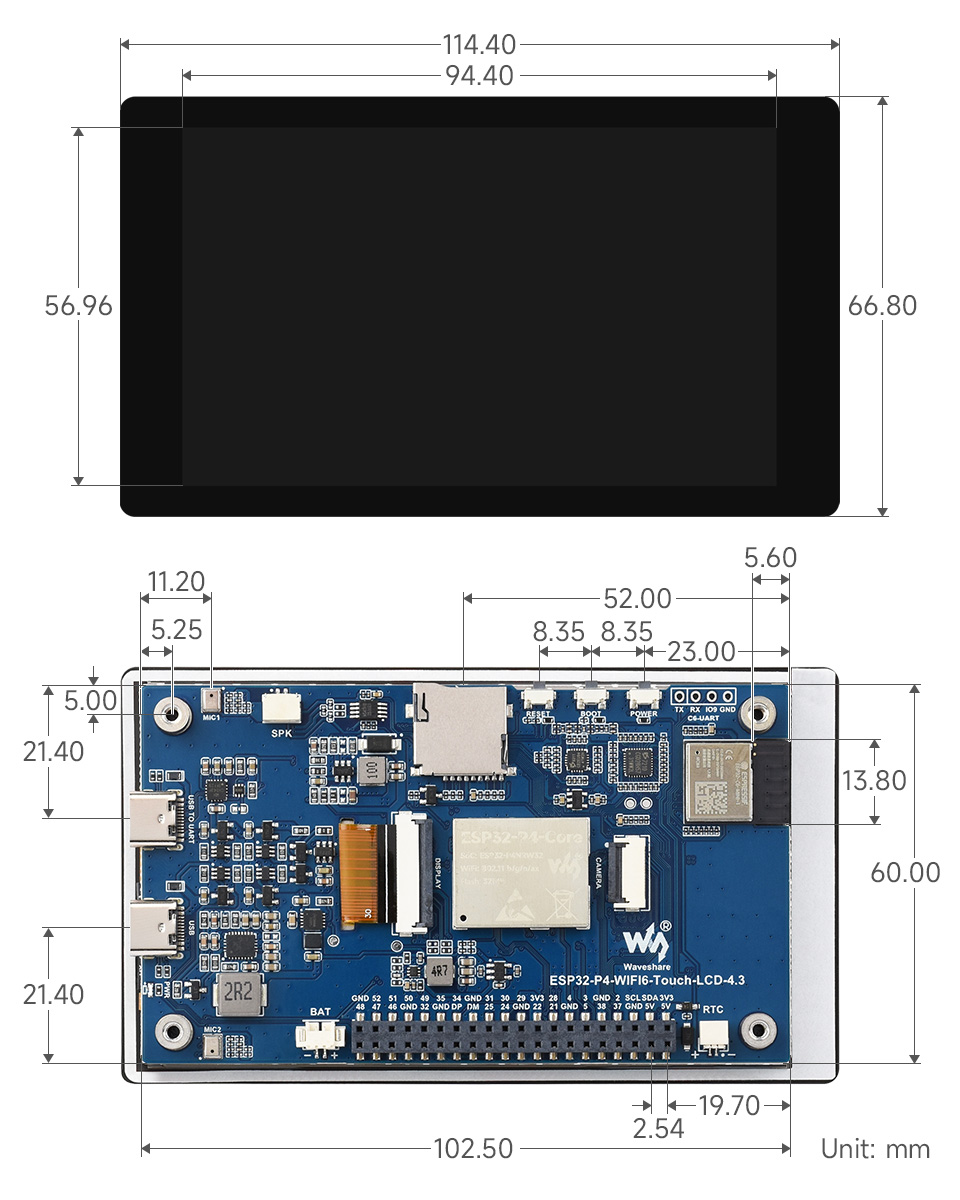

Element:
- ESP32-P4-Core - integrated ESP32-P4NRW32 and 32MB Nor Flash
- ESP32-C6-MINI-1 module - SDIO interface protocol, extending Wi-Fi 6 / Bluetooth 5 (LE)
- ES7210 echo cancellation chip - Echo cancellation algorithm chip, used to eliminate echo and improve audio capture accuracy
- ES8311 low-power audio codec chip - for audio encoding and decoding
- MIPI CSI interface - 15PIN 1.0mm pitch interface for connecting MIPI-2lane camera
- 2.54mm 4PIN pads - for ESP32-C6 module firmware burning
- RTC Batt header - for connecting rechargeable RTC Batt (supports rechargeable RTC Batts only)
- POWER button - Long press 2s to power off, short press to power on
- BOOT button - Press it when powering on or resetting to enter download mode
- RESET button
- TF card slot - SDIO 3.0 interface protocol
- MIPI DSI LCD interface - for connecting MIPI 2-lane display
- Speaker header - GH 1.25 2PIN connector (with lock), supports 8Ω 2W speaker (recommended)
- USB TO UART Type-C port - for power supply, programming and debugging
- USB OTG Type-C port - USB OTG 2.0 High Speed port
- Onboard microphones - dual-microphone array input
- PWR LED indicator - Power indicator
- MX1.25 Lithium Batt header - MX1.25 2PIN connector, for 3.7V Lithium Batt, supports charging and discharging
- 40PIN expansion header - 2.54mm pitch, compatible with some Raspberry Pi HATs (may require a 2*20pin male-to-male header for connection)
Features
- Microcontroller: ESP32-P4 (RISC-V 32-bit dual-core + single-core)
- Wireless module: ESP32-C6-MINI (WiFi 6, BLE 5)
- Flash memory: 32 MB
- PSRAM: 32 MB
- Display: 4.3" IPS
- Resolution: 480 x 800
- Viewing angle: 160°
- Brightness: 500 cd/m²
- Contrast ratio: 1000:1
- Touch: capacitive, up to 5 points
- LCD interface: MIPI DSI 2-lane
- LCD driver: ST7701
- Camera interface: MIPI CSI
- Audio: ES8311, ES7210, dual microphones
- USB: USB OTG 2.0, USB-UART Type-C
- Connectivity: WiFi 6 2.4 GHz, Bluetooth 5 LE
- Interfaces: GPIO 40PIN, UART, I2C
- Card slot: TF (SDIO 3.0)
- Power supply: USB Type-C, 3.7 V Li-ion battery
- Weight: 0.133 kg
Kit includes
- ESP32-P4-WIFI6-Touch-LCD-4.3 board - 1 pc
- 8 Ω 2 W speaker (GH1.25, 50 mm) - 1 pc
