A compact development board with a built-in 1.14" IPS display, ideal for user interfaces, IoT projects, and case-mounted devices. Featuring the ESP32-S3 with Wi-Fi, Bluetooth LE, and native USB, it offers 4MB of Flash and 2MB of PSRAM to support more advanced graphics and networking applications. Three user buttons, a STEMMA QT connector, and an integrated LiPo charger provide convenient prototyping and expansion capabilities. Adafruit 6303

24h
Available
Available quantity: 3
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

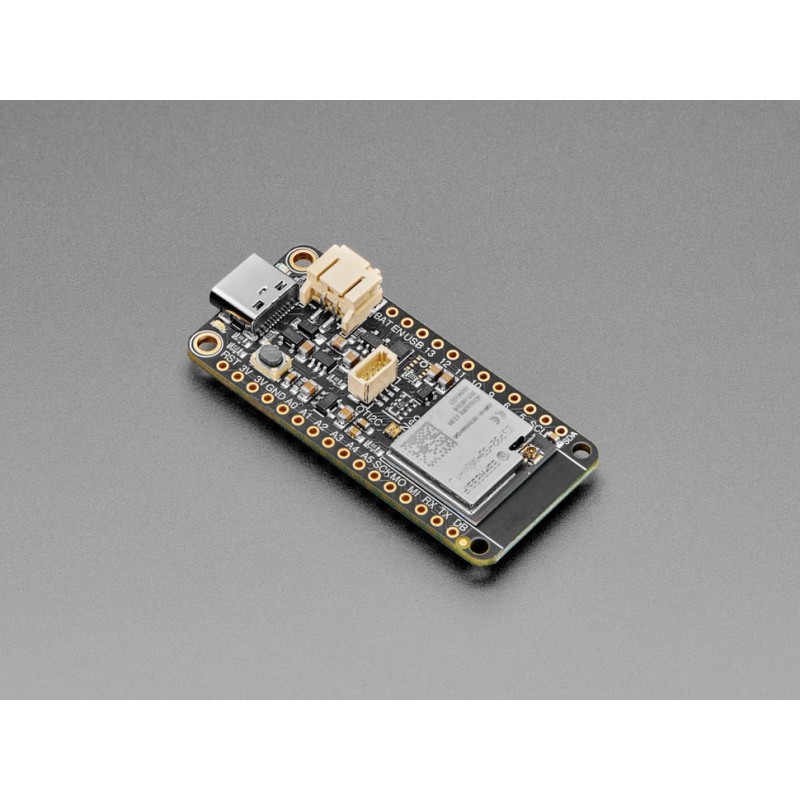

ESP32-S3 Reverse TFT is a modern development board designed for IoT projects, user interfaces, and embedded devices that require both high performance and a compact form factor. The TFT display is placed on the reverse side of the board, making it ideal for panel-mounted projects and enclosure-integrated designs. The board also includes three user buttons, enabling easy creation of interactive menus and control interfaces.


The ESP32-S3 chip provides versatility with support for Wi-Fi, Bluetooth LE, and native USB, allowing it to function as a keyboard, mouse, mass-storage device, or MIDI controller. The board features 4 MB Flash and 2 MB PSRAM, making it suitable for large data buffers, graphical applications, and advanced algorithms. The 240×135 px IPS display offers excellent image quality from any viewing angle, and independent backlight control allows dimming and reduced power consumption. With additional low-power regulation and the ability to disconnect power from peripherals, the board works well even in low-energy applications. The STEMMA QT connector enables rapid, solder-free sensor and module integration. Fully compatible with Arduino and CircuitPython, the module greatly simplifies prototyping and project development. Combined with its compact dimensions and certified radio module, the Adafruit ESP32-S3 Reverse TFT is an ideal solution for creators seeking a blend of functionality, performance, and an attractive visual interface.

Features

  • ESP32-S3 – dual-core Tensilica processor, 240 MHz
  • 4 MB Flash + 2 MB PSRAM
  • 1.14" IPS display, 240×135 px (ST7789)
  • Version with w.FL antenna connector (antenna not included)
  • Three user buttons (D0, D1, D2)
  • USB-C connector for power and programming
  • Integrated LiPo battery charger
  • LiPo battery monitor – MAX17048 (voltage and charge-level measurement)
  • Serial debug output
  • STEMMA QT / Qwiic connector with power-disconnect capability
  • Built-in LEDs: On, Charge, User, and NeoPixel status LED
  • Deep-sleep capability – power consumption approx. 40–50 µA
  • Compatible with Arduino and CircuitPython
  • Dimensions: 52.2 × 22.8 × 9.8 mm
  • Weight: 8 g

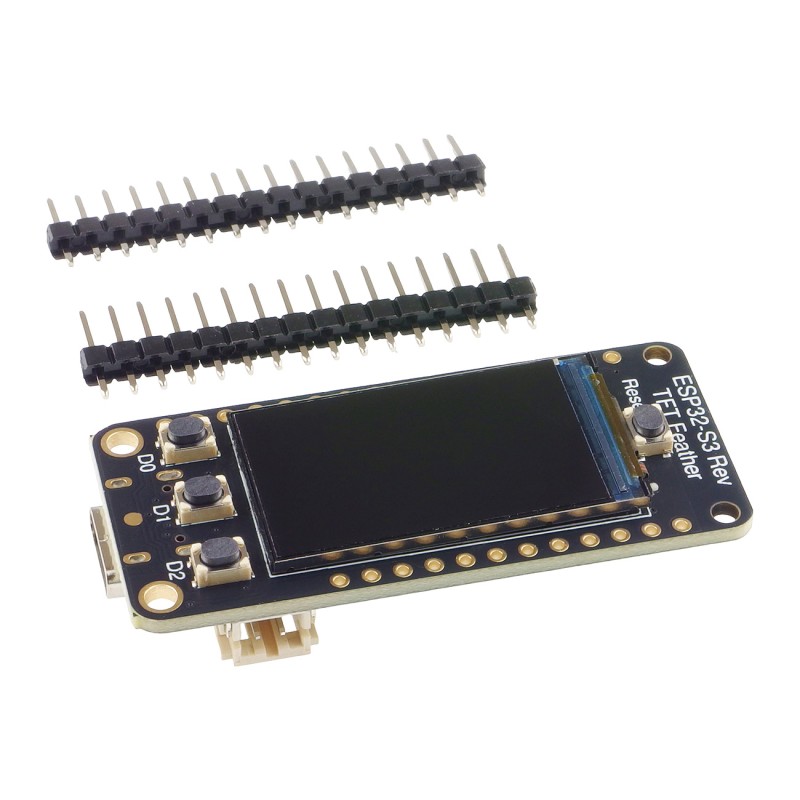

Kit contains

  • Adafruit ESP32-S3 Reverse TFT board with w.FL antenna connector
  • Header set
