ESP32-S3-DEV-KIT-N8R8 board with Wi-Fi/BLE ESP32-S3-WROOM-1 for mounting - Waveshare 24363
ID: 1184834
5906623423545
zł50.45
Tax included
zł41.02 tax excl.
The Espressif ESP32-S3-WROOM-1 WiFi and Bluetooth LE module board offers 8 MB Flash memory and 8 MB PSRAM. The pinouts are compatible with the ESP32-S3-DevKitC-1 modules.Waveshare ESP32-S3-DEV-KIT-N8R8
Description
The Espressif ESP32-S3-WROOM-1 WiFi module board features 8 MB Flash memory, 8 MB PSRAM and an integrated WiFi 802.11 b/g/n transceiver and Bluetooth supporting BLE 5 and Bluetooth Mesh. A 3.3 V current-capable stabiliser and an RGB LED are included on the board. On the GPIO pins, the user has analogue inputs and I2C, UART and SPI interfaces. The pinout and raster is compatible with the ESP32-S3-DevKitC-1 modules, and the board uses a USB type C connector for programming.
The board offers great potential in the field of IoT systems. It can also be programmed using the Arduino IDE, ESP-IDF or CircuitPython. Full documentation is available on the product page.
Features
- 240 MHz dual-core Xtensa 32-bit LX7 processor
- Integrated 512 kB SRAM, 384 kB ROM, 8 MB Flash, 8 MB PSRAM
- Wi-Fi 2.4 GHz - 802.11b/g/n
- Bluetooth LE 5, Bluetooth Mesh
- PCB antenna
- Voltage stabiliser 3.3V
- Optimised power supply for low power consumption
- Power supply: USB type C
- CH343P USB-UART converter and CH334F HUB controller
- Full-Speed USB OTG interface, LCD interface (8-bit RGB/8080/6800 serial), DVP camera interface (8-bit - 16-bit)
- 45 GPIO pins, including 3 x UART, 4 x SPI, 2 x I2C, PWM, 12-bit ADC, 14 x touch, 2 x I2S
- Pin spacing compatible with ESP32-S3-DevKitC-1 modules
- Dimensions: 63.3 x25.4 mm
Kit contains
- ESP32-S3-DEV-KIT-N8R8
- 2 x 40-pin male connector
1184834
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Cable with USB typ A and USB typ C connectors, cable length 0.5 m. LANBERG
zł4.26
24h
Available quantity: 16
Available
Cable with USB typ A and USB typ C connectors, cable length 1 m. LANBERG CA-USBO-10CC-0010-BK
zł5.08
24h
Available quantity: 5
Available
Cable with USB typ A and USB typ C connectors, cable length 1,8 m. LANBERG CA-USBO-10CC-0018-BK
zł5.61
24h
Available quantity: 17
Available
Other products in the same category (16)
Espressif ESP32-S3 WiFi and BLE chip module with 1.14" TFT LCD display. It integrates a LiPo charging circuit and an RGB diode. It is equipped with a STEMMA QT connector. Adafruit 5691
zł133.89
4 weeks
No product available!
Development board based on Bluetooth Low Energy and IEEE 802.15.4 ESP32-H2-MINI-1 module. The ESP32-H2-MINI-1 integrates a 2.4GHz transceiver compliant with Bluetooth Low Energy and IEEE 802.15.4 technologies, supporting Bluetooth 5 (LE), Bluetooth Mesh, Thread, Matter, and Zigbee. Espressif Systems ESP32-H2-DevKitM-1-N4
zł59.90
24h
Available quantity: 4
Available
Module with a 4-inch touch display that uses two MCU systems (ESP32-S3 and RP2040) and supports Wi-Fi and BLE communication. The board is equipped with USB Type C, I2C (Grove) and analog inputs interfaces and can easily connect to other peripheral devices. Seeed Studio 114993068
zł230.77
4 weeks
No product available!
Module with a 4-inch touch display that uses two MCU systems (ESP32-S3 and RP2040) and supports Wi-Fi and BLE communication. The board is equipped with USB Type C, I2C (Grove) and analog inputs interfaces and can easily connect to other peripheral devices. Seeed Studio 114993069
zł407.82
24h
Available quantity: 2
Available
Module with a 4-inch touch display that uses two MCU systems (ESP32-S3 and RP2040) and supports Wi-Fi, BLE and LoRa communication. The board is equipped with USB Type C, I2C (Grove) and analog inputs interfaces and can easily connect to other peripheral devices. Seeed Studio 114993070
zł269.80
24h
Available quantity: 2
Available
Module with a 4-inch touch display that uses two MCU systems (ESP32-S3 and RP2040) and supports Wi-Fi, BLE and LoRa communication. The board is equipped with USB Type C, I2C (Grove) and analog inputs interfaces and can easily connect to other peripheral devices using a rich set of GPIOs. Seeed Studio 114993071
zł415.00
24h
Available quantity: 1
Available
Board with WiFi and BLE Espressif ESP32-S3 module and OV3660 camera and digital microphone. It offers 8 MB Flash memory and 8 MB SRAM. It is equipped with a USB type C connector and a WiFi/BT antenna. Seeed Studio 113991115
zł67.12
4 weeks
No product available!

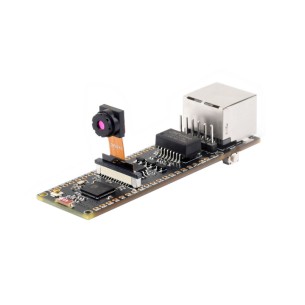

An Ethernet-Wi-Fi development board that allows you to connect Ethernet devices via Wi-Fi. It consists of two development boards: Ethernet (A) and PoE (B). The Ethernet (A) includes the ESP32-WROVER-E Bluetooth/Wi-Fi module and IP101GRI, and the PoE module (B) provides the power over Ethernet function.
zł339.01
24h
Available quantity: 1
Available
Espressif ESP32-C3 WiFi module board. It offers 4 MB of Flash memory and 400 kB of SRAM, as well as an RGB diode. It is equipped with a STEMMA QT connector. Adafruit 5700
zł74.24
24h
Available quantity: 2
Available
Development board equipped with ESP32-S3-WROOM-1 module. It is an interesting alternative to Arduino Uno boards. It has a compatible shape and pin layout, while making available the large resources offered by the ESP32 microcontroller. It can be programmed with Arduino, ESP-IDF, MicroPython and CircuitPython. SB Components 26647
Regular pricezł128.68zł105.31
24h
Available quantity: 2
Available
Waterproof controller with ESP32 module in an industrial-grade housing designed for demanding applications. It uses the Espressif ESP32 chip with the Xtensa® 32-bit LX6 core and a built-in Wi-Fi module. It is equipped with a 2-inch IPS display with a touch panel. M5stack K034
zł250.02
24h
Available quantity: 1
Available
A set for testing ambient temperature and humidity as well as air quality. It is a combination of the M5Stack Basic host module, the SHT30 temperature and humidity sensor and the PMSA003 digital universal particle concentration sensor. M5Stack K023-b
zł355.80
24h
Available quantity: 1
Available
Development kit from the M5Stack series equipped with the ESP32-S3 module. It will work well in projects related to IoT or in "wearable" devices. M5 Stack C124
zł44.90
24h
Available quantity: 5
Available
Development board based on the ESP32-C3-MINI-1 module. It offers the ability to connect via WiFi, Bluetooth version 5 and Bluetooth Mesh. It is equipped with sensors, such as the SHTC3 temperature and humidity sensor or the IMU 6 DoF ICM-42670-P sensor. Espressif Systems ESP32-C3-DevKit-RUST-1
zł123.06
24h
Available quantity: 1
Available
Development board with Espressif ESP32-S3-WROOM-1 module. The module has built-in 8 MB Flash memory and 8 MB PSRAM and offers WiFi and Bluetooth LE wireless communication. Espressif Systems ESP32-S3-DevKitC-1-N8R8
zł89.91
1 weeks
No product available!

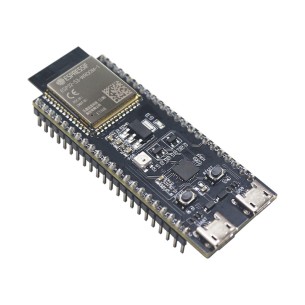

Development board with ESP32-S3-WROOM-1U module, featuring Wi-Fi 2.4 GHz, Bluetooth LE, 8 MB Flash, 8 MB PSRAM and an IPEX connector for an external antenna. Espressif ESP32-S3-DevKitC-1U-N8R8
