ESP-PROG-2 is a compact tool enabling convenient programming and debugging of ESP systems via UART and JTAG. Thanks to wide compatibility and selectable power supply voltage, it is suitable for working with various development boards, facilitating development and testing of applications in the ESP-IDF environment.

24h
Available
Available quantity: 23

Description

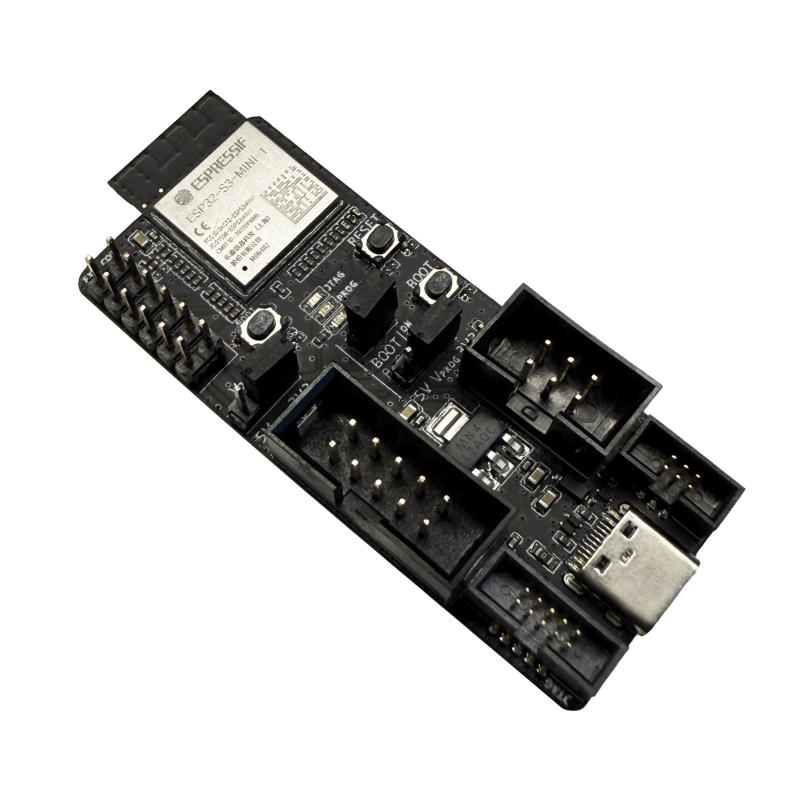

ESP-PROG-2 is a development and diagnostic tool from Espressif, designed for programming and debugging microcontrollers from the ESP family. It enables automatic firmware uploading and UART serial communication in ESP8266, ESP32, ESP32-S2, ESP32-S3 and ESP32-C3 systems. JTAG debugging functions are supported by ESP32, ESP32-S2, ESP32-S3 and ESP32-C3 models.

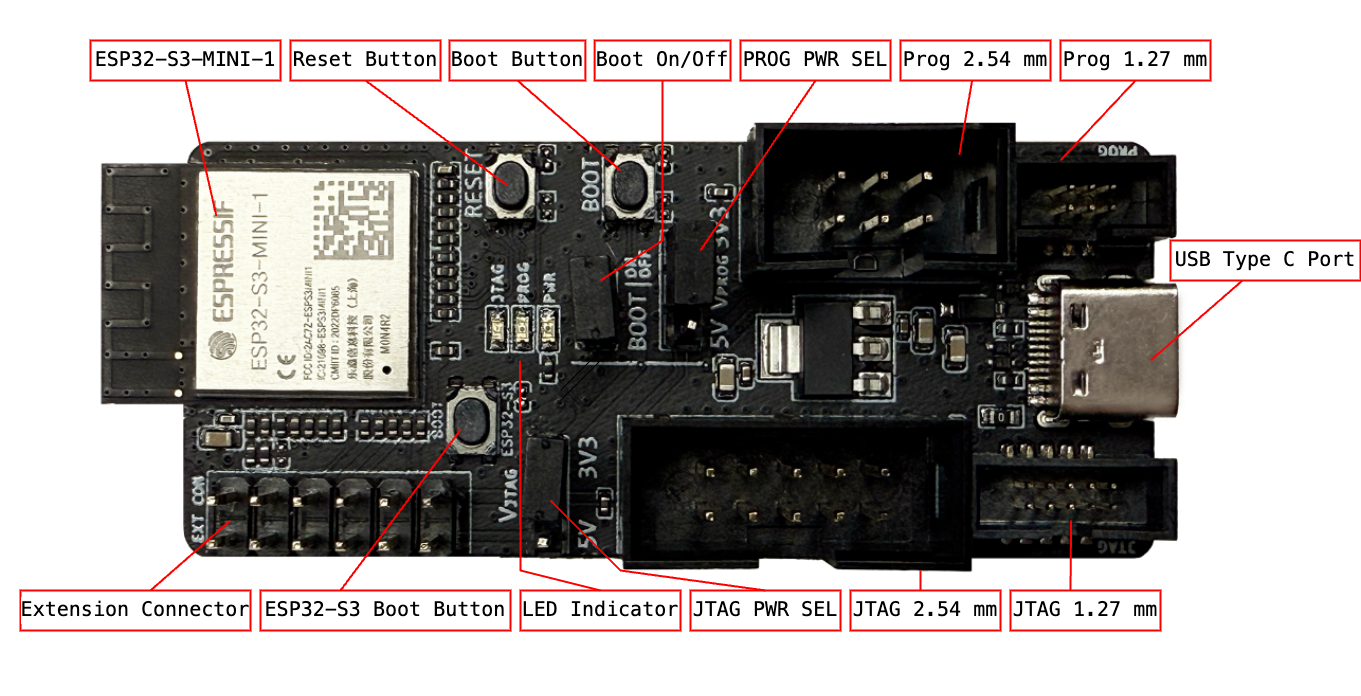

The device integrates UART and JTAG connectors in 1.27 mm and 2.54 mm standards, selectable supply voltage (3.3 V or 5 V) and two USB interfaces, which are recognized by the computer as separate ports. The JTAG and UART communication signals operate only at 3.3 V level. The board uses the ESP32-S3-MINI-1 module to handle communication and control functions. ESP-PROG-2 enables IO expansion mode operation and integration with development platforms such as ESP-IDF.

Properties

  • Support for ESP8266, ESP32, ESP32-S2, ESP32-S3, ESP32-C3 systems
  • Automatic firmware uploading via UART
  • JTAG debugging (ESP32, ESP32-S2/S3/C3)
  • Ports:
  • UART: ESP_EN, TXD, RXD, IO0, GND
  • JTAG: TMS, TCK, TDI, TDO, VDD, GND
  • Selectable supply voltage (3.3 V or 5 V) – set by jumpers
  • JTAG/UART signal level: 3.3 V
  • Interfaces:
  • Programming: 1× 1.27 mm connector, 1× 2.54 mm connector
  • JTAG: 1× 1.27 mm connector, 1× 2.54 mm connector
  • USB Type-C
  • LED indicators:
  • Red – 3.3 V power
  • Green – UART communication
  • Blue – JTAG debugging
  • BOOT and RESET buttons for programming mode operation
  • IO expansion interface (12-pin): SPI, I2C, GPIO lines, 5 V and 3.3 V power supply
  • Main module: ESP32-S3-MINI-1 with BLE and Wi-Fi
  • Firmware update capability via USB
  • Power supply from USB or 5 V / 3.3 V pins
  • Compatibility with Windows, Linux and macOS systems

Included in the set

  • ESP-PROG-2 module
  • USB-C cable
  • Connection ribbons: 2.54 mm (2×5 pins) and 1.27 mm (2×3 pins)
  • Antistatic packaging
