Development board based on the ESP32-S3-WROOM module with a dual-core 240 MHz processor, 32 MB Flash and 16 MB PSRAM, supporting 2.4 GHz Wi-Fi and Bluetooth LE, designed for IoT and AIoT projects. Waveshare ESP32-S3-DEV-KIT-N32R16V

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The ESP32-S3-DEV-KIT-N32R16V is intended for IoT and AIoT applications that require high computing performance, large memory capacity, and reliable wireless communication. The board is built around the ESP32-S3-WROOM module featuring a dual-core 32-bit Xtensa LX7 processor clocked up to 240 MHz, enabling efficient handling of network applications, data processing, and machine-learning-related workloads.



The memory configuration includes 32 MB Flash and 16 MB PSRAM, allowing the development of advanced projects such as graphical applications, large data buffering, and operation with extensive libraries and models. Integrated 2.4 GHz Wi-Fi and Bluetooth Low Energy 5 provide wireless connectivity for modern automation systems, monitoring solutions, and smart devices.

The board is equipped with a USB Type-C connector and CH343/CH334 USB-to-UART chips, enabling programming and serial communication directly via USB. The pinout is compatible with the ESP32-S3-DevKitC-1, simplifying expansion and reuse of existing accessories and peripheral modules. This version is supplied without pre-soldered pin headers, making it suitable for direct integration into end products or soldering onto custom carrier boards.

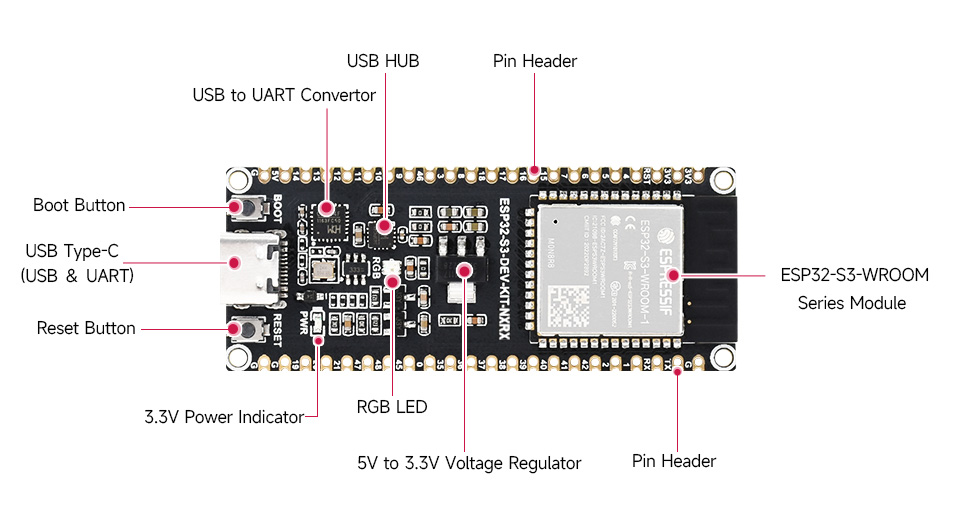

                                                                                                                            Onboard resources

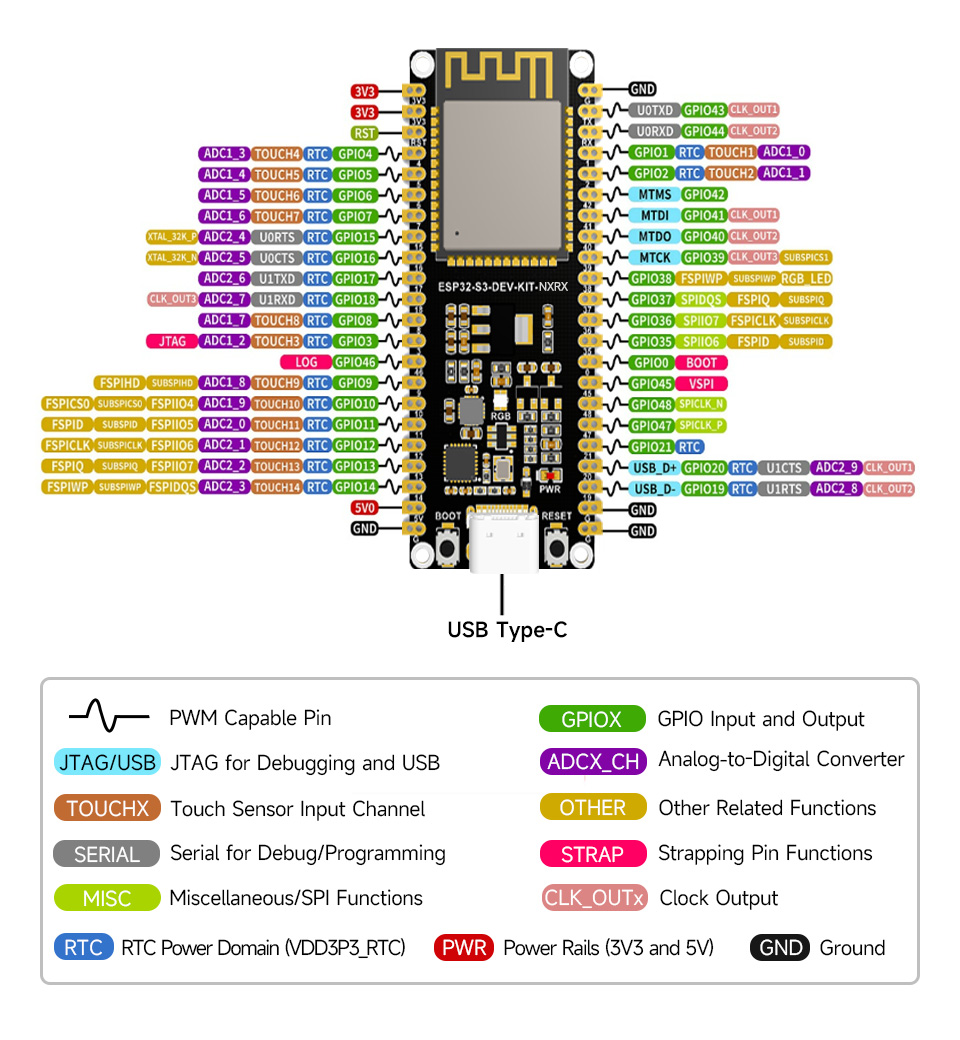

                                                                                                                              Pinout definition


Features

  • Microcontroller: ESP32-S3-WROOM
  • Processor: Dual-core 32-bit Xtensa LX7
  • Maximum clock frequency: 240 MHz
  • SRAM: 512 kB TCM
  • ROM: 384 kB
  • Flash memory: 32 MB
  • PSRAM: 16 MB
  • Wireless connectivity: 2.4 GHz Wi-Fi 802.11 b/g/n
  • Bluetooth: Bluetooth Low Energy 5
  • USB interface: USB Type-C
  • USB-UART chips: CH343, CH334
  • Pin compatibility: ESP32-S3-DevKitC-1
  • Supported environments: ESP-IDF, Arduino, MicroPython
  • Low-power modes: Yes
  • Mounting type: Without pre-soldered pin headers
  • Applications: IoT, AIoT, embedded systems
