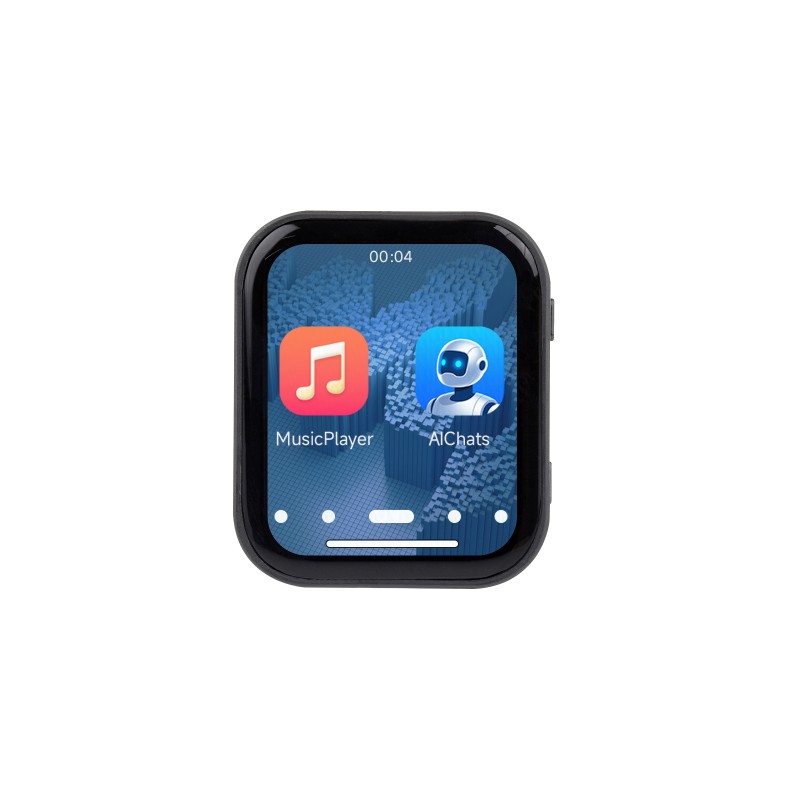

ESP32-S3-Touch-LCD-1.83 - ESP32-S3 development board with 1.83" IPS touch display 240x284px + battery - Waveshare 32790
ID: 1202694
zł103.98
Tax included
zł84.54 tax excl.
Development board based on the ESP32-S3 microcontroller, featuring a 1.83 inch IPS touch display with a resolution of 240 x 284, WiFi and Bluetooth 5 connectivity, onboard audio codec, microphones, speaker, and an included 3.7 V lithium battery, designed for IoT projects and interactive applications. Waveshare ESP32-S3-Touch-LCD-1.83
Description
Development board based on the ESP32-S3 microcontroller, designed for prototyping and integration of smart devices, including IoT applications, interactive systems, and voice-based solutions. The integrated IPS touch display with a diagonal size of 1.83 inch and a resolution of 240 x 284 enables the design of user interfaces without the need for external display modules.
The ESP32-S3 integrates a dual-core Xtensa LX7 processor with a clock frequency of up to 240 MHz, delivering high computing performance for graphics processing, audio handling, and wireless communication. Support for 2.4 GHz WiFi and Bluetooth 5 LE enables modern wireless connectivity, while the onboard antenna simplifies end-device design. The board also integrates an audio codec, dual microphone array, speaker, 6-axis IMU, and an RTC chip, allowing advanced multimedia and sensing functions to be implemented in a compact form factor.
The availability of GPIO pins and I2C, UART, and USB interfaces, combined with the included 3.7 V lithium battery, enables the development of self-powered prototypes and testing of devices in mobile operating conditions without the need for a permanent external power source.
Function description
Controller board layout
- ESP32-S3R8 - The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 8MB PSRAM
- AXP2101 - Highly integrated power management IC
- ES8311 - Low-power audio codec IC
- ES7210 - ADC chip for echo cancellation circuits
- MX1.25 speaker header - non-polarized
- 1.2mm Lithium battery header - 1.2mm 2PIN connector, for 3.7V Lithium battery, supports charging and discharging (the battery with 6 x 25 x 25 mm dimensions is recommended for installation inside the case)
- Type-C port - ESP32-S3 USB port for program burning and log printing
- 16MB NOR-Flash - for storing data
- Onboard dual microphones array - Microphone input and echo cancellation
- Onboard antenna - Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
- Reserved GPIO pads - Adapting available I/O function pins for easy expansion
- QMI8658 - 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
- PCF85063 - RTC chip
- BOOT button - for device startup and functional debugging
- PWR button - for power ON/OFF, supports custom functions
- 1.83inch display panel connector
- Speaker amplifier chip
- TF card slot
Pin definition
Features
- Microcontroller: ESP32-S3
- Architecture: Dual-core 32-bit Xtensa LX7
- Clock frequency: up to 240 MHz
- ROM memory: 384 kB
- SRAM: 512 kB
- PSRAM: 8 MB
- Flash memory: 16 MB
- Wireless connectivity: 2.4 GHz WiFi, Bluetooth 5 LE
- Display: IPS capacitive touch
- Display size: 1.83 inch
- Display resolution: 240 x 284
- Color depth: 65 K
- Brightness: 300 cd/㎡
- Contrast ratio: 1200:1
- Display driver: ST7789P
- Touch controller: CST816D
- Display interface: SPI
- Touch interface: I2C
- Audio codec: ES8311
- Echo cancellation IC: ES7210
- Microphones: Dual microphone array
- Speaker: Built-in
- IMU sensor: QMI8658, 6-axis
- RTC chip: PCF85063
- Power management IC: AXP2101
- USB connector: USB Type-C
- Battery connector: JST 1.2 mm, 2-pin, 3.7 V
- Battery: 3.7 V lithium, included
- Supported environments: ESP-IDF, Arduino
- Weight: 0.037 kg
Kit includes
- ESP32-S3 Touch LCD 1.83 development board
- 3.7 V lithium battery
1202694
