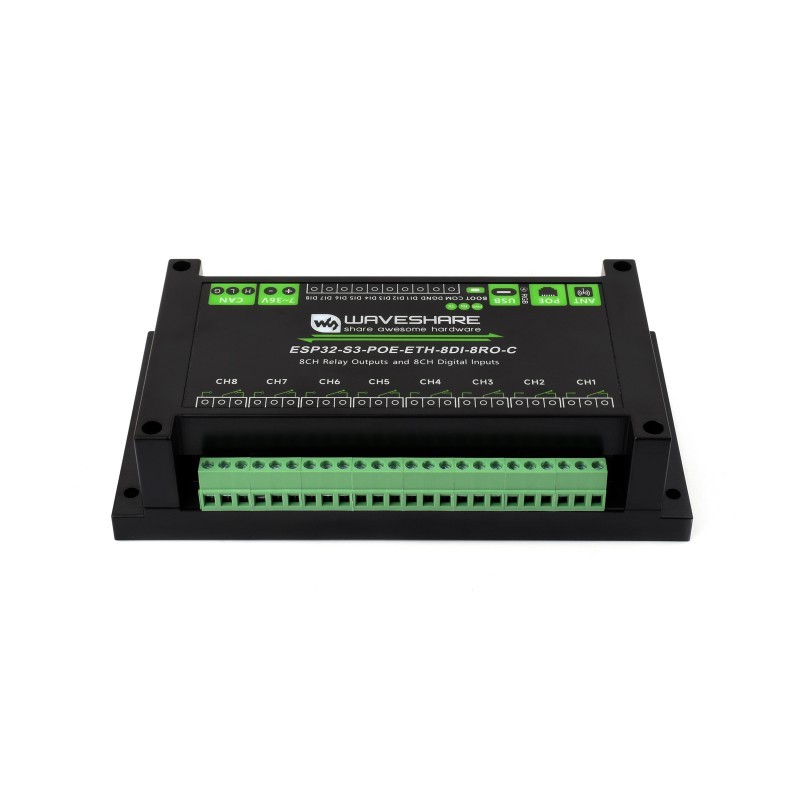

ESP32-S3-POE-ETH-8DI-8RO module (C) with 8 digital inputs, 8 relays, PoE, CAN, WiFi and Bluetooth - Waveshare 31284
search
  • ESP32-S3-POE-ETH-8DI-8RO module (C) with 8 digital inputs, 8 relays, PoE, CAN, WiFi and Bluetooth - Waveshare 31284
  • ESP32-S3-POE-ETH-8DI-8RO module (C) with 8 digital inputs, 8 relays, PoE, CAN, WiFi and Bluetooth - Waveshare 31284
  • ESP32-S3-POE-ETH-8DI-8RO module (C) with 8 digital inputs, 8 relays, PoE, CAN, WiFi and Bluetooth - Waveshare 31284
  • ESP32-S3-POE-ETH-8DI-8RO module (C) with 8 digital inputs, 8 relays, PoE, CAN, WiFi and Bluetooth - Waveshare 31284
ID: 1198970
zł204.43
Tax included

zł166.20 tax excl.

ESP32-S3-POE-ETH-8DI-8RO-C is an industrial module with 8 digital inputs and 8 relays, PoE support, an isolated CAN interface, and Wi-Fi/Bluetooth communication. It ensures reliability thanks to galvanic isolation and surge protection, making it suitable for automation systems, control, and IoT applications.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

ESP32-S3-POE-ETH-8DI-8RO-C is an industrial control module based on the ESP32-S3 microcontroller with a dual-core Xtensa LX7 processor clocked up to 240 MHz. Equipped with 8 isolated digital inputs and 8 relays rated at 10 A (250 V AC / 30 V DC), it enables direct control of network devices, automation systems, and IoT applications. It features an isolated CAN interface, an Ethernet port with PoE support compliant with IEEE 802.3af, and wireless communication via 2.4 GHz Wi-Fi and Bluetooth LE.

The system is designed with galvanic isolation and surge protection (TVS, opto-isolators, power separation), ensuring stable and safe operation in industrial environments. Additionally, the module includes a USB-C connector, microSD slot, buzzer, LED indicators, SMA antenna connector, and an ABS enclosure with DIN 35 mm rail mounting.

Properties

  • Microcontroller: ESP32-S3, Xtensa LX7 dual-core, up to 240 MHz
  • Built-in memory: 16 MB Flash and 8 MB PSRAM
  • Wireless communication: Wi-Fi 2.4 GHz (802.11 b/g/n), Bluetooth 5.0 BLE
  • Ethernet port: 10/100 Mbps (W5500 chip), PoE version compliant with IEEE 802.3af
  • 8 relays, max. 10 A 250 V AC / 30 V DC, optoelectronic isolation
  • 8 digital inputs, 5–36 V, passive/active, optoelectronic isolation
  • Isolated CAN interface with 120 Ω termination resistor (configurable by jumper)
  • USB Type-C interface for programming, power, and debugging
  • Supported power supply voltage via screw terminal: 7–36 V DC
  • Protections: TVS, signal and power isolation
  • RTC: PCF85063, supports cyclic tasks
  • microSD slot for memory expansion
  • LED indicators: PWR, TX, RX, RGB WS2812
  • Buzzer, RESET and BOOT buttons
  • ABS enclosure with DIN 35 mm rail mounting
  • Dimensions: 175 × 90 × 40 mm

Included in the set

  • ESP32-S3-POE-ETH-8DI-8RO-C ×1
  • 2.4G 4 dBi SMA antenna ×1
  • Screwdriver ×1
