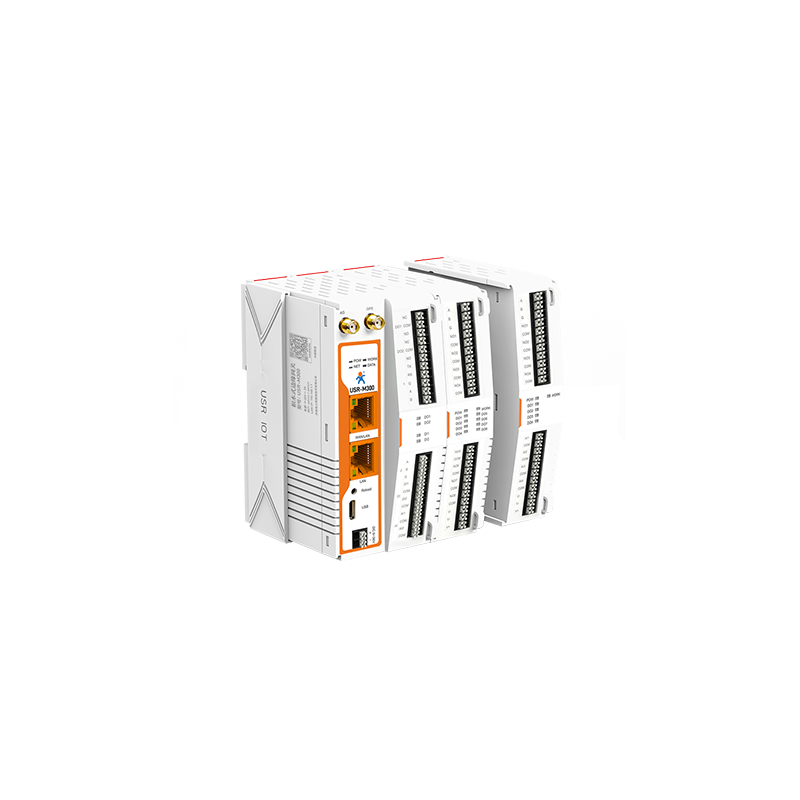

USR-M300-ETH – Industrial IoT Edge Gateway with Ethernet interface, expandable I/O, Modbus, MQTT, VPN
ID: 1200615
zł499.69
Tax included
zł406.25 tax excl.
USR-M300-ETH is a versatile industrial IoT gateway with advanced edge computing capabilities, I/O support, and wide compatibility with network and cloud protocols. Ideal for remote monitoring, data acquisition, and automation in industrial, energy, and infrastructure applications.
Description
USR-M300-ETH is an industrial IoT Edge Gateway with data acquisition, local processing (edge computing), protocol conversion, I/O support, and cloud data transmission. The device supports Modbus RTU/TCP, MQTT, and SNMP conversion, and offers multiple communication interfaces including 2 serial ports (RS232/RS485), 2 Ethernet ports (LAN/WAN), 2 digital inputs (DI), 2 digital outputs (DO - relay), and 2 analog inputs (AI - 4–20 mA). Thanks to its modular design, it can be easily expanded with additional I/O modules.
The device runs on a Linux system with a dual-core 1.2 GHz processor and supports concurrent data collection from up to 2000 data points. It supports various modes of TCP/UDP/HTTP/Websocket operation and the Node-RED graphical programming environment. Designed for operation in harsh industrial environments with a temperature range from -40°C to +85°C and power supply of 9–36 V DC. The ABS enclosure with IP30 protection allows for DIN rail or wall mounting.
Properties
- Processor: dual-core, 1.2 GHz, Linux
- Serial ports: 2 × (RS232/RS485, RS485)
- Ethernet ports: 1 × WAN/LAN, 1 × LAN (10/100 Mbps)
- I/O: 2 × DI, 2 × DO (relay), 2 × AI (4–20 mA)
- Power supply: DC 9–36 V
- Serial transmission rate: 600–230400 bps
- Supported protocols: Modbus RTU/TCP, MQTT, TCP/IP, HTTP, SNMP, VPN (PPTP/L2TP/OpenVPN), NTP
- Security: SSL/TLS, firewall, routing, static IP
- DI inputs: 0–2 V (low), 9–36 V (high)
- DO outputs: up to 10 A/28 V DC and 5 A/250 V AC
- Enclosure: ABS, IP30 protection rating
- Mounting: DIN rail or wall mounting
- Dimensions: 79.6 × 58 × 110 mm
- Operating temperature: –25°C to +75°C
- Certifications: CE, FCC, RoHS
1200615
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
