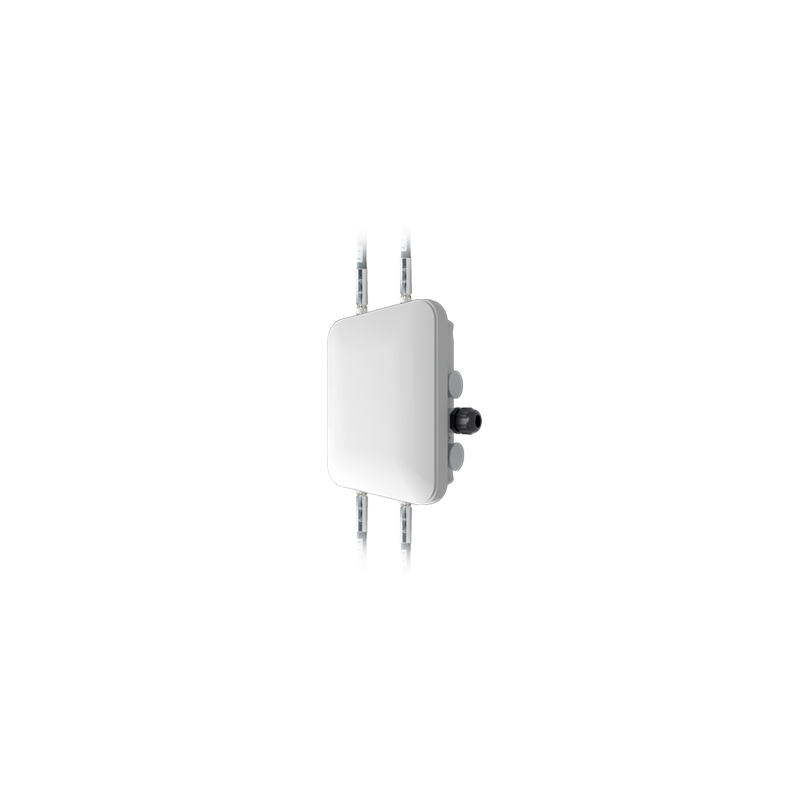

AP530X – Outdoor WiFi 6 AX7800 access point, tri-band, IP67, PoE
ID: 1200619
zł1,177.73
Tax included
zł957.50 tax excl.
AP530X is a high-performance outdoor WiFi 6 access point offering tri-band operation, IP67 protection, and support for up to 256 users. With extensive configuration capabilities, cloud management, and a robust security system, it is ideal for urban, industrial, and large open-space installations.
Description
AP530X is an industrial WiFi 6 access point operating in three bands (2.4 GHz, 5 GHz-1, 5 GHz-2), designed for outdoor use in demanding environments. It offers a maximum combined throughput of up to 7776.5 Mbps, utilizing Qualcomm IPQ5018, QCN6102, and QCN6024 chipsets. Equipped with 512 MB RAM (expandable to 1 GB) and 128 MB NAND + 32 MB NOR flash memory, it ensures stable operation and high performance even under heavy load.
With 27 dBm transmit power and 6 dBi omnidirectional antennas, the AP530X offers a range of up to 1 km. It supports up to 256 concurrent users and operating modes including router, access point, and repeater. The metal enclosure with an IP67 protection rating ensures resistance to environmental factors, and PoE (IEEE 802.3at) power simplifies installation.
Properties
- WiFi standard: IEEE 802.11a/b/g/n/ac/ax (WiFi 6)
- Operating mode: tri-band (2.4 GHz / 5 GHz-1 / 5 GHz-2)
- Transmission speeds:
- 2.4 GHz: up to 574 Mbps
- 5 GHz-1: up to 2402 Mbps
- 5 GHz-2: up to 4804 Mbps
- Chipsets: Qualcomm IPQ5018 + QCN6102 + QCN6024
- RAM: 512 MB DDR3L (expandable to 1 GB)
- Memory: 128 MB NAND + 32 MB NOR
- Antenna: 2 × N-K type (2.4 GHz), 2 × N-K type (5 GHz), omnidirectional 6 dBi
- Range: up to 1 km
- Ethernet port: 1 × 1G RJ-45 WAN/LAN (10/100/1000 Mbps, auto MDI/MDIX)
- Power supply: 48 V PoE (IEEE 802.3at), power consumption ≤18 W
- Security: WPA, WPA2, WPA3
- Management: local, via controller, or PUSR cloud
- Operating modes: Access Point, Router, Repeater
- VPN: IPSec, PPTP, L2TP
- Operating temperature: -40°C to +70°C
- Storage temperature: -40°C to +85°C
- Enclosure: metal, IP67
- Dimensions: 263.6 × 198.46 × 82 mm
- Weight: 1.8 kg
- Mounting: wall or bracket
