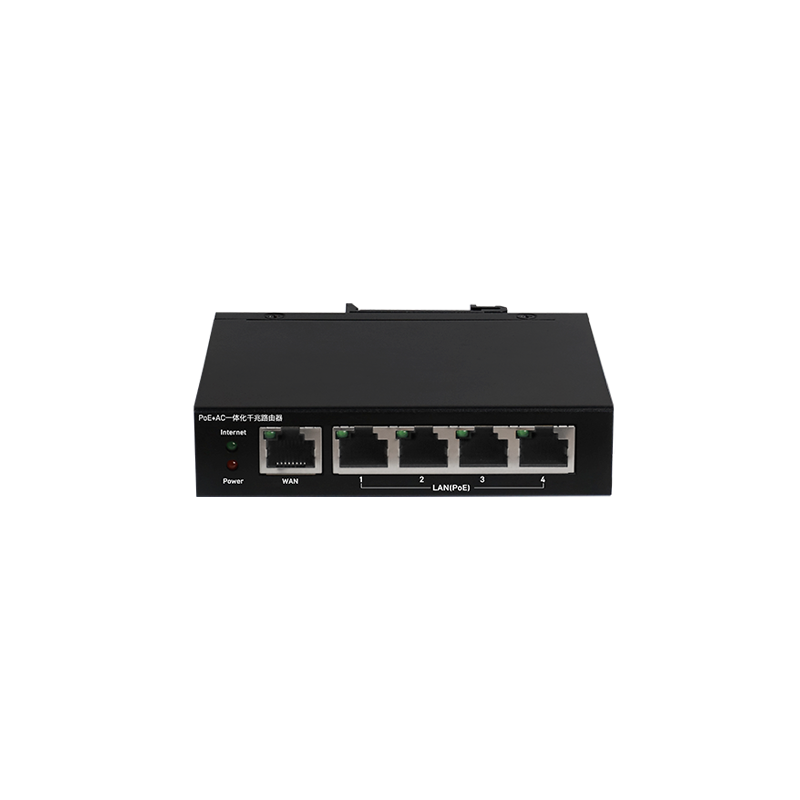

AC200 - Wireless access controller with PoE function and central management for AP
ID: 1200620
zł228.34
Tax included
zł185.64 tax excl.
The AC200 controller enables central management and power supply for up to 4 access points in small wireless networks. It supports 200 APs and 100 users, features gigabit ports, and offers enterprise-class functions in a compact enclosure for desktop, wall, or DIN rail mounting.
Description
The AC200 wireless access controller integrated with PoE functionality enables simultaneous management and power supply of access points (AP) in small and medium-sized network installations. It supports up to 200 access points and 100 concurrent end users. Four gigabit LAN ports with PoE output (maximum 30 W per port, total 57 W) allow powering APs without the need for separate power supplies, simplifying network deployment in home environments and small businesses. Support for IEEE 802.3af/at standards ensures compatibility with a wide range of network devices. The compact design allows for easy installation in telecommunication cabinets.
The device operates in router mode and supports management via a web interface or remotely through PUSR Cloud. With functions such as port mapping, IP binding, QoS, and NAT, it enables advanced network configuration. It supports seamless roaming between access points, ensuring continuous connectivity for mobile users.
Properties
- Supports up to 200 access points and 100 concurrent users
- PoE power supply 802.3af/at, max. 30 W per port, total 57 W
- Processor MTK MT7621AT, 880 MHz, dual-core
- DDR3 memory 2 Gbit, NOR Flash 128 Mbit
- 1 × WAN 10/100/1000M, 4 × LAN 10/100/1000M with PoE
- Supports router and access point modes
- Local or remote management via PUSR Cloud
- Supports IEEE802.3, IEEE802.3u, IEEE802.3ab standards
- Auto MDI/MDIX support
- Metal construction with EMC protection
- Mounting: desktop, wall-mounted, DIN rail
- Dimensions: 110 × 95 × 25 mm
- Operating temperature range: 0°C to 45°C
