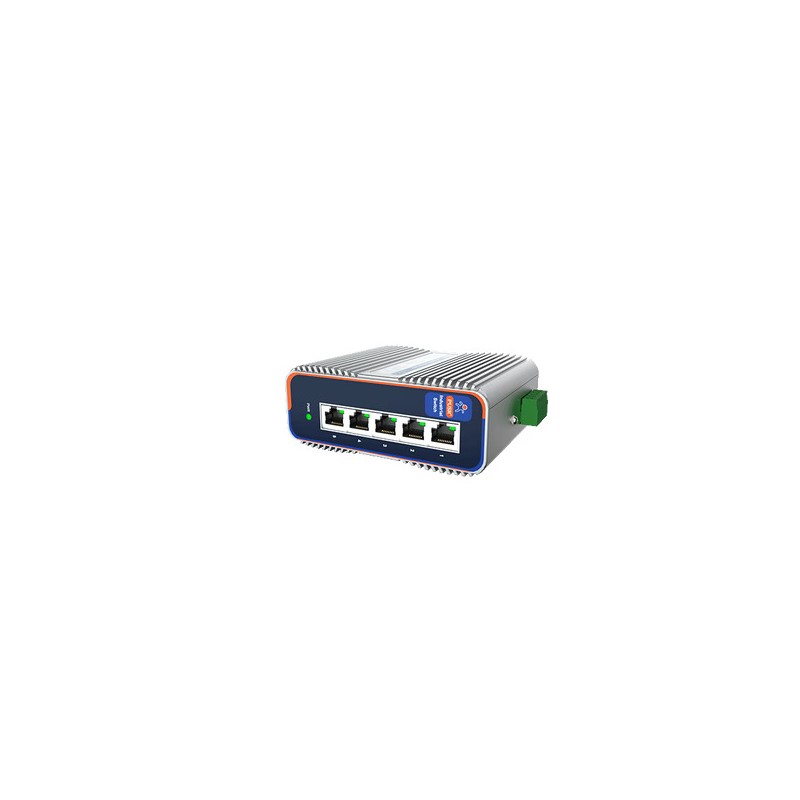

USR-ISG1005 - Industrial Gigabit Ethernet switch 5-port 10/100/1000 Mbps
ID: 1200623
zł127.61
Tax included
zł103.75 tax excl.
The industrial switch USR-ISG1005 with 5 Gigabit Ethernet ports provides high throughput and reliability in industrial automation applications, monitoring systems, and IoT infrastructure. Its compact design and DIN rail mounting enable easy integration into complex industrial installations.
Description
The unmanaged industrial switch USR-ISG1005 equipped with 5 x 10/100/1000 Mbps ports enables the construction of fast and reliable Ethernet networks in industrial environments. It supports store-and-forward data transmission, ensuring stability and low latency. High backplane bandwidth (10 Gbps), a 1 Mbit buffer, and a 2K MAC address table guarantee performance and smooth operation in applications requiring high data transfer.
Power supply in the range of 9.6–60 V DC with reverse polarity and overload protection, as well as a design resistant to extreme temperatures (-40°C to +85°C), ensure reliable operation in industrial conditions. The aluminum enclosure with IP40 protection rating effectively dissipates heat and protects electronics from dust. Compact dimensions and DIN rail mounting facilitate integration in control cabinets and distribution panels.
Properties
- 5 × 10/100/1000 Mbps RJ45 ports, auto MDI/MDIX
- Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards
- Backplane bandwidth: 10 Gbps
- Packet buffer: 1 Mbit
- MAC addresses: 2K
- Power supply: 9.6–60 V DC, 5-pin connector
- Power consumption: <5 W
- Protection against reverse polarity and overload
- Aluminum enclosure IP40, fanless design
- Mounting: DIN rail or desktop
- Dimensions: 118 × 96 × 47.5 mm
- Weight: 410 g
- Operating temperature: -40°C to +85°C
- EMC resistance: ESD ±8 kV (air), ±6 kV (contact), EFT, surge (Level 3)
- Certification: CE
1200623
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
