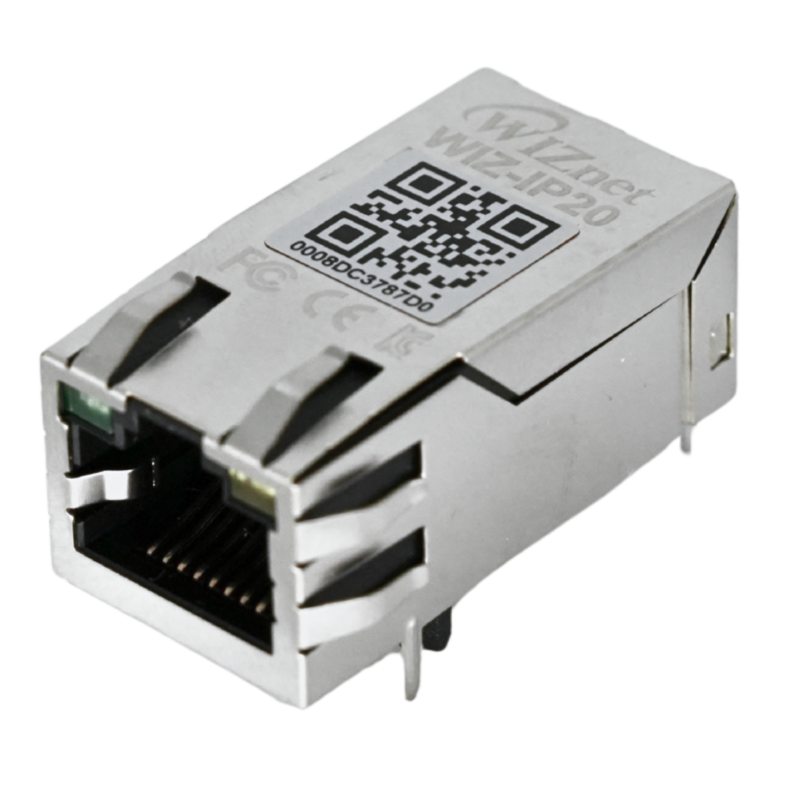

WIZnet WIZ-IP20 - Serial to Ethernet Module 10/100 Mbps
ID: 1207160
5902186340107
zł69.30
Tax included
zł56.34 tax excl.
WIZnet WIZ-IP20 enables Serial-to-Ethernet communication for devices equipped with UART or SPI interfaces. The module supports 10/100 Mbps Ethernet, serial communication speeds of up to 921600 bps, and a range of built-in network protocols, simplifying Ethernet integration. WIZnet WIZ-IP20
Description
The WIZnet WIZ-IP20 adds Ethernet connectivity to devices using UART or SPI interfaces without requiring TCP/IP stack implementation in the host microcontroller. Based on the WIZnet W55RP20 chip, the module is suitable for industrial automation, IoT applications, embedded systems, and other projects requiring reliable network communication.
The module supports TCP Server, TCP Client, TCP Server/Client Mixed Mode, and UDP operation, as well as MQTT, MQTTS, Modbus TCP, Modbus RTU, and Modbus ASCII protocols. Configuration can be performed using commands, a dedicated configuration tool, or a web-based interface, while OTA firmware updates allow remote software upgrades.
Features
- Serial to Ethernet module
- WIZnet W55RP20 chip
- UART and SPI communication interfaces
- 10/100 Mbps Ethernet port
- Maximum UART baud rate: 921600 bps
- Supports TCP Server, TCP Client, TCP Server/Client Mixed Mode, and UDP
- Supports MQTT and MQTTS
- Supports Modbus TCP, Modbus RTU, and Modbus ASCII
- Configuration via commands, configuration tool, or web interface
- Supports OTA firmware updates
- Operating temperature: -40°C to 85°C
- MAG-JACK form factor with integrated RJ45 connector
- Dimensions: 32.5 × 16.5 × 17.3 mm
