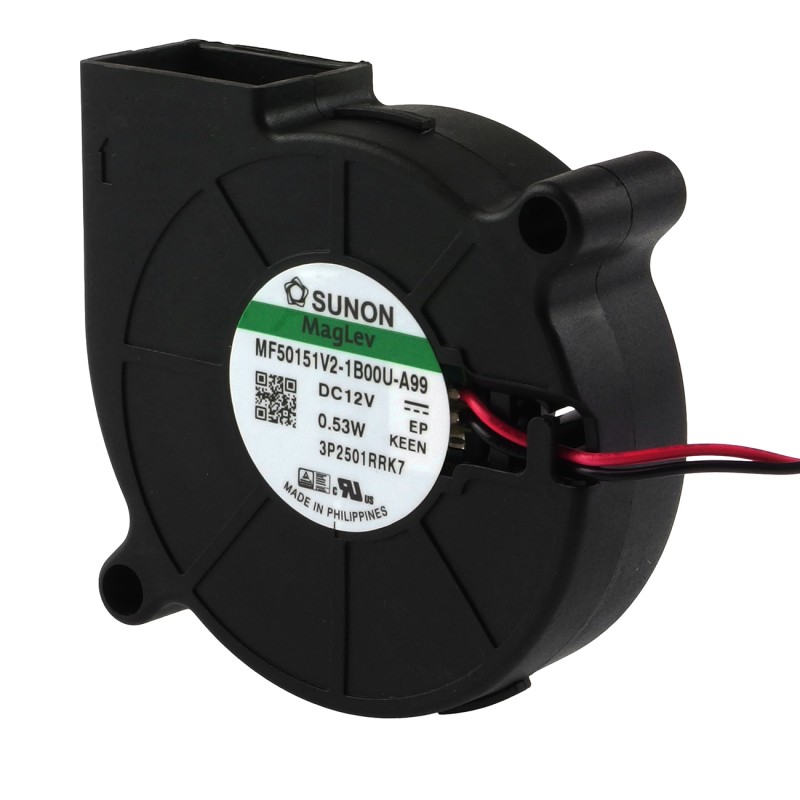

Sunon MF50151V2-1B00U-A99 – Blower fan 50×50×15 mm 12 V DC
ID: 1195154
zł28.78
Tax included
zł23.40 tax excl.
Sunon MF50151V2-1B00U-A99 is a compact 12 V DC centrifugal fan with dimensions of 50×50×15 mm, equipped with a Vapo bearing and a brushless motor. It provides an airflow of 5.94 m³/h with quiet operation (32.6 dBA), making it a reliable solution for cooling systems that require precise air flow direction.
Description
Sunon MF50151V2-1B00U-A99 centrifugal fan designed for cooling compact electronic devices such as control modules, power supplies, 3D printers, and automation systems. Powered by 12 V DC, it operates within a range of 4.5…13.8 V DC. Thanks to its blower-type design, it directs the airflow precisely, enabling effective heat dissipation from specific areas. The brushless motor with an auto-restart function ensures high reliability, while the Vapo bearing guarantees quiet operation and long service life. The housing and impeller made of thermoplastic with a UL94V-0 flammability rating ensure operational safety.
Features
- Type: DC centrifugal (blower) fan
- Supply voltage: 12 V DC
- Operating voltage range: 4.5…13.8 V DC
- Current consumption: 45 mA (±15%)
- Power consumption: 0.53 W (±15%)
- Rotational speed: 4200 rpm
- Airflow capacity: 5.94 m³/h
- Noise level: 32.6 dBA
- Bearing type: Vapo
- Motor: brushless DC with auto-restart function
- Insulation resistance: ≥10 MΩ
- Insulation class: A
- Impeller material: thermoplastic
- Frame material: thermoplastic
- Flammability rating: UL94V-0
- Operating temperature: –10…70 °C
- Leads: 2 wires
- Lead length: 0.305 m
1195154
Data sheet
- Voltage
- 4,5 - 13,8 V
- Power
- 0,53 W
- Length
- 50mm
- Width
- 50 mm
- Height
- 15 mm
- Weight
- 27,12 g
- Noise level
- 32,6 dBA
- Air flow efficiency
- 5,94 m³/h
- Rated current
- 45 mA
- Fan type
- Blower
