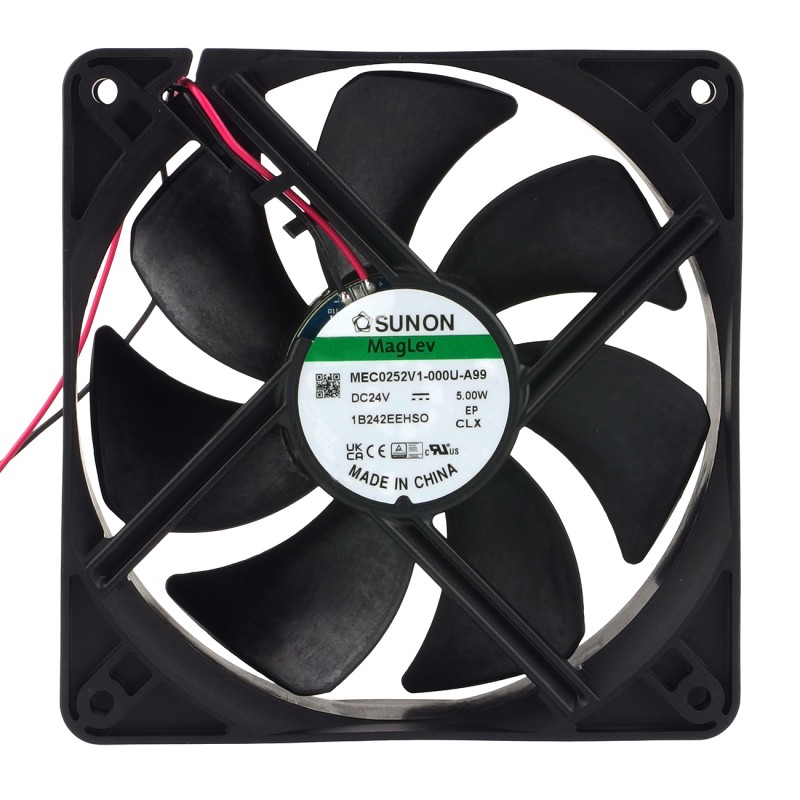

Sunon MEC0252V1-000U-A99 – Axial fan 120×120×25 mm 24 V DC
search
  • Sunon MEC0252V1-000U-A99 – Axial fan 120×120×25 mm 24 V DC
  • Sunon MEC0252V1-000U-A99 – Axial fan 120×120×25 mm 24 V DC
  • Sunon MEC0252V1-000U-A99 – Axial fan 120×120×25 mm 24 V DC
  • Sunon MEC0252V1-000U-A99 – Axial fan 120×120×25 mm 24 V DC
ID: 1199350
zł31.98
Tax included

zł26.00 tax excl.

Sunon MEC0252V1-000U-A99 is a high-performance 24 V DC axial fan with a Vapo bearing and auto-restart function. It provides an airflow of 183.9 m³/h at a speed of 3100 rpm, making it an ideal solution for cooling industrial and electronic devices that require reliable ventilation.

24h
Available
Available quantity: 4

Description

Sunon MEC0252V1-000U-A99 axial fan designed for efficient cooling of electronic devices, industrial equipment, and power supplies. Powered by 24 V DC, it uses a brushless motor with an auto-restart function, ensuring quiet and reliable operation within a wide voltage range of 10…27.6 V DC. The Vapo bearing provides long service life and smooth performance. The housing and impeller are made of high-temperature-resistant thermoplastic material compliant with the UL94V-0 flammability standard. The fan offers high airflow efficiency with a moderate noise level, making it suitable for cooling systems that require stability and durability.

Features

  • Type: DC axial fan
  • Supply voltage: 24 V DC
  • Operating voltage range: 10…27.6 V DC
  • Current consumption: 0.207 A (±15%)
  • Power consumption: 5 W (±15%)
  • Rotational speed: 3100 rpm (±10%)
  • Airflow capacity: 183.9 m³/h
  • Static pressure: 7.1 mm H₂O
  • Noise level: 44.5 dBA
  • Bearing type: Vapo
  • Motor: brushless DC with auto-restart function
  • Insulation resistance: ≥10 MΩ
  • Insulation class: A
  • Impeller material: thermoplastic
  • Frame material: thermoplastic
  • Flammability rating: UL94V-0
  • Operating temperature: –10…70 °C
  • Leads: 2 wires, 24 AWG
  • Lead length: 0.33 m
  • Weight: 138.07 g
1199350

Data sheet

Voltage
10 - 27,6 V
Power
5 W
Length
120 mm
Width
120 mm
Height
25 mm
Weight
138,7 g
Noise level
44,5 dBA
Air flow efficiency
183,9 m³/h
Rated current
207 mA
Fan type
Axial
