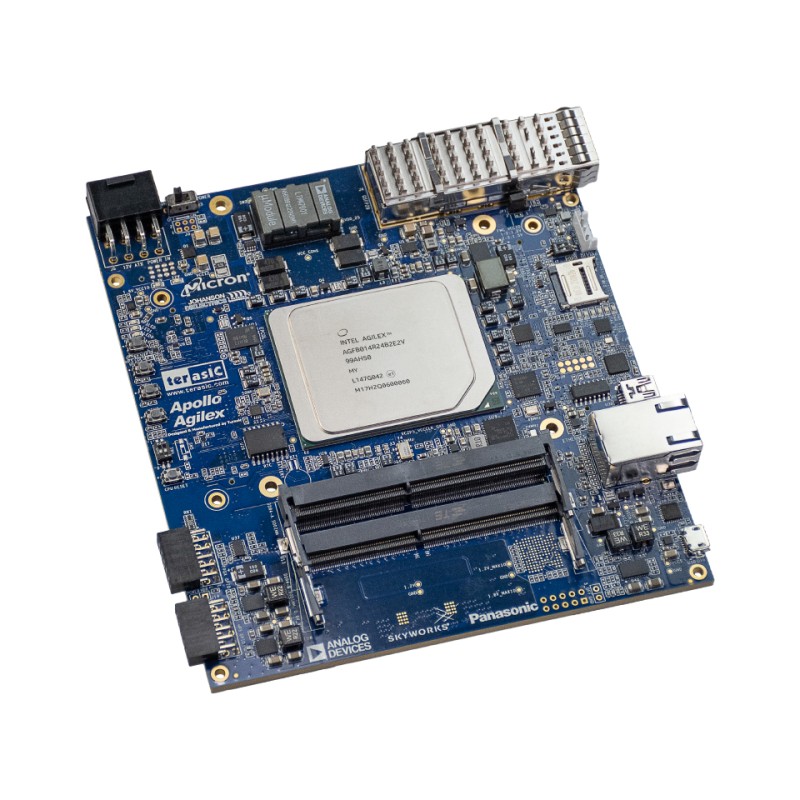

Apollo Agilex SOM – Module with Intel Agilex SoC FPGA + 32 GB DDR4

The Apollo Agilex SOM is a high-performance evaluation module featuring the modern Intel Agilex SoC with 1.4 million logic elements. It delivers exceptional computing performance while maintaining optimal power efficiency, making it ideal for applications that require high computational power, such as artificial intelligence (AI), edge computing, and high-performance computing (HPC).

The Apollo Agilex SOM is designed for maximum performance and flexibility in implementing complex algorithms and applications. With two DDR4 SO-DIMM slots, users can install up to 32 GB of ECC-supported memory, enhancing system stability and reliability.

Equipped with a PCIe Gen 4x16 interface, the module enables high-speed communication with peripheral devices, while FMC/FMC+ connectors provide extensive expansion capabilities. Additionally, the built-in USB-Blaster II programmer allows for easy FPGA programming and debugging.

The kit includes pre-installed 32 GB DDR4 ECC SO-DIMM memory for fast data processing.

Features

• FPGA Chip: Agilex AGFB014R24B2E2V
• Logic Elements: 1.4 million LE
• Memory: DDR4 ECC SO-DIMM – up to 32 GB (2x 16 GB)
• MicroSD Card Slot
• Interfaces:
  • PCIe Gen 4x16
  • QSFP28
  • FMC & FMC+
  • USB-Blaster II
  • Gigabit Ethernet (RJ45)
  • UART-USB
  • GPIO 1.2V (2x6)
  • USB OTG (Micro USB)
• Two push buttons
• Two DIP switches
• Two LED indicators
• Reset button
• RTC clock
• Power: 12V / 180W
• Dimensions: 145 x 133 mm

Kit includes

• Apollo Agilex SOM – Module with Intel Agilex SoC FPGA
• Heatsink
• Pre-installed 32 GB DDR4 ECC SO-DIMM Memory
• MicroSD Card + Card Reader
• Mini USB Cable
• Screw Set
• AC Power Cable
• 12V / 180W Power Adapter
• Quick Start Guide
