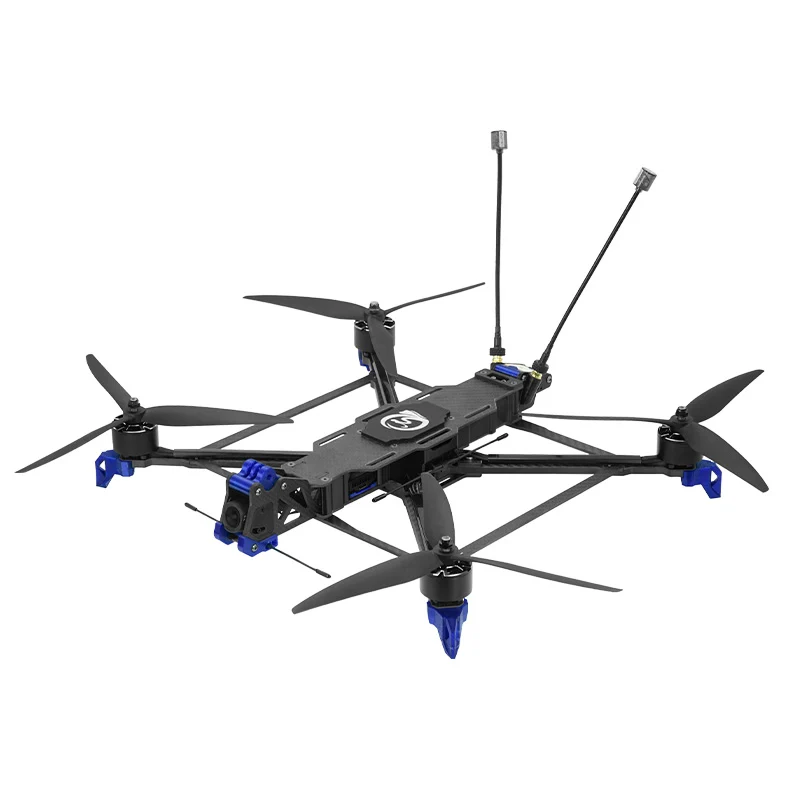

SEQURE SQFPV Flyson10 6S DJI O4 Pro FPV Drone - ELRS 2.4G Dual - AM32
ID: 1207410
zł3,602.24
Tax included
zł2,928.65 tax excl.
10-inch FPV drone for long-range and freestyle flights, equipped with a flight controller based on the STM32H743 microcontroller, a 32-bit 70 A 4-in-1 ESC, an ELRS 2.4G Dual receiver, and the DJI O4 Air Unit Pro digital video transmission system. The 6S version uses 3115 900KV motors, Gemfan 1050 propellers, and a Wide X-Link frame with a 430 mm wheelbase. The DJI O4 Pro system provides digital FPV video transmission and supports video recording up to 4K at 120 fps. Betaflight firmware and AM32 ESC firmware are installed by default. SEQURE SQFPV Flyson10 6S DJI O4 PRO | ELRS 2.4G DUAL | AM32
Description
SEQURE SQFPV Flyson10 FPV drone in the 6S DJI O4 Pro / ELRS 2.4G Dual / AM32 variant is designed for long-range FPV flights and applications requiring extended flight time. The flight controller uses an STM32H743 microcontroller and an ICM-42688P gyroscope, while Betaflight is installed by default and can be replaced with INAV. The 6S propulsion system uses 3115 900KV motors and Gemfan 1050 propellers, while the 32-bit 70 A 4-in-1 ESC runs AM32 firmware.
The design is optimized for long-range flights and high efficiency with 10-inch propellers. The Wide X-Link frame has a 430 mm wheelbase and 7 mm thick arms, while the wide X layout helps reduce low-frequency vibrations and the risk of resonance. Three battery strap mounting positions allow batteries of different sizes to be installed, while the large GPS antenna helps accelerate satellite acquisition. The manufacturer declares a flight time of up to 50 minutes, depending on the battery, configuration, and flight conditions. A Flyson10 version with a 2.8 W analog video transmission system is also available.
The drone is equipped with an ELRS 2.4G Dual receiver using a dual-antenna diversity configuration and the DJI O4 Air Unit Pro digital video transmission system. The system supports video recording at up to 4K at 120 fps, while the kit includes antennas intended for the DJI O4 Pro variant and two 18 cm LHCP antennas. Onboard hardware also includes an M10-25Q GPS module, buzzer, 16 MB Blackbox memory, AT7456E OSD chip, and a rear USB Type-C port for parameter configuration. The fixed XT90 connector simplifies power connection, while for the 6S variant the manufacturer recommends 6S LiPo or LiHV batteries with capacities from 5000 mAh to 16000 mAh.
Features
- Manufacturer: SEQURE / SQFPV
- Model: Flyson10
- Variant: 6S DJI O4 Pro
- Receiver: ELRS 2.4G Dual
- ESC firmware: AM32
- Frame structure: Wide X-Link
- Wheelbase: 430 mm
- Arm thickness: 7 mm
- Main controller: STM32H743
- Gyroscope: ICM-42688P
- FC firmware: Betaflight, INAV supported
- ESC: 32-bit 4-in-1, 70 A
- Motors: 3115 900KV
- Propellers: Gemfan 1050
- Video transmission system: DJI O4 Air Unit Pro
- Video recording: up to 4K / 120 fps
- RC receiver: ELRS 2.4G Dual
- Receiver antennas: dual-antenna diversity configuration
- Video transmission antennas: 2 × 18 cm, LHCP
- GPS: M10-25Q
- OSD: AT7456E
- Blackbox: 16 MB
- Buzzer: yes
- Operating voltage range: 4S-8S, 14-35 V
- Recommended battery for 6S version: 6S LiPo / LiHV, 5000-16000 mAh
- Battery connector: fixed XT90
- Configuration port: rear USB Type-C
- Declared flight time: up to 50 min
- Weight without battery: approximately 1215 g
Kit includes
- SEQURE SQFPV Flyson10 drone - 1 pc.
- Gemfan 1050 propellers - 2 sets
- 20 × 320 mm straps - 2 pcs.
- 18 cm LHCP antennas - 2 pcs.
- DJI O4 Pro antennas - 2 pcs.
- Silicone anti-slip battery pad - 1 pc.
- M5 × 20 half-round head hex screw - 1 pc.
- M5 nut - 1 pc.
- USB data cable - 1 pc.
- H2 wrench - 1 pc.
- H3 wrench - 1 pc.
- Propeller wrench - 1 pc.
- Instruction manual QR code - 1 pc.
1207410
Data sheet
- FPV drone type
- Long Range
- Drone size
- 10"
- Package type
- BNF
- RC control system
- ELRS 2.4 GHz
- Video transmission system
- DJI O4 Pro
- Power supply
- 6S
- GPS
- Yes
- Takeoff weight
- 500 g and above
