SEQURE SQFPV Heison 5X V2 6S DJI O4 Pro FPV Drone - ELRS 2.4G - AM32
ID: 1207413
zł3,221.05
Tax included
zł2,618.74 tax excl.

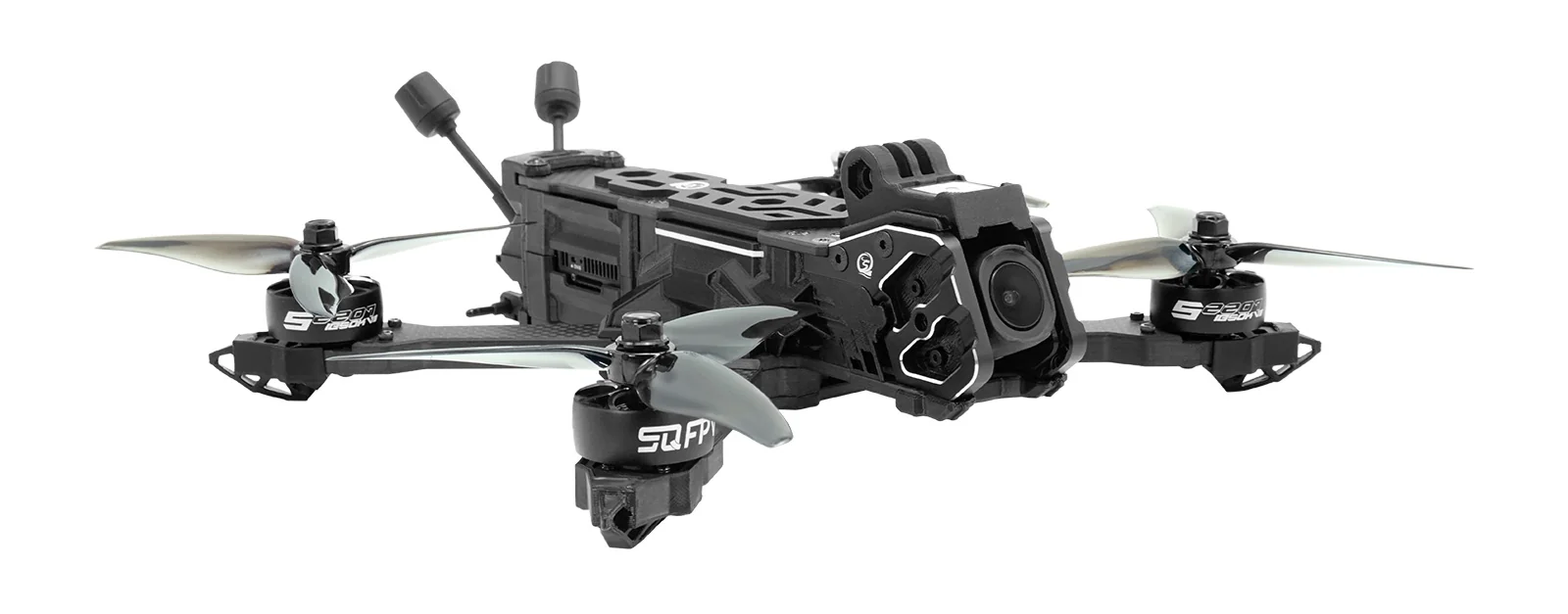

5-inch FPV drone designed for freestyle flying, equipped with a SEQURE H743 V2 flight controller based on the STM32H743 microcontroller, a 32-bit 70 A 4-in-1 ESC, an ELRS 2.4G receiver, and the DJI O4 Air Unit Pro digital video transmission system. The 6S version uses S2207 1850KV motors and Gemfan 51466 V2 propellers, while the Heison 5X V2 frame has a 220 mm wheelbase and 8 mm thick arms. The DJI O4 Pro system supports video recording up to 4K at 120 fps, while the ESC runs AM32 firmware. SEQURE SQFPV Heison 5X V2 6S DJI O4 PRO | ELRS 2.4G | AM32
Description
SEQURE SQFPV Heison 5X V2 FPV drone in the 6S DJI O4 Pro / ELRS 2.4G / AM32 variant uses a SEQURE H743 V2 flight controller with an STM32H743 microcontroller and an ICM-42688P gyroscope. The 6S propulsion system uses S2207 1850KV motors and Gemfan 51466 V2 propellers, while the 32-bit 70 A 4-in-1 ESC runs AM32 firmware. The 5X V2 frame has a 220 mm wheelbase and 8 mm thick arms with a reinforced structure designed for dynamic freestyle flights.
The design uses a fully enclosed central electronics cover and arms that protect the motor wires, reducing the risk of damage during flight and landing. The front section is made of 7075 aluminium, while TPU elements on both sides of the camera help reduce vibration transferred to the image. The drone also features an active cooling system with a front air intake and fan, LED strips, and a projector for displaying custom patterns during low-light flights. A version of the Heison 5X V2 with a 1.3 W analog video transmission system is also available.
The variant uses the DJI O4 Air Unit Pro digital video transmission system, which also integrates the camera and supports video recording up to 4K at 120 fps. Control is provided by an ELRS 2.4G receiver. The onboard equipment also includes a 10th-generation SEQURE M10-18 GPS module capable of searching for up to 32 satellites, a buzzer, 16 MB Blackbox memory, an AT7456E OSD chip, and a front USB Type-C port for parameter configuration. For the 6S version, the manufacturer recommends 6S LiPo or LiHV batteries with capacities from 1200 mAh to 1500 mAh, connected through a fixed XT60 connector.
Features
- Manufacturer: SEQURE / SQFPV
- Model: Heison 5X V2
- Variant: 6S DJI O4 Pro
- Receiver: ELRS 2.4G
- ESC firmware: AM32
- Frame type: Heison 5X V2
- Wheelbase: 220 mm
- Arm thickness: 8 mm
- Top plate thickness: 3 mm
- Bottom plate thickness: 3 mm
- Flight controller: SEQURE H743 V2
- FC firmware: SEQUREH7V2
- Microcontroller: STM32H743
- Gyroscope: ICM-42688P
- ESC: 32-bit 4-in-1, 70 A
- Motors: S2207 1850KV
- Propellers: Gemfan 51466 V2
- Video transmission system: DJI O4 Air Unit Pro
- Camera: DJI O4 Air Unit Pro
- Video recording: up to 4K / 120 fps
- RC receiver: ELRS 2.4G
- GPS: SEQURE M10-18
- Maximum number of searched satellites: up to 32
- OSD: AT7456E
- Blackbox: 16 MB
- Buzzer: yes
- Active cooling: yes
- Cooling fan: yes
- LED lighting: yes
- Projector: yes
- Operating voltage range: 4S-8S, 14-35 V
- Recommended battery for 6S version: 6S LiPo / LiHV, 1200-1500 mAh
- Battery connector: fixed XT60
- Configuration port: front USB Type-C
- Weight without battery: approximately 527 g
Kit includes
- SEQURE SQFPV Heison 5X V2 drone - 1 pc.
- Gemfan 51466 V2 propellers, gray - 2 sets
- 20 x 270 mm battery straps - 2 pcs.
- Projection film - 1 pc.
- Battery anti-slip pads - 2 pcs.
- M5 x 20 hex socket screw - 1 pc.
- M5 nut - 1 pc.
- USB data cable - 1 pc.
- H2 wrench - 1 pc.
- H3 wrench - 1 pc.
- Propeller wrench - 1 pc.
- Instructions - 1 pc.
1207413
Data sheet
- FPV drone type
- Freestyle
- Drone size
- 5"
- Package type
- BNF
- RC control system
- ELRS 2.4 GHz
- Video transmission system
- DJI O4 Pro
- Power supply
- 6S
- GPS
- Yes
- Takeoff weight
- 500 g and above
