SEQURE SQFPV Heison 5D V2 6S DJI O4 Pro FPV Drone - ELRS 2.4G - AM32
ID: 1207414
zł3,253.62
Tax included
zł2,645.22 tax excl.

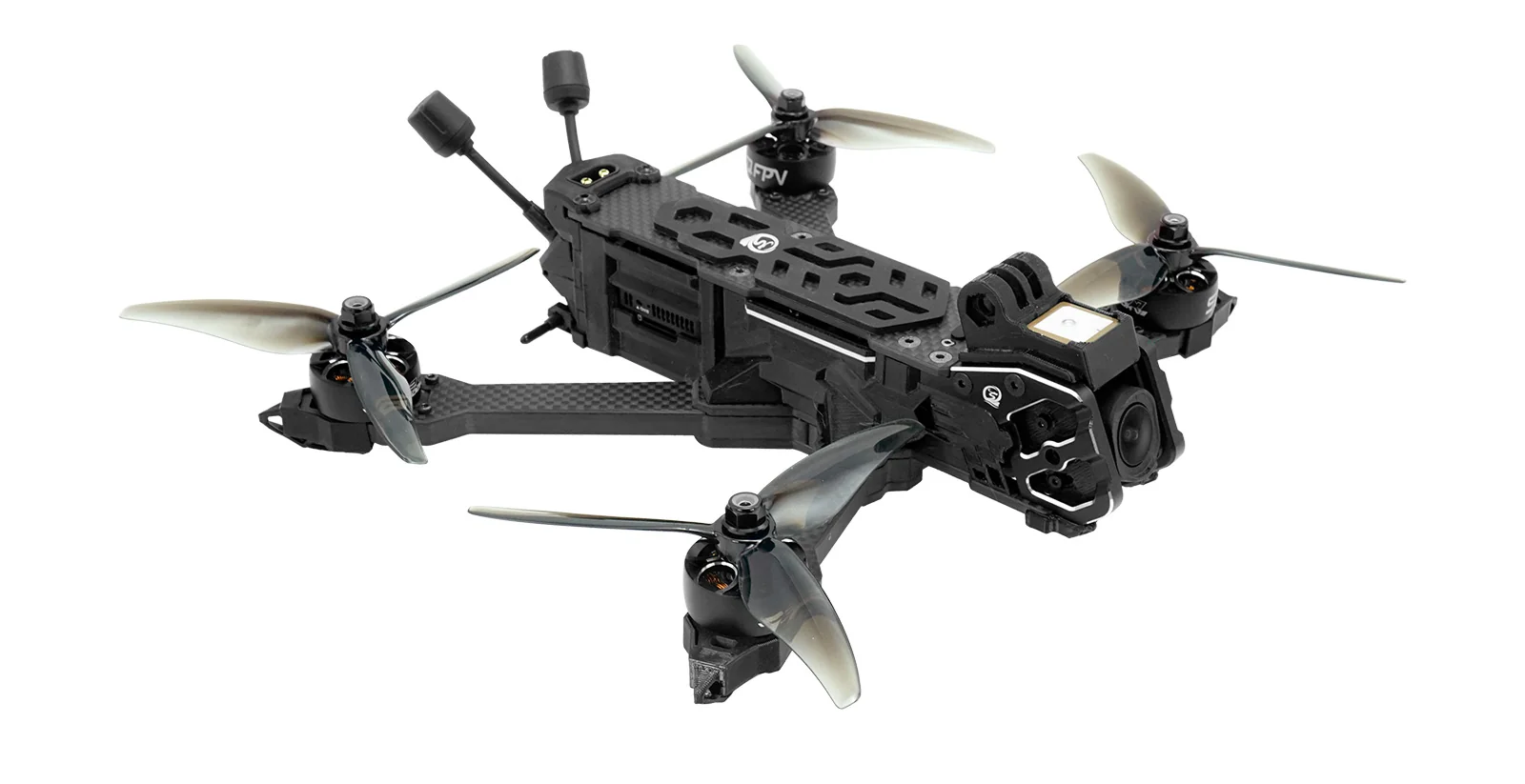

5-inch FPV drone for dynamic freestyle and cine FPV flying, equipped with a SEQURE H743 V2 flight controller featuring an STM32H743 microcontroller, 32-bit 70 A 4-in-1 ESC, ELRS 2.4G receiver, and DJI O4 Air Unit Pro digital video system. The 6S version uses S2207 1850KV motors and Gemfan 51466 V2 propellers. The Heison 5D V2 frame has a 225 mm wheelbase and 8 mm thick arms, while the DJI O4 Pro system supports video recording at up to 4K 120 fps. SEQURE SQFPV Heison 5D V2 6S DJI O4 PRO | ELRS 2.4G | AM32
Description
SEQURE SQFPV Heison 5D V2 FPV drone in the 6S DJI O4 Pro / ELRS 2.4G / AM32 version uses a SEQURE H743 V2 flight controller with an STM32H743 microcontroller and ICM-42688P gyroscope. The 6S propulsion system uses S2207 1850KV motors and Gemfan 51466 V2 propellers, while the 32-bit 70 A 4-in-1 ESC runs AM32 firmware. The 5D V2 frame has a 225 mm wheelbase, 8 mm thick arms, and a construction designed for dynamic FPV flying.
The construction uses an enclosed cover for the central electronics and full-coverage arms that protect the motor wiring, reducing the risk of damage during flight and landing. The front section uses 7075 aluminum, while TPU elements on both sides of the camera reduce vibration transfer to the image. The drone also features an active cooling system with a front air intake and fan, LED strips, and a projector for displaying custom patterns during night flights. The 5D frame geometry reduces propeller visibility in the ultra-wide field of view of the DJI O4 Pro. A Heison 5D V2 version with a 1.3 W analog video transmission system is also available.
The DJI O4 Air Unit Pro digital system provides video transmission and supports recording at up to 4K 120 fps. Control is provided by an ELRS 2.4G receiver. The onboard equipment also includes a 10th-generation SEQURE M10-18 GPS module designed to search for up to 32 satellites, a buzzer, 16 MB Blackbox memory, an AT7456E OSD chip, and a front-mounted USB Type-C port for parameter configuration. For the 6S version, the manufacturer recommends 6S LiPo or LiHV batteries with capacities from 1200 mAh to 1500 mAh, connected through a fixed XT60 connector.
Features
- Manufacturer: SEQURE / SQFPV
- Model: Heison 5D V2
- Manufacturer SKU: CPH5DV26SDO4PE24GA032
- Version: 6S DJI O4 Pro
- Receiver: ELRS 2.4G
- ESC firmware: AM32
- Frame type: Heison 5D V2
- Wheelbase: 225 mm
- Arm thickness: 8 mm
- Top plate thickness: 3 mm
- Bottom plate thickness: 3 mm
- Flight controller: SEQURE H743 V2
- FC firmware: SEQUREH7V2
- Microcontroller: STM32H743
- Gyroscope: ICM-42688P
- ESC: 32-bit 4-in-1, 70 A
- Motors: S2207 1850KV
- Propellers: Gemfan 51466 V2
- Video transmission system: DJI O4 Air Unit Pro
- Camera: DJI O4 Air Unit Pro
- Video recording: up to 4K / 120 fps
- RC receiver: ELRS 2.4G
- GPS: SEQURE M10-18
- Maximum number of searched satellites: up to 32
- OSD: AT7456E
- Blackbox: 16 MB
- Buzzer: yes
- Active cooling: yes
- Cooling fan: yes
- LED lighting: yes
- Projector: yes
- Operating voltage range: 4S-8S, 14-35 V
- Recommended battery for 6S version: 6S LiPo / LiHV, 1200-1500 mAh
- Battery connector: fixed XT60
- Configuration port: front-mounted USB Type-C
- Weight without battery: approximately 532 g
Kit includes
- SEQURE SQFPV Heison 5D V2 drone - 1 pc.
- Gemfan 51466 V2 propellers, gray - 2 sets
- 20 x 270 mm battery straps - 2 pcs.
- Projection film - 1 pc.
- Battery anti-slip pads - 2 pcs.
- M5 x 20 hex socket screw - 1 pc.
- M5 nut - 1 pc.
- USB data cable - 1 pc.
- H2 wrench - 1 pc.
- H3 wrench - 1 pc.
- Propeller wrench - 1 pc.
- Instructions - 1 pc.
1207414
Data sheet
- FPV drone type
- Freestyle
- Drone size
- 5"
- Package type
- BNF
- RC control system
- ELRS 2.4 GHz
- Video transmission system
- DJI O4 Pro
- Power supply
- 6S
- GPS
- Yes
- Takeoff weight
- 500 g and above
