SEQURE SQFPV Heison 5X V2 6S Analog 1.3W FPV Drone - ELRS 2.4G - AM32
ID: 1207411
zł2,376.09
Tax included
zł1,931.78 tax excl.

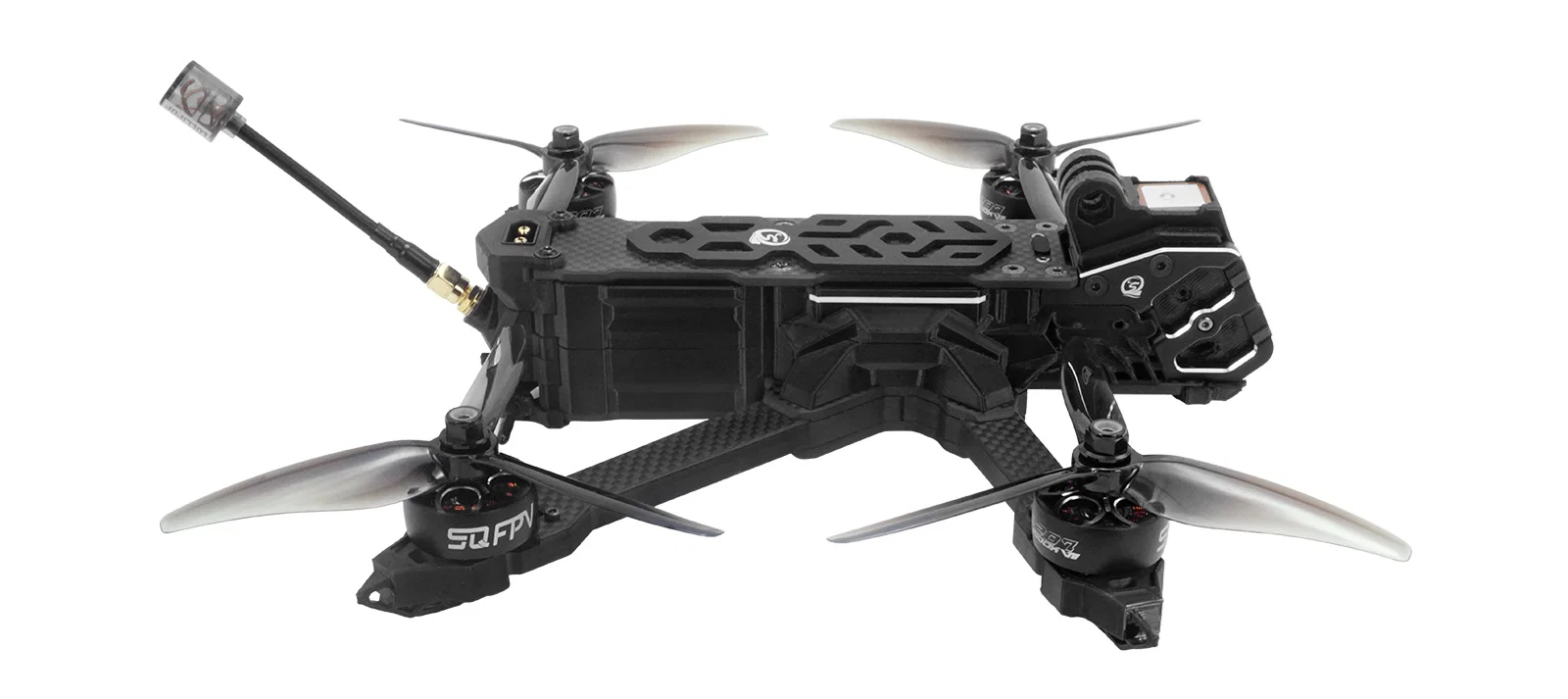

5-inch FPV drone designed for freestyle flying, equipped with a SEQURE H743 V2 flight controller based on the STM32H743 microcontroller, a 32-bit 70 A 4-in-1 ESC, an ELRS 2.4G receiver, and a 1.3 W analog video transmission system. The 6S version uses S2207 1850KV motors, a Caddx Ratel2 camera, and Gemfan 51466 V2 propellers. The Heison 5X V2 frame has a 220 mm wheelbase and 8 mm thick arms, while the ESC runs AM32 firmware. SEQURE SQFPV Heison 5X V2 6S ANALOG 1.3W | ELRS 2.4G | AM32
Description
SEQURE SQFPV Heison 5X V2 FPV drone in the 6S Analog 1.3W / ELRS 2.4G / AM32 variant uses a SEQURE H743 V2 flight controller with an STM32H743 microcontroller and an ICM-42688P gyroscope. The 6S propulsion system uses S2207 1850KV motors and Gemfan 51466 V2 propellers, while the 32-bit 70 A 4-in-1 ESC runs AM32 firmware. The 5X V2 frame has a 220 mm wheelbase and 8 mm thick arms with a reinforced structure designed for dynamic freestyle flights.
The design uses a fully enclosed central electronics cover and arms that protect the motor wires, reducing the risk of damage during flight and landing. The front section is made of 7075 aluminium, while TPU elements on both sides of the camera help reduce vibration transferred to the image. The drone also features an active cooling system with a front air intake and fan, LED strips, and a projector for displaying custom patterns during low-light flights. Heison 5X V2 with the DJI O4 Air Unit Pro digital video transmission system is also available.
The Analog variant uses a Caddx Ratel2 camera and a 1.3 W analog VTX video transmitter working with an 8 cm RHCP antenna. Control is provided by an ELRS 2.4G receiver. The onboard equipment also includes a 10th-generation SEQURE M10-18 GPS module capable of searching for up to 32 satellites, a buzzer, 16 MB Blackbox memory, an AT7456E OSD chip, and a front USB Type-C port for parameter configuration. For the 6S version, the manufacturer recommends 6S LiPo or LiHV batteries with capacities from 1200 mAh to 1500 mAh, connected through a fixed XT60 connector.
Features
- Manufacturer: SEQURE / SQFPV
- Model: Heison 5X V2
- Variant: 6S Analog 1.3W
- Receiver: ELRS 2.4G
- ESC firmware: AM32
- Frame type: Heison 5X V2
- Wheelbase: 220 mm
- Arm thickness: 8 mm
- Top plate thickness: 3 mm
- Bottom plate thickness: 3 mm
- Flight controller: SEQURE H743 V2
- FC firmware: SEQUREH7V2
- Microcontroller: STM32H743
- Gyroscope: ICM-42688P
- ESC: 32-bit 4-in-1, 70 A
- ESC firmware: AM32
- Motors: S2207 1850KV
- Propellers: Gemfan 51466 V2
- Video transmission system: analog VTX 1.3 W
- Camera: Caddx Ratel2
- Video transmission antenna: RHCP, 8 cm
- RC receiver: ELRS 2.4G
- GPS: SEQURE M10-18
- Maximum number of searched satellites: up to 32
- OSD: AT7456E
- Blackbox: 16 MB
- Buzzer: yes
- Active cooling: yes
- Cooling fan: yes
- LED lighting: yes
- Projector: yes
- Operating voltage range: 4S-8S, 14-35 V
- Recommended battery for 6S version: 6S LiPo / LiHV, 1200-1500 mAh
- Battery connector: fixed XT60
- Configuration port: front USB Type-C
- Weight without battery: approximately 510 g
Kit includes
- SEQURE SQFPV Heison 5X V2 drone - 1 pc.
- Gemfan 51466 V2 propellers, gray - 2 sets
- 20 x 270 mm battery straps - 2 pcs.
- Projection film - 1 pc.
- Battery anti-slip pads - 2 pcs.
- 8 cm RHCP antenna - 1 pc.
- M5 x 20 hex socket screw - 1 pc.
- M5 nut - 1 pc.
- USB data cable - 1 pc.
- H2 wrench - 1 pc.
- H3 wrench - 1 pc.
- Propeller wrench - 1 pc.
- Instructions - 1 pc.
1207411
Data sheet
- FPV drone type
- Freestyle
- Drone size
- 5"
- Package type
- BNF
- RC control system
- ELRS 2.4 GHz
- Video transmission system
- Analog 5.8 GHz
- Power supply
- 6S
- GPS
- Yes
- Takeoff weight
- 500 g and above
