Dron FPV SEQURE SQFPV Heison 5D V2 6S Analog 1.3W - ELRS 2.4G - AM32
ID: 1207412
zł2,376.09
Tax included
zł1,931.78 tax excl.

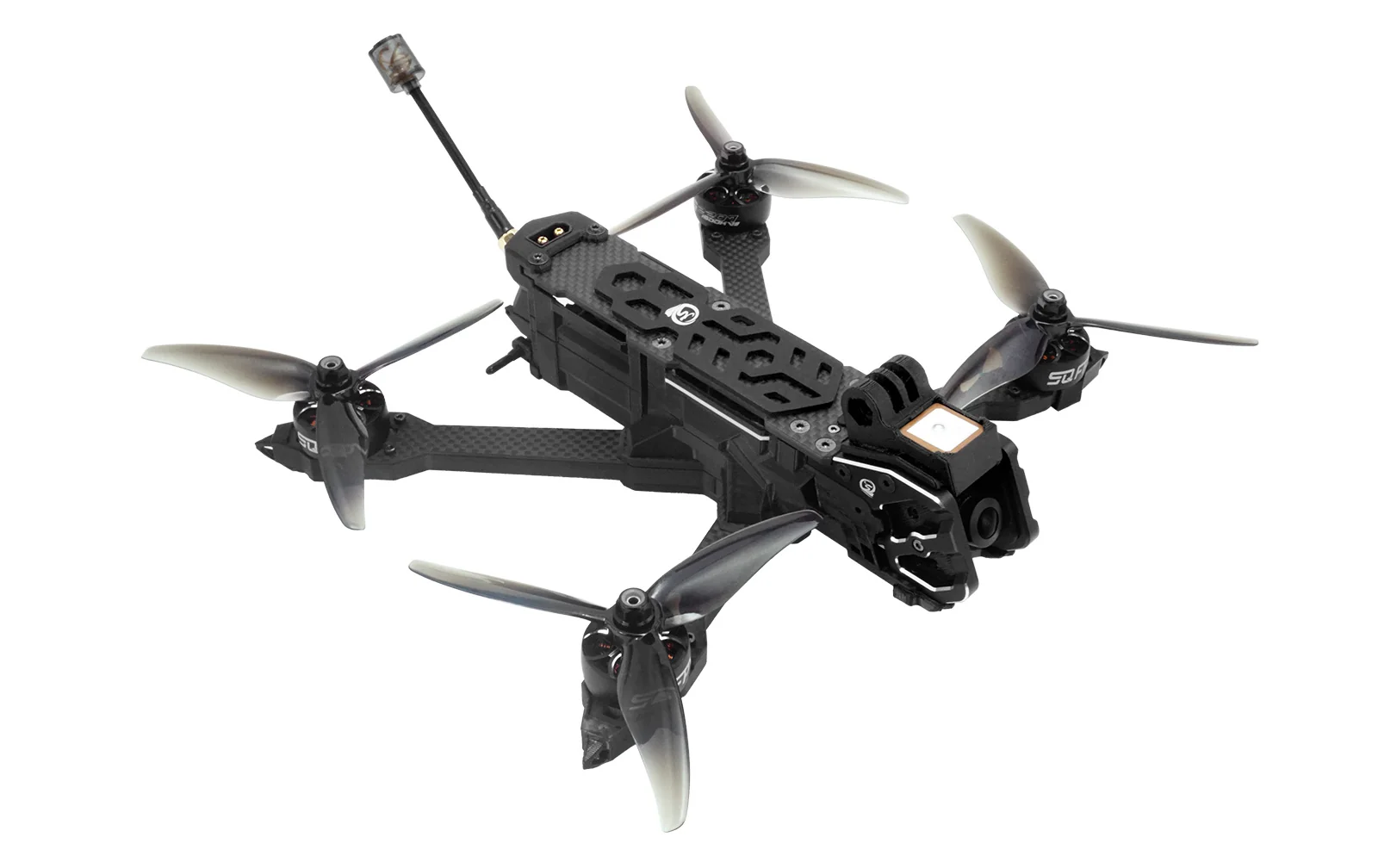

SEQURE SQFPV Heison 5D V2 6S Analog 1.3W FPV Drone - ELRS 2.4G - AM32 | 5-inch FPV drone designed for dynamic freestyle and cine FPV flights, equipped with a SEQURE H743 V2 flight controller featuring an STM32H743 microcontroller, a 32-bit 70A 4-in-1 ESC, an ELRS 2.4G receiver, and a 1.3W analog video transmission system. The 6S version uses S2207 1850KV motors, a Caddx Ratel2 camera, and Gemfan 51466 V2 propellers. The Heison 5D V2 frame has a 225mm wheelbase and 8mm thick arms, while the ESC runs AM32 firmware. SEQURE SQFPV Heison 5D V2 6S ANALOG 1.3W | ELRS 2.4G | AM32
Description
SEQURE SQFPV Heison 5D V2 FPV drone in the 6S Analog 1.3W / ELRS 2.4G / AM32 configuration uses the SEQURE H743 V2 flight controller with an STM32H743 microcontroller and ICM-42688P gyroscope. The 6S power system combines S2207 1850KV motors with Gemfan 51466 V2 propellers, while the 32-bit 70A 4-in-1 ESC runs AM32 firmware. The 5D V2 frame has a 225mm wheelbase, 8mm thick arms, and a construction designed for dynamic FPV flights.
The construction incorporates an enclosed central electronics compartment and arms that conceal the motor wiring, reducing the risk of damage during flight and landing. The front section is made of 7075 aluminium, while TPU elements positioned on both sides of the camera help reduce vibration transferred to the image. The drone also features an active cooling system with a front air intake and fan, LED strips, and a projector for displaying custom patterns during night flights. The arm layout characteristic of the 5D version is designed to reduce propeller visibility within the camera's wide field of view, particularly when configured with DJI O4 Pro. A Heison 5D V2 version with the DJI O4 Air Unit Pro digital video transmission system is also available.
The Analog version uses a Caddx Ratel2 camera and a 1.3W analog VTX paired with an 8cm RHCP antenna. An ELRS 2.4G receiver provides radio control. The onboard equipment also includes a 10th-generation SEQURE M10-18 GPS module capable of searching for up to 32 satellites, a buzzer, 16MB Blackbox memory, an AT7456E OSD chip, and a front USB Type-C port for parameter configuration. For the 6S version, the manufacturer recommends 6S LiPo or LiHV batteries with capacities from 1200mAh to 1500mAh, connected through a fixed XT60 connector.
Features
- Manufacturer: SEQURE / SQFPV
- Model: Heison 5D V2
- Version: 6S Analog 1.3W
- Receiver: ELRS 2.4G
- ESC firmware: AM32
- Frame type: Heison 5D V2
- Wheelbase: 225mm
- Arm thickness: 8mm
- Top plate thickness: 3mm
- Bottom plate thickness: 3mm
- Flight controller: SEQURE H743 V2
- FC firmware: SEQUREH7V2
- Microcontroller: STM32H743
- Gyroscope: ICM-42688P
- ESC: 32-bit 4-in-1, 70A
- Motors: S2207 1850KV
- Propellers: Gemfan 51466 V2
- Video transmission system: analog VTX, 1.3W
- Camera: Caddx Ratel2
- Video transmission antenna: RHCP, 8cm
- RC receiver: ELRS 2.4G
- GPS: SEQURE M10-18
- Maximum number of satellites searched: up to 32
- OSD: AT7456E
- Blackbox: 16MB
- Buzzer: yes
- Active cooling: yes
- Cooling fan: yes
- LED lighting: yes
- Projector: yes
- Operating voltage: 4S-8S, 14-35V
- Recommended battery for 6S version: 6S LiPo / LiHV, 1200-1500mAh
- Battery connector: fixed XT60
- Configuration port: front USB Type-C
- Weight without battery: approximately 515g
Kit includes
- SEQURE SQFPV Heison 5D V2 drone - 1 pc.
- Gemfan 51466 V2 propellers, gray - 2 sets
- 20 × 270mm battery straps - 2 pcs.
- Projection film - 1 pc.
- Battery anti-slip pads - 2 pcs.
- 8cm RHCP antenna - 1 pc.
- M5 × 20 hex socket screw - 1 pc.
- M5 nut - 1 pc.
- USB data cable - 1 pc.
- H2 wrench - 1 pc.
- H3 wrench - 1 pc.
- Propeller wrench - 1 pc.
- Instructions - 1 pc.
