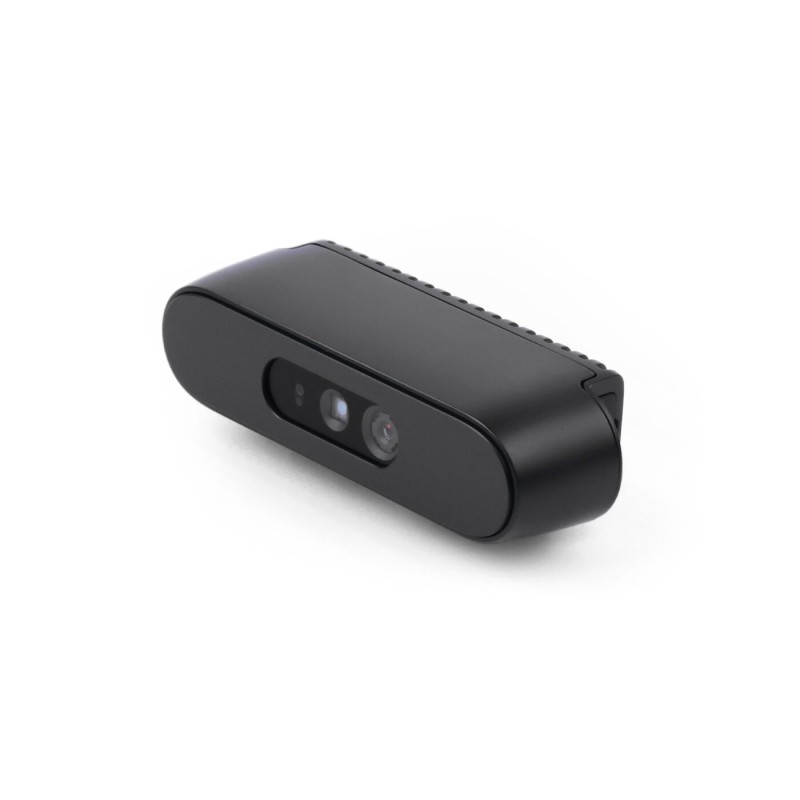

Orbbec Gemini 336 - depth sensing camera - SeeedStudio 100000774
ID: 1203693
zł1,908.68
Tax included
zł1,551.77 tax excl.
A 3D depth camera utilizing Active Stereo IR technology, providing precise depth maps from 0.1 m to over 20 m. It offers resolution up to 1280 × 800 at 30 fps with global shutter and relative accuracy of ≤1.5% at 2 m, making it ideal for robotics and autonomous systems. A built-in Full HD RGB camera, IMU, and the ability to synchronize multiple devices enable the creation of advanced vision systems. Power and data transmission are provided via USB-C, and its low power consumption of less than 3 W supports mobile and AI edge applications. SeeedStudio 100000774
Description
Orbbec Gemini 336 is an advanced depth-sensing camera from the Gemini 330 series, designed for demanding 3D applications in both indoor and outdoor environments. Building upon the capabilities of the Gemini 335, this model features enhanced active infrared imaging with a visible light cut filter, ensuring stable and high-quality depth data even in challenging lighting conditions such as strong sunlight, high dynamic range (HDR) scenes, or reflective surfaces. The device uses Active Stereo IR technology to generate precise depth maps over a wide range from 0.1 m to over 20 m. The recommended operating range of 0.26 to 3 m provides optimal accuracy for typical robotic and industrial applications.
The camera offers a 90° × 65° field of view for depth imaging and a resolution of up to 1280 × 800 at 30 fps with a global shutter, ensuring sharp images without motion distortion. The relative spatial measurement accuracy is ≤1.5% at 2 m, making it suitable for precise navigation and 3D reconstruction. The integrated RGB camera provides up to 1920 × 1080 at 30 fps with a wide 86° × 55° field of view. Support for multi-camera synchronization (both depth and RGB) enables advanced multi-sensor system design. An integrated IMU supports motion and orientation analysis. Data communication and power are delivered via a single USB 3.0 Type-C cable for simplified installation. With low power consumption (<3 W) and compact dimensions, the Gemini 336 is ideal for mobile robotics, autonomous navigation systems, 3D scanning, industrial inspection, and edge AI applications.
Features
- Depth technology: Active Stereo IR (Stereo Vision)
- Depth range: 0.10 m to 20 m+
- Recommended range: 0.26 m to 3 m
- Depth FOV: 90° × 65°
- Depth resolution: up to 1280 × 800 @ 30 fps
- Depth shutter: Global Shutter
- Relative accuracy: ≤1.5% (1280 × 800 @ 2 m)
- RGB camera: up to 1920 × 1080 @ 30 fps
- RGB FOV: 86° × 55°
- RGB image formats: YUYV, MJPEG
- RGB shutter: Rolling Shutter
- Integrated IMU
- Multi-camera synchronization support
- Data & power interface: USB 3.0 / USB 2.0 Type-C
- Power supply: DC 5V ≥ 1.5A
- Average power consumption: < 3 W
- IR cut filter
- Protection rating: IP5X
- Mounting: 1× 1/4"-20 thread (bottom), 2× M3 mounting holes (rear)
- SDK support: Orbbec SDK
- Operating temperature: -10°C to 45°C
- Dimensions: 90 × 25 × 30.7 mm
- Weight: 99 g
Kit includes
- Orbbec Gemini 336 Depth Camera
- USB Type-A to Type-C cable
- Mounting bracket
1203693
Data sheet
- Resolution
- 1280 x 800 px
- Interface
- USB typ C
- Sensor
- Inny
- IR filter
- Yes
- Lens assembly
- none
