3.5mm Jack TRRS 4-Pin Breakout Board - Soldered
ID: 1208278
zł6.67
Tax included
zł5.42 tax excl.

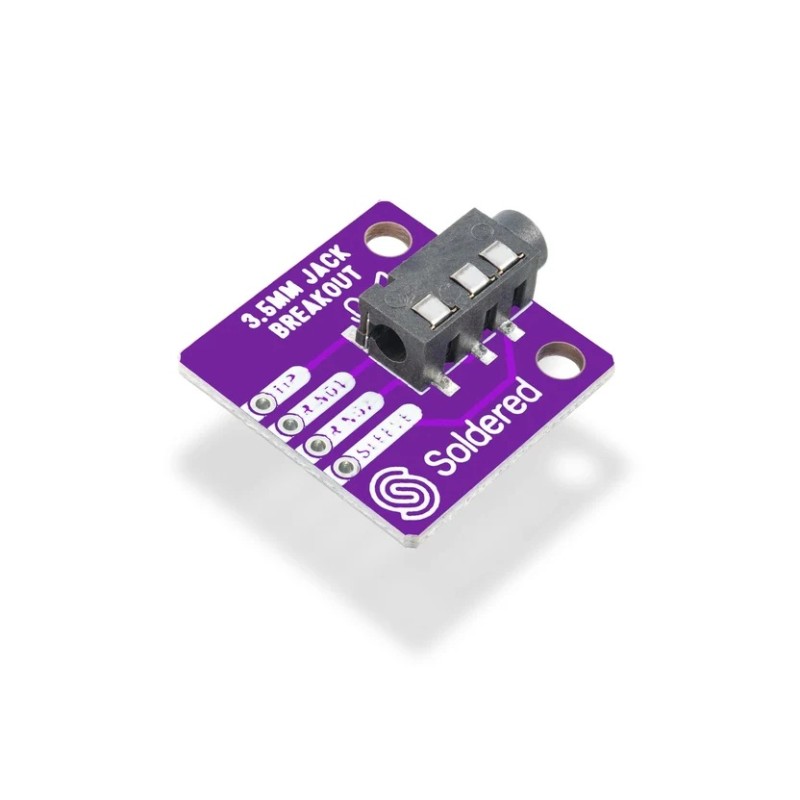

Breakout board with a female 3.5mm Jack connector providing access to four connections: ground, right audio channel, left audio channel, and microphone. The exposed pins simplify connecting headphones, headsets, and other audio devices to prototype circuits. Soldered 333088
Description
The device 3.5mm Jack breakout by Soldered provides access to the connections of a female 3.5mm Jack audio connector through a breakout board. The socket accepts a male 3.5mm connector in a 4-pin configuration, providing access to stereo audio signals and a microphone line.
The board exposes four connections: GND, right audio channel, left audio channel, and microphone. The breakout design simplifies connecting devices equipped with a 3.5mm Jack plug to prototypes and custom electronic circuits without soldering wires directly to the socket. Applications include audio circuits, headphone interfaces, and devices using headsets with a microphone.
The board measures 22 × 22mm and features two mounting holes. The manufacturer provides a pinout and open-source hardware files for integration into custom projects.
Features
- Audio connector
- Connector type: 3.5mm Jack
- Socket: female
- Supported plug: male 3.5mm Jack, 4-pin
- Connections: GND, right audio channel, left audio channel, microphone
- Mechanical parameters
- Board dimensions: 22 × 22mm
- Number of mounting holes: 2
1208278
