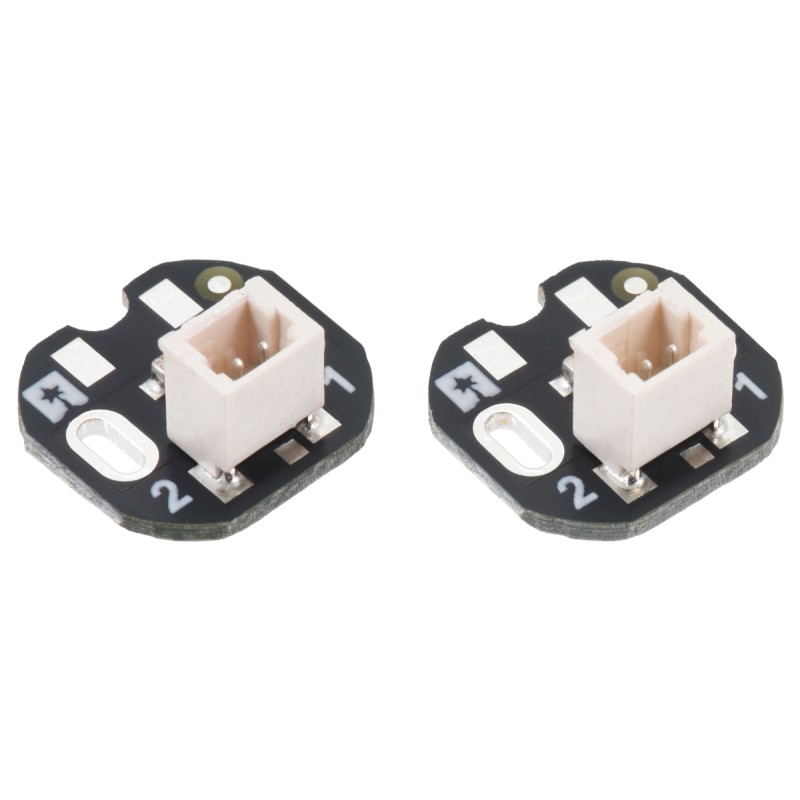

Pololu Adapter for Micro Metal Gearmotors – JST SH-Style Connector Board, 2-Pin, Back-Entry, 2pcs
ID: 1199884
zł7.39
Tax included
zł6.01 tax excl.
Two adapter boards with 2-pin back-entry JST SH connectors for single-shaft Pololu micro metal gearmotors. They provide a quick and reliable interface for power cables in compact electronic and robotic assemblies. Pololu 5096
Description
A set of two adapter boards with 2-pin male JST SH-type connectors (back-entry mounting), designed for Pololu micro metal gearmotors with single shaft (including HPCB versions). These boards simplify motor wiring by providing a connector interface instead of soldering wires directly to the motor terminals. The boards are mounted by soldering the motor leads to the plated slots. The connectors are compatible with standard female 2-pin JST SH cables. The back-entry layout keeps the connector parallel to the motor, making it easier to integrate into compact assemblies. Pololu 5096
Properties
- Connector type: JST SH, 2-pin, back-entry
- Compatibility: Pololu single-shaft micro metal gearmotors (not compatible with extended back shaft versions)
- Rated voltage: 50 V
- Rated current: 1 A
- Board dimensions: 10.2 × 9.6 × 5.2 mm
- Weight: 0.2 g
1199884
Data sheet
- Montage
- Brak
- Pitch
- 1 mm
- Number of pins
- 2
- Connector type JST
- SH
- Angled/straight
- Angled
- Dimension diagrams of the JST SH-Style Connector Boards for Micro Metal Gearmotors (387,04 kB)
- 3D model of the JST SH-Style Connector Board for Micro Metal Gearmotors, 2-Pin, Back-Entry (2,61 MB)
- 3D model of the JST SH-Style Connector Board for Micro Metal Gearmotors, 2-Pin, Side-Entry (2,63 MB)
- 3D models of Micro Metal Gearmotors (57,2 MB)
- Drill guide for the JST SH-Style Connector Boards for Micro Metal Gearmotors (43,42 kB)
