2D Laser Scanner RPLIDAR A1M8-R6 – 360°, 12 m range - Seeed Studio 114992561
ID: 1200457
zł493.18
Tax included
zł400.96 tax excl.
RPLIDAR A1M8-R6 is a compact 2D laser scanner for use in robot navigation, localization, and environment mapping, offering 360° scanning with a range of up to 12 m and sampling up to 8000 Hz. Ideal for SLAM systems and indoor environments.
Description
RPLIDAR A1M8-R6 is an affordable 2-dimensional laser scanning solution developed by SLAMTEC, enabling a full 360° scan within a range of up to 12 meters. By generating a real-time point cloud, the scanner is used in mobile robotics, localization, environment mapping, and spatial modeling. The sampling frequency reaches up to 8000 times per second, which is the highest parameter in its price class.
The device is based on the laser triangulation method and achieves optimal performance in indoor environments and sheltered outdoor spaces without direct sunlight. Thanks to OPTMAG technology, it ensures extended lifespan and stable operation without contact-based signal transmission.
An ideal solution for SLAM projects, autonomous navigation, obstacle avoidance, and environment scanning for analytical purposes or 3D reconstruction.
Properties
- Measuring range: 0.15 – 12 m (for white objects)
- Scanning range: 360°
- Distance resolution: < 0.5 mm
- Angular resolution: ≤ 1°
- Sampling frequency: 2000–8000 Hz
- Sampling time: 0.5 ms
- Configurable rotational speed: 1–10 Hz (typically 5.5 Hz)
- Technology: laser triangulation
- OPTMAG technology – contactless data transmission system
- Motor power supply: built-in PWM driver
- Dimensions: 98.5 × 70 × 60 mm
- Gross weight: 170 g
- Operating environment: indoor
Set includes
- 1 × RPLIDAR A1 scanner with built-in motor driver
- 1 × USB adapter
- 1 × RPLIDAR A1 communication cable
1200457
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
360-degree laser scanner (LIDAR), with a range of up to 12 meters and measurement frequency up to 10 Hz (optimal value 5.5 Hz). DFRobot DFR0315
zł554.63
24h
Available quantity: 6
Available
A modern laser scanner that integrates the advantages of triangulation and DTOF. It offers a measuring range of up to 12 meters with a low dead zone of 5 cm. The scanning frequency is 10 Hz (600 rpm) and the sampling rate is 5000, which allows an angular resolution of 0.72° to be achieved. Waveshare RPLIDAR C1
zł360.39
24h
Available quantity: 2
Available

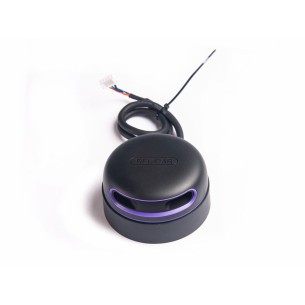

RPLiDAR A3M1 enables 2D scanning in a 360° range with a frequency of up to 16,000 measurements per second and a range of up to 25 m, offering high precision in indoor and outdoor applications. Thanks to OPTMAG technology and a compact design, it is recommended for robotics, SLAM systems, mapping, and environment analysis.
zł2,502.68
4 weeks
No product available!
Laser scanner using ToF technology. It takes measurements at up to 10 revolutions per second and has a range of up to 25 m. Waveshare DTOF LIDAR STL27L
zł728.92
4 weeks
No product available!
360-degree laser scanner (LIDAR) with a range of up to 10 meters and a measurement frequency of up to 12 Hz. LIDAR X4
Regular pricezł600.84zł449.12
24h
Available quantity: 1
Available

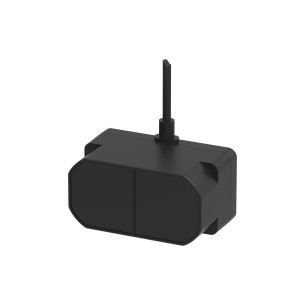

TFmini Plus is a ToF LiDAR sensor with a range of up to 12 m, operating frequency up to 1000 Hz, and accuracy up to ±5 cm. With UART, I2C, and IO interfaces, it is suitable for robotics, UAVs, and industrial applications, providing fast and stable real-time measurements.
zł243.48
4 weeks
No product available!
Laser scanner (Lidar) 360 degrees with a measurement frequency of 10 Hz and 8000 measurements / second. It reaches a range of up to 12 m and a measurement error of 1%. Sparkfun SEN14756
zł3,210.12
24h
Available quantity: 1
Available

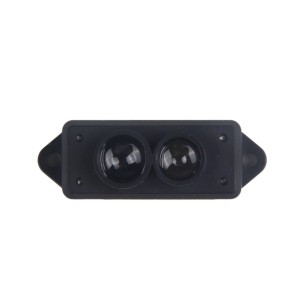

The TFmini S module is a compact ToF LiDAR sensor with a range of up to 12 m, offering high precision and a measurement frequency of 100 Hz. With UART and I2C interfaces, it is used in UAVs, robotics, and obstacle avoidance systems, providing reliable real-time measurements.
zł218.51
4 weeks
No product available!
RPLIDAR A2M8 R4 (LIDAR) laser scanner 360 degrees, 10 Hz, 4000 measurements / second, range up to 12 m, measurement error at the level of 0.1%, safe for eyesight. DFRobot DFR0445
zł1,124.63
24h
Available quantity: 2
Available
Laser scanner using ToF technology. It takes measurements at 2 to 8 revolutions per second and has a range of up to 8 m. It communicates via a UART interface. Waveshare D200 LiDAR Kit
zł255.59
24h
Available quantity: 2
Available
Laser scanner using 360-degree measurement, taking samples at a frequency of up to 16 kHz. It is capable of generating 2D point map information within a 12-meter radius. Seeed Studio 114110128
zł1,197.98
4 weeks
No product available!
Laser scanner using ToF technology. It performs measurements with a frequency of 5 to 13 turns per second and has a range of up to 12 m. Waveshare DTOF LIDAR LD19
zł412.14
4 weeks
No product available!

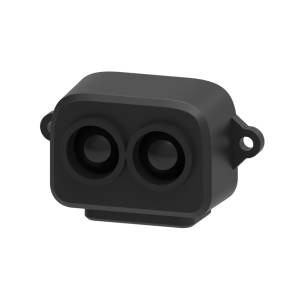

The TF-Luna LiDAR module is a lightweight and energy-efficient distance sensor based on TOF technology, providing stable measurements up to 8 m with a frequency of 100 Hz. With UART and I2C interfaces, it is suitable for robotics, UAVs, security systems, and industrial applications.
zł112.37
4 weeks
No product available!

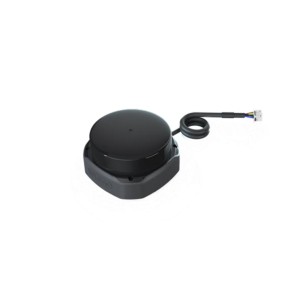

RPLiDAR S2 Laser Scanner Seeed Studio 114992738 enables fast and precise distance measurements in a 360° range, creating a point cloud of the surroundings. Thanks to ToF technology, high sampling frequency, and compact design, it proves effective in mobile robotics, SLAM systems, and industrial applications requiring reliable continuous operation. Seeed Studio 114992738
