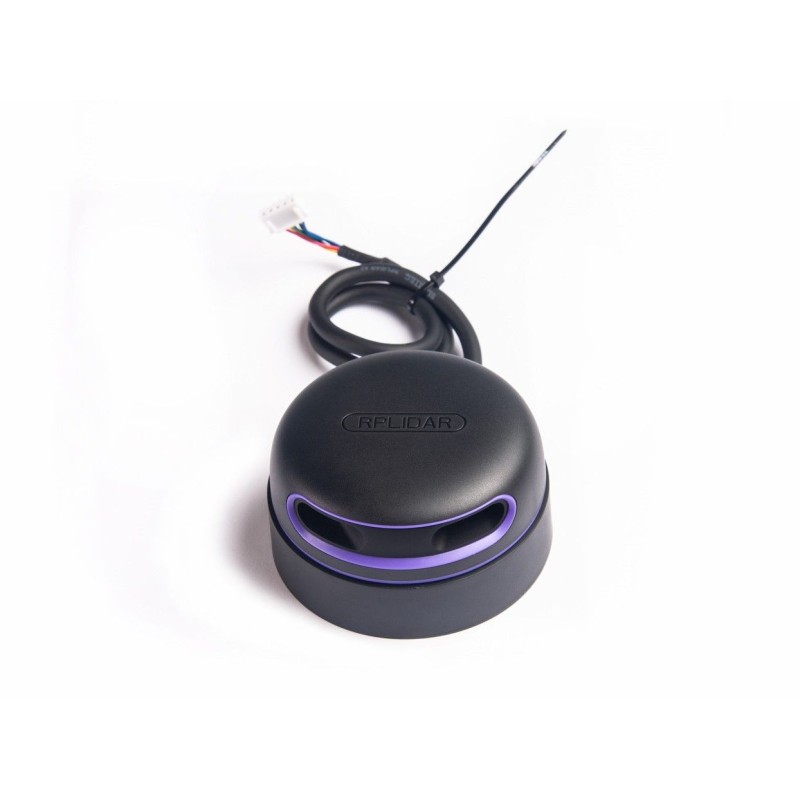

2D Laser Scanner RPLiDAR A3M1 – 360°, 25 m range, 16 kHz - Seeed Studio 110991068
ID: 1200467
zł2,502.68
Tax included
zł2,034.70 tax excl.
RPLiDAR A3M1 enables 2D scanning in a 360° range with a frequency of up to 16,000 measurements per second and a range of up to 25 m, offering high precision in indoor and outdoor applications. Thanks to OPTMAG technology and a compact design, it is recommended for robotics, SLAM systems, mapping, and environment analysis.
Description
RPLiDAR A3M1 is an advanced 2D laser scanner from SLAMTEC, enabling full 360° environment scanning with a maximum range of 25 m. The device performs up to 16,000 measurements per second, and the scanning frequency can be adjusted between 5–20 Hz. With patented OPTMAG technology, it eliminates the durability limitations of typical mechanical lidars, ensuring stable operation for many years.
The scanner offers two operating modes: enhanced mode, providing maximum range and measurement resolution in indoor environments, and outdoor mode, featuring increased resistance to sunlight interference. In standard mode, the angular resolution achieved is 0.225°. A compact housing with a height of only 41 mm and a brushless motor make the device suitable for mobile robots, SLAM systems, and 3D mapping applications.
Each module is factory tested and complies with IEC-60825 Class 1 safety standard, ensuring safe use.
Properties
- Measuring range:
- white objects: up to 25 m
- black objects: up to 10 m (enhanced mode) / up to 8 m (outdoor mode)
- Sampling frequency: up to 16 kHz
- Scanning frequency: 5–20 Hz (typically 15 Hz)
- Angular resolution: 0.225° (enhanced) / 0.36° (outdoor)
- Technology: laser triangulation, OPTMAG (contactless data and power transmission)
- Motor: brushless, low-noise
- Compatibility: SLAMTEC SDK (supports legacy protocols)
- Communication interface: TTL UART, 256,000 bps
- Power supply: DC cable included
- Dimensions: 76 × 76 × 41 mm
- Weight: 190 g
- Laser safety class: IEC-60825 Class 1
Set includes
- 1 × RPLiDAR A3M1 scanner (with built-in PWM driver)
- 1 × USB adapter
- 1 × micro USB cable
- 1 × DC power cable
