The TF-Luna LiDAR module is a lightweight and energy-efficient distance sensor based on TOF technology, providing stable measurements up to 8 m with a frequency of 100 Hz. With UART and I2C interfaces, it is suitable for robotics, UAVs, security systems, and industrial applications.

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

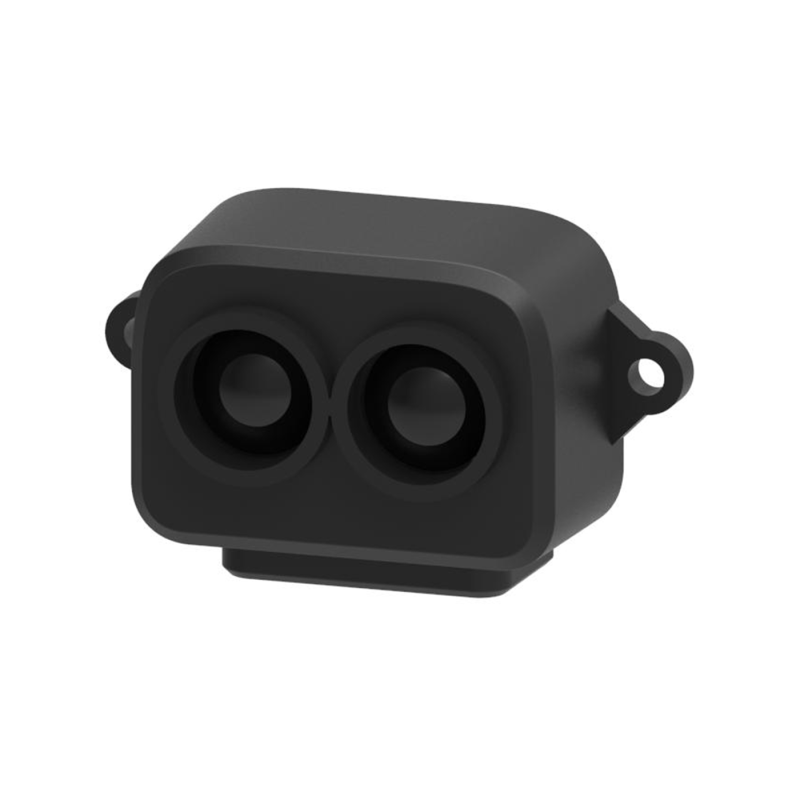

TF-Luna is a compact single-point LiDAR sensor based on the time-of-flight (TOF) principle. It enables precise and stable distance measurements in the range of 0.2 m to 8 m at frequencies up to 100 Hz. With its small size, low weight (<5 g), and low power consumption, the module is especially useful in mobile applications such as robotics and UAVs.

The device uses built-in algorithms adapted to various environmental conditions and provides resistance to light interference up to 70 klux. Communication is carried out via UART or I2C (LVTTL 3.3 V), and parameter configuration is possible depending on project requirements. The sensor is suitable for obstacle avoidance systems, flight altitude control, monitoring, and industrial measurements.

Properties

  • Operating principle: time-of-flight (TOF) measurement
  • Measuring range: 0.2 – 8 m (for 90% reflectivity objects)
  • Accuracy:
  • ±6 cm in the range 0.2 – 3 m
  • ±2% in the range 3 – 8 m
  • Resolution: 1 cm
  • Measuring frequency: 100 Hz
  • Light source: VCSEL, wavelength 850 nm
  • Laser safety class: Class 1 (IEC60825)
  • Field of view (FOV): 2°
  • Supply voltage: 5 V ±0.1 V
  • Average current consumption: ≤70 mA
  • Power consumption: ≤0.35 W
  • Peak current: 150 mA
  • Communication interfaces: UART, I2C (LVTTL 3.3 V)
  • Dimensions: 35 × 21.25 × 13.5 mm
  • Weight: <5 g
  • Housing: ABS + PC
  • Operating temperature: -10°C to 60°C
  • Storage temperature: -20°C to 75°C
  • Ambient light immunity: up to 70 klux

Set includes

  • 1 × TF-Luna LiDAR modul
  • 1 × 6-pin communication cable
