- New

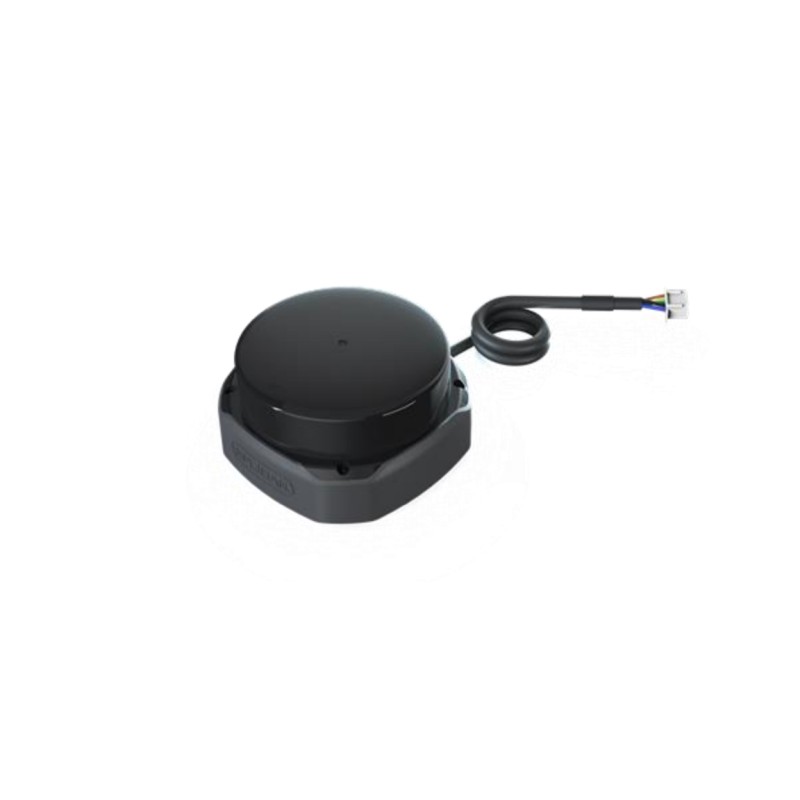

RPLiDAR S2 – 2D 360° laser scanner with a range of 30 m - Seeed Studio 114992738
ID: 1200454
zł1,666.59
Tax included
zł1,354.95 tax excl.
RPLiDAR S2 Laser Scanner Seeed Studio 114992738 enables fast and precise distance measurements in a 360° range, creating a point cloud of the surroundings. Thanks to ToF technology, high sampling frequency, and compact design, it proves effective in mobile robotics, SLAM systems, and industrial applications requiring reliable continuous operation. Seeed Studio 114992738
Description
RPLiDAR S2 Seeed Studio is a low-cost new-generation laser scanner enabling two-dimensional distance measurement in a 360° range on a plane with a maximum range of 30 m for light objects and 10 m for dark objects. The device generates a point cloud of the surroundings, which allows the creation of space maps and the execution of localization and navigation tasks. Thanks to Time-of-Flight measurement technology and the acquisition mechanism developed by SLAMTEC, the sensor performs up to 32,000 measurements per second. The applied contactless transmission of power and signal eliminates durability limitations found in traditional lidars, ensuring long-term and stable operation. The S2 offers high resistance to lighting changes, stable measurements on different surfaces, and proves effective in both indoor and outdoor environments. It is used in mobile robotics, mapping, SLAM, monitoring systems, and smart toys.
Properties
- Two-dimensional 360° laser scanner
- Measurement range: 30 m (light objects), 10 m (dark objects)
- Sampling frequency: 32 kHz
- Scanning frequency: 10 Hz
- Angular resolution: 0.12°
- Measurement accuracy: ±5 cm
- Communication interface: TTL UART (1 Mb/s)
- Power supply: 5 V DC
- Current consumption: 40 mA (sleep mode), 400 mA (operation), starting current 1500 mA
- Communication signal voltage: 3.3 V
- Operating temperature range: -10°C to 50°C
- Weight: 190 g
- Class 1 laser (IEC-60825, eye safe)
Included
- RPLiDAR S2 module with built-in PWM motor driver x1
- USB adapter x1
- Micro-USB cable x1
- Power cable x1
1200454
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
360-degree laser scanner (LIDAR), with a range of up to 12 meters and measurement frequency up to 10 Hz (optimal value 5.5 Hz). DFRobot DFR0315
zł554.63
24h
Available quantity: 6
Available
Laser scanner using ToF technology. It takes measurements at 2 to 8 revolutions per second and has a range of up to 8 m. It communicates via a UART interface. Waveshare D200 LiDAR Kit
zł255.59
24h
Available quantity: 2
Available
A modern laser scanner that integrates the advantages of triangulation and DTOF. It offers a measuring range of up to 12 meters with a low dead zone of 5 cm. The scanning frequency is 10 Hz (600 rpm) and the sampling rate is 5000, which allows an angular resolution of 0.72° to be achieved. Waveshare RPLIDAR C1
zł360.39
24h
Available quantity: 2
Available
Laser scanner using ToF technology. It performs measurements with a frequency of 5 to 13 turns per second and has a range of up to 12 m. Waveshare DTOF LIDAR LD19
zł412.14
4 weeks
No product available!
The TF-Luna LiDAR module is a lightweight and energy-efficient distance sensor based on TOF technology, providing stable measurements up to 8 m with a frequency of 100 Hz. With UART and I2C interfaces, it is suitable for robotics, UAVs, security systems, and industrial applications.
zł112.37
4 weeks
No product available!
Laser scanner measuring 360 degrees, taking samples at a frequency of up to 5 kHz. It is capable of generating 2D point map information within a 12-meter radius. Waveshare D500 LiDAR Kit
zł419.26
24h
Available quantity: 4
Available
RPLIDAR A2M8 R4 (LIDAR) laser scanner 360 degrees, 10 Hz, 4000 measurements / second, range up to 12 m, measurement error at the level of 0.1%, safe for eyesight. DFRobot DFR0445
zł1,124.63
24h
Available quantity: 2
Available
Laser scanner using 360-degree measurement, taking samples at a frequency of up to 16 kHz. It is capable of generating 2D point map information within a 12-meter radius. Seeed Studio 114110128
zł1,197.98
4 weeks
No product available!
TFmini Plus is a ToF LiDAR sensor with a range of up to 12 m, operating frequency up to 1000 Hz, and accuracy up to ±5 cm. With UART, I2C, and IO interfaces, it is suitable for robotics, UAVs, and industrial applications, providing fast and stable real-time measurements.
zł243.48
4 weeks
No product available!
Advanced 2D laser scanner (LIDAR) with a 360-degree range. It offers a range of up to 12 meters and a dead zone of 0.05 meters and a scanning frequency of 10 Hz (600 rpm), which gives a sampling speed of 5 kHz and an angular resolution of 0.72°. Seeed Studio 101090061
zł358.25
24h
Available quantity: 1
Available
Laser scanner using ToF technology. It takes measurements at up to 10 revolutions per second and has a range of up to 25 m. Waveshare DTOF LIDAR STL27L
zł728.92
4 weeks
No product available!
360-degree laser scanner (LIDAR) with a range of up to 10 meters and a measurement frequency of up to 12 Hz. LIDAR X4
Regular pricezł600.84zł449.12
24h
Available quantity: 1
Available
The TFmini S module is a compact ToF LiDAR sensor with a range of up to 12 m, offering high precision and a measurement frequency of 100 Hz. With UART and I2C interfaces, it is used in UAVs, robotics, and obstacle avoidance systems, providing reliable real-time measurements.
zł218.51
4 weeks
No product available!
RPLiDAR A3M1 enables 2D scanning in a 360° range with a frequency of up to 16,000 measurements per second and a range of up to 25 m, offering high precision in indoor and outdoor applications. Thanks to OPTMAG technology and a compact design, it is recommended for robotics, SLAM systems, mapping, and environment analysis.
zł2,502.68
4 weeks
No product available!

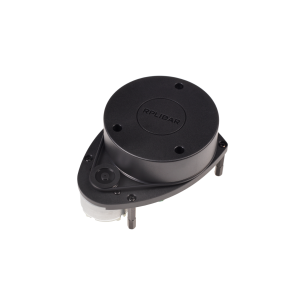

RPLIDAR A1M8-R6 is a compact 2D laser scanner for use in robot navigation, localization, and environment mapping, offering 360° scanning with a range of up to 12 m and sampling up to 8000 Hz. Ideal for SLAM systems and indoor environments.
