Gravity: I2C LCD1602 Arduino LCD Display Module - 16x2 LCD module (gray)
ID: 581643
5906623434046
zł50.41
Tax included
zł40.98 tax excl.

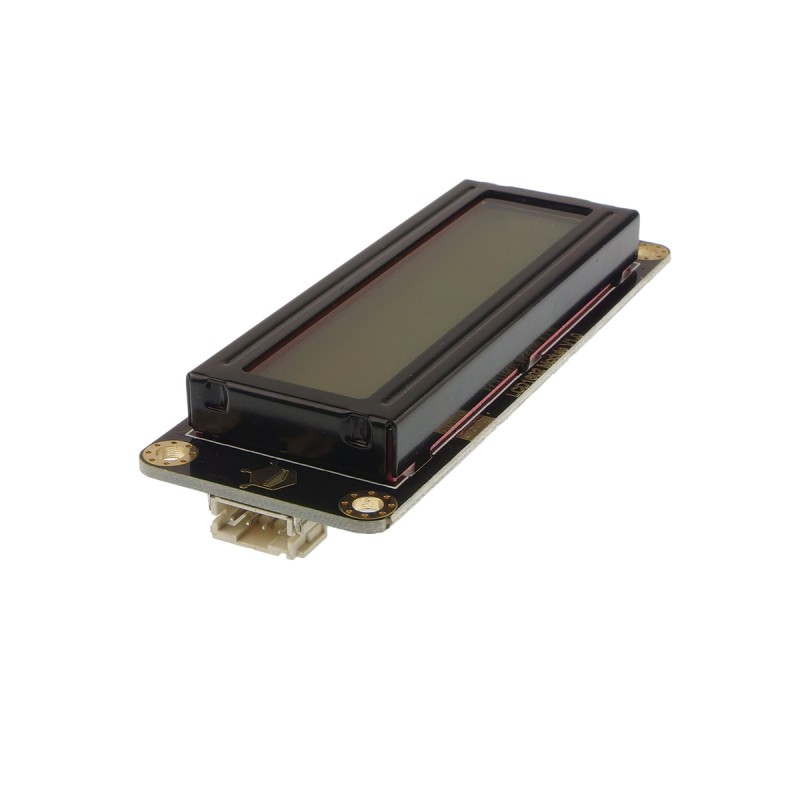

Module with LCD display 16x2 characters with gray backlight. It is supplied with the voltage from 3.3 V to 5 V and communicates via the I2C interface. DFRobot DFR0557
Description
Module with LCD display 16x2 characters with gray backlight. It is supplied with the voltage from 3.3 V to 5 V and communicates via the I2C interface. The display has adjustable backlight brightness and is controlled using a dedicated library. The Wiki page contains the manual and sample programs.
Features
- Display type: LCD 16x2 characters
- Interface: I2C
- Backlight: gray
- Text color: black
- Voltage: 3.3 V to 5 V
- Current consumption: ≤20mA
- Working temperature: -20 to 70°C
- Dimensions: 87 x 32 x 13 mm
Kit contains
- Module with LCD display 16x2 I2C (gray)
- 4-pin Gravity cable
581643
Data sheet
- Screen type
- LCD alfanumeric
- Diagonal (inch)
- Nie dotyczy
- Resolution
- 2 x 16 characters
- Interface
- I2C
- Touch
- No
