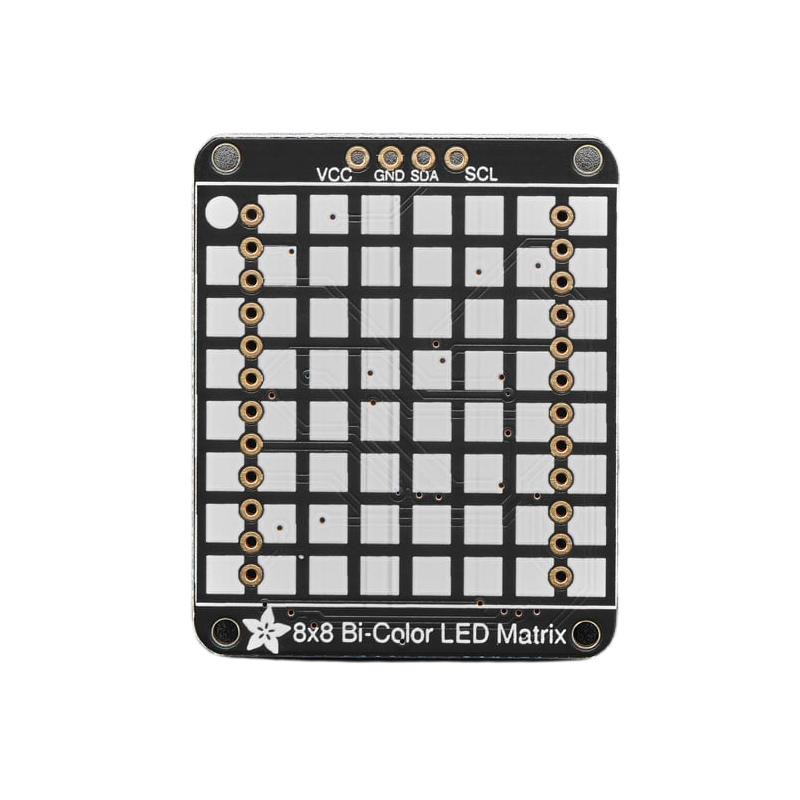

Main view
search
  • Main view
  • Full Set – Front View
ID: 203172
zł80.32
Tax included

zł65.30 tax excl.

Compact dual-color 8×8 LED matrix with a 1.2" diagonal, intended for displaying graphics and symbols in three colors (red, green, with the possibility of obtaining yellow-orange). An integrated driver with brightness control, I²C interface, and STEMMA QT connectors simplify integration of the module with microcontroller-based projects. Adafruit Bicolor LED Square Pixel Matrix with I2C Backpack

24h
Available
Available quantity: 1
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

The Adafruit Bicolor LED Square Pixel Matrix with I2C Backpack module is intended for building compact LED displays controlled via the I2C bus. The matrix with an 8×8 resolution and a 1.2" diagonal contains 128 LEDs in two colors—red and green—with the possibility of obtaining a third color (yellow-orange) by driving both colors simultaneously. The applied control chip performs multiplexing, current stabilization, and brightness control, which eliminates the need to use a large number of microcontroller signal lines. The module communicates via the I2C interface, and address jumpers allow connecting multiple displays to a single bus. Built-in STEMMA QT connectors facilitate quick, solderless connection to compatible development boards.

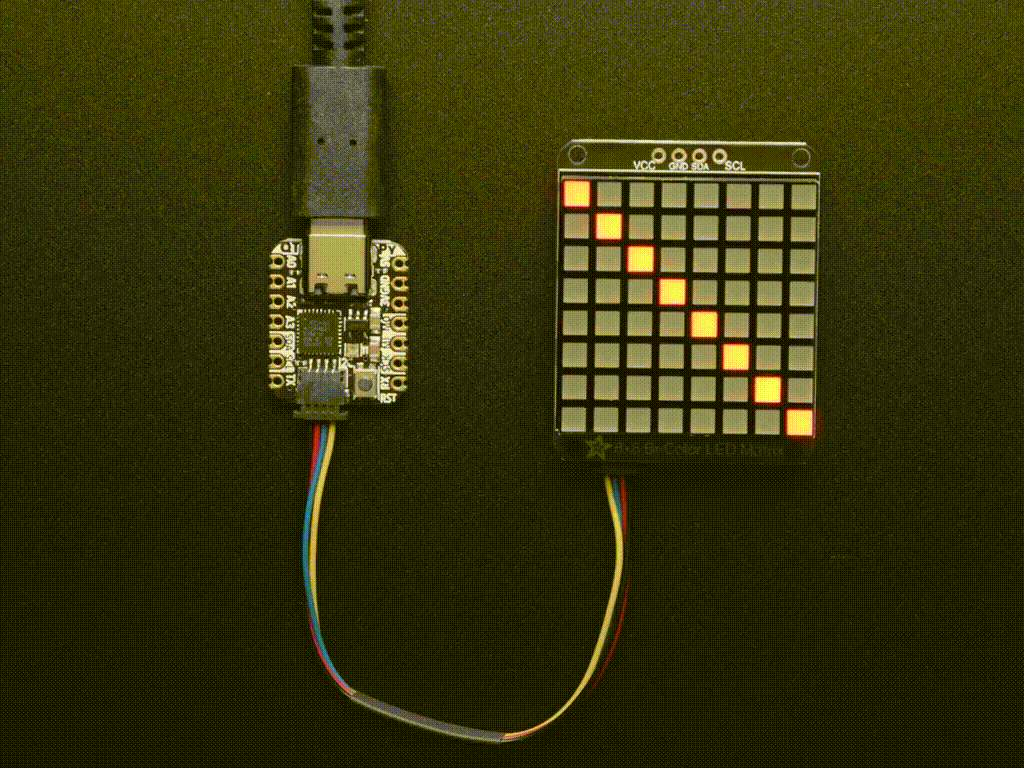

Short video presenting the product.


Features

  • LED matrix 8×8 with a 1.2" diagonal
  • dual-color LEDs: red and green, possibility of obtaining a third color
  • I2C communication interface
  • I2C address 0x70–0x77 selectable using jumpers
  • built-in driver with multiplexing and constant-current LED supply
  • 16-level brightness control
  • STEMMA QT connectors on I2C lines
  • possibility of connecting multiple modules on one bus
  • resolution: 8 × 8
  • number of LEDs: 128
  • board dimensions: 33 × 41 × 4 mm
  • mounting hole spacing: 28 × 36 mm
  • interface: I2C

Kit includes

  • assembled I2C Backpack module
  • Bi-color LED matrix 1.2" 8×8
  • 4-pin goldpin header
