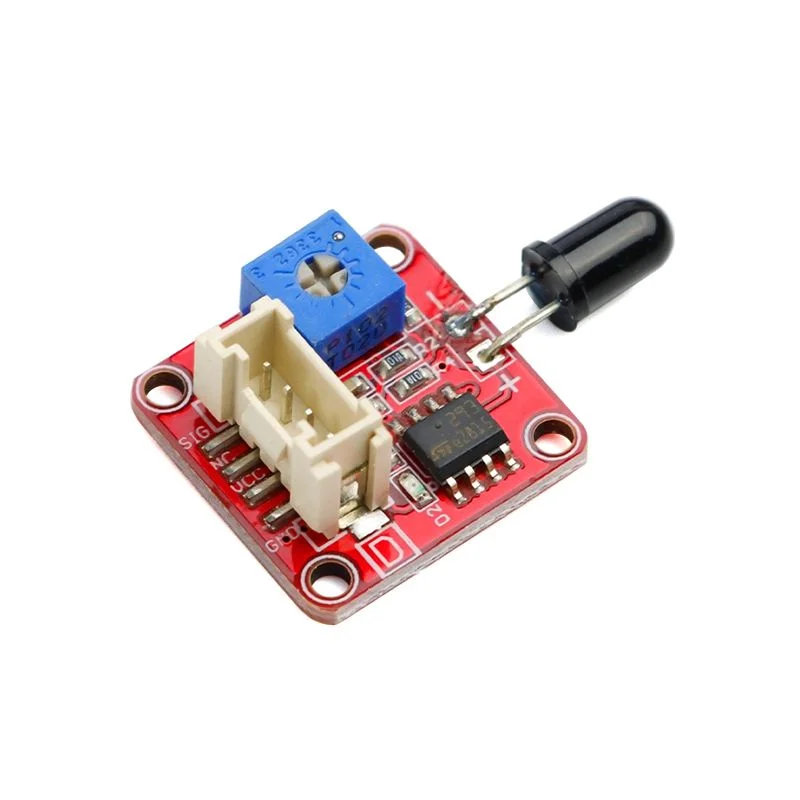

Crowtail – Flame Sensor 2.0 – flame sensor with YG1006 phototransistor, 760–1100 nm, 5 V
search
  • Crowtail – Flame Sensor 2.0 – flame sensor with YG1006 phototransistor, 760–1100 nm, 5 V
  • Crowtail – Flame Sensor 2.0 – flame sensor with YG1006 phototransistor, 760–1100 nm, 5 V
  • Crowtail – Flame Sensor 2.0 – flame sensor with YG1006 phototransistor, 760–1100 nm, 5 V
ID: 1201704
zł9.41
Tax included

zł7.65 tax excl.

Crowtail – Flame Sensor 2.0 is a module detecting infrared radiation and flame sources, operating in the range of 760–1100 nm. Intended for use in safety systems, robotics, and educational projects.

Delivery date unknown
Out-of-Stock

Description

The Crowtail – Flame Sensor 2.0 module enables the detection of fire sources and infrared radiation in the wavelength range of 760–1100 nm. The YG1006 phototransistor used, featuring high sensitivity and a fast response time, reacts to infrared radiation thanks to its black epoxy resin package. The module can be used in autonomous fire detection systems such as firefighting robots, safety systems, or vehicles avoiding heat sources. Sensitivity adjustment allows the operation to be adapted to environmental conditions. Compatibility with the Crowtail interface facilitates integration with Arduino-based platforms.

Properties

  • Supply voltage range: 5 V
  • Detected wavelength range: 760–1100 nm
  • Detection element: YG1006 phototransistor
  • Adjustable detection sensitivity
  • Interface compatible with the Crowtail system
  • Dimensions: 32.0 × 20.0 × 9.8 mm
1201704
