RS485 Photoelectric Solar Radiation Sensor - module with a solar light sensor
ID: 1196948
5902186311480
zł278.95
Tax included
zł226.79 tax excl.
Precise solar radiation intensity sensor in the range from 400 to 1100 nm, communicating via Modbus-RTU (RS485) and resistant to harsh conditions thanks to the aluminum housing class IP67. High accuracy (±5%), fast response time (≤10 s) and resistance to dirt make it ideal for monitoring photovoltaics, environmental research and meteorology. DFRobot SEN0640
Description

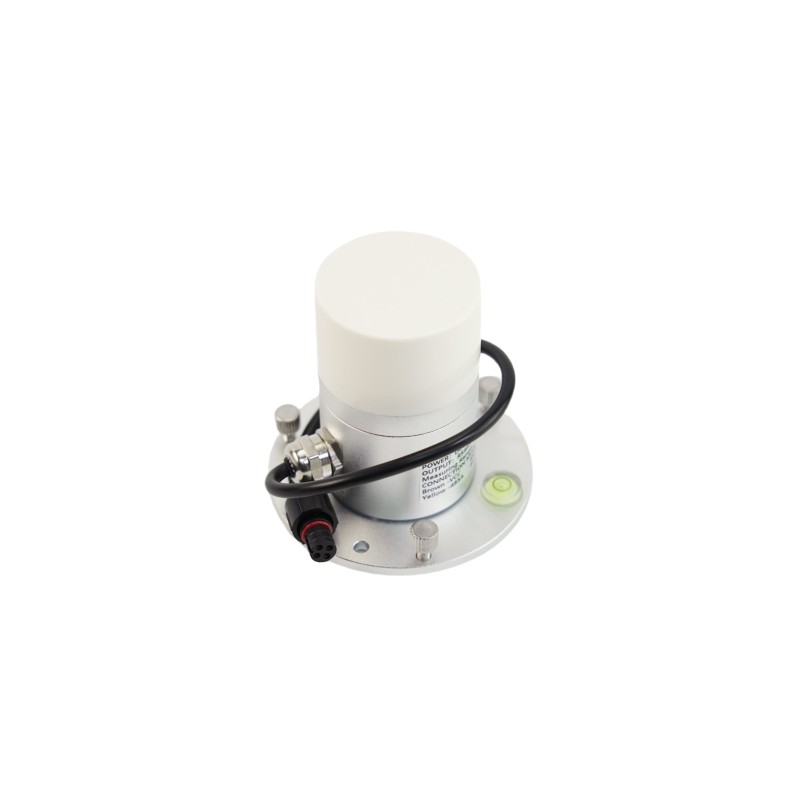

The RS485 Photoelectric Solar Radiation Sensor is an advanced device designed for the precise measurement of solar radiation intensity within the 400 to 1100 nm wavelength range. Utilizing the photoelectric principle, the sensor converts sunlight into high-accuracy electrical signals. Thanks to a high-quality photosensitive element and a wide spectral absorption range, it provides stable and reliable measurement data. An integrated dustproof shield with up to 95% light transmittance minimizes environmental interference, enhancing measurement precision. Supporting a wide DC supply voltage range from 5 to 30 V, this sensor is highly versatile for various projects and application environments. Communication via the Modbus-RTU protocol over RS485 ensures easy integration with Arduino-based systems and other industrial platforms. A durable aluminum housing and IP67 protection rating guarantee resistance to harsh weather conditions and long-term reliability. Special lens coatings reduce dust adhesion, significantly extending maintenance intervals.
Thanks to its high accuracy of ±5% and fast response time (≤10 seconds), the sensor is perfect for dynamic field applications. It can be used for monitoring plant growth, photovoltaic systems, meteorological research, and environmental analysis. High linearity (<±2%) and annual stability (≤±2%) ensure reliable results even during long-term operation. A measurement resolution of 1W/m² enables accurate tracking of real-time solar radiation intensity changes. Its robust weather resistance makes it ideal for outdoor projects and monitoring stations. Quick installation with the provided adapter and mounting screws allows for immediate deployment.
Features
- Wavelength range: 400 to 1100 nm
- Measurement accuracy: ±5%
- Resolution: 1 W/m²
- Measurement range: 0 to 1800 W/m²
- Response time: ≤10 seconds
- Communication interface: RS485 (Modbus-RTU)
- Weather resistance: IP67
- High annual stability: ≤±2%
- High resistance to environmental interference
- Wide supply voltage range: DC 5 to 30 V
Kit contains
- RS485 Photoelectric Solar Radiation Sensor
- Adapter cable
- Mounting screw set
1196948
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
