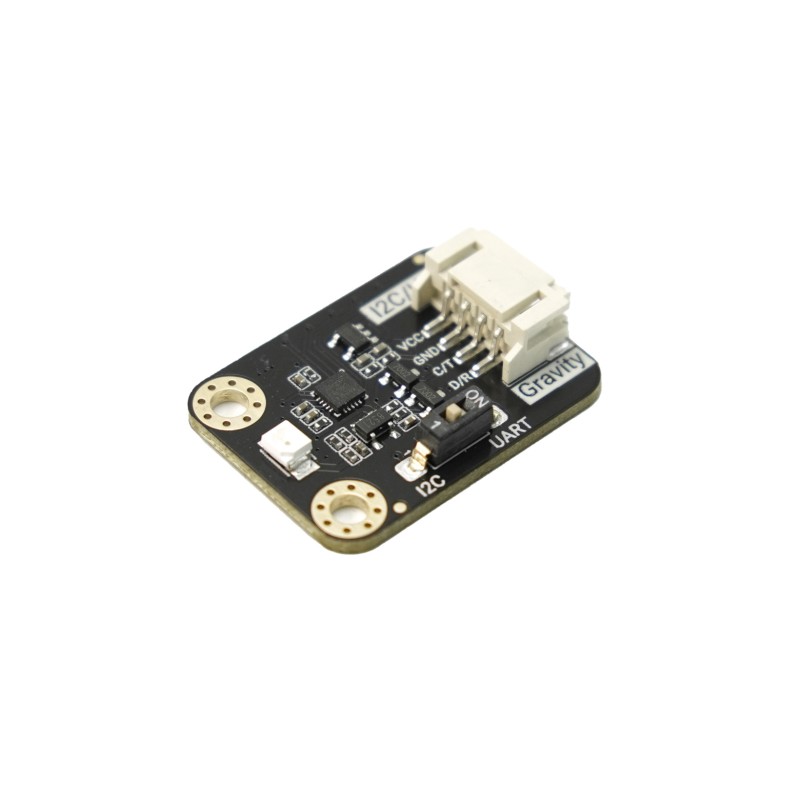

Gravity: UV Index Sensor - UV light sensor module
ID: 1196949
5902186300873
zł40.11
Tax included
zł32.61 tax excl.
Precise sensor measuring UV radiation in the range of 240 to 370 nm, directly outputting UV index value (0-11) and hazard level (1-5). Thanks to I2C and UART interface support and compact design, it is ideal for environmental monitoring, health protection and optimization of photovoltaic installations. DFRobot SEN0636
Description

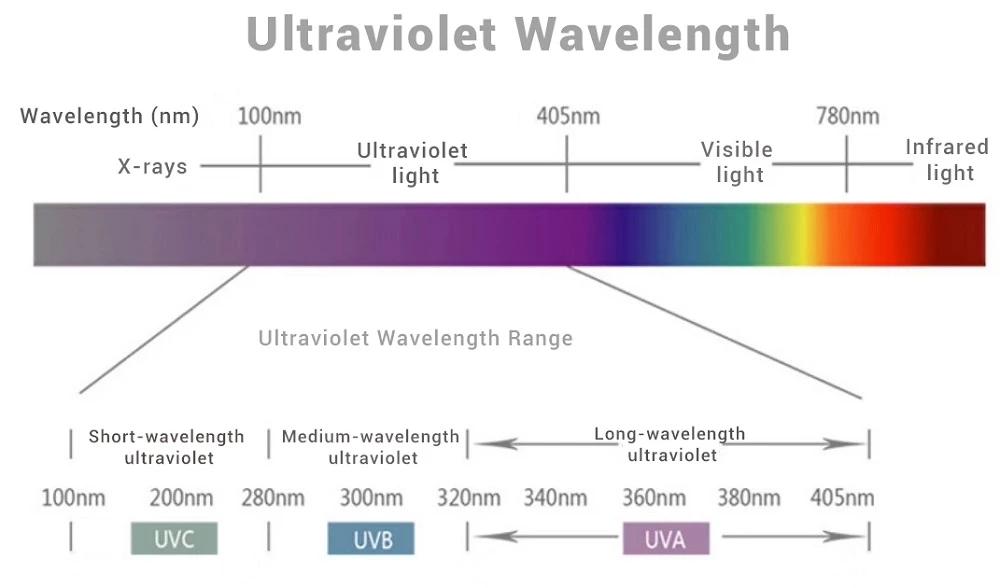

The Gravity: UV Index Sensor is a precision sensor designed to measure ultraviolet (UV) radiation in the 240 to 370nm wavelength range, covering the UVA, UVB, and UVC bands. The sensor primarily focuses on detecting UVB radiation, making it an ideal tool for monitoring skin damage risk and assessing sun exposure. With direct output for the UV index (0-11) and risk level (1-5), users can quickly assess current conditions without additional calculations. Its high sensitivity enables applications such as environmental monitoring, health protection, home automation, and safety systems. The sensor supports two communication methods — I2C and UART — providing flexibility for integration with various control systems, microcontrollers, and single-board computers. Thanks to a wide supply voltage range from 3.3V to 5V, it is compatible with both 3.3V and 5V systems. Its compact design allows for easy installation even in limited spaces.
Robust construction and an operating temperature range from -30°C to 80°C ensure reliable performance even in harsh conditions. The sensor is perfect for outdoor installations, educational projects, and commercial UV monitoring systems. By directly providing UV values and risk levels, it significantly simplifies the implementation of alarm and warning systems. The Gravity: UV Index Sensor helps users raise awareness about UV radiation hazards, contributing to improved health and safety. Its versatility and ease of use make it an excellent choice for hobbyists, students, and professionals alike. The integrated digital output minimizes reading errors, while the fast response time ensures real-time data availability. Built-in support for Arduino-based platforms and compatibility with popular development boards make this sensor ready for immediate deployment.
Features
- UV wavelength range: 240 to 370 nm (UVA, UVB, UVC)
- Direct output for UV index (0-11) and risk level (1-5)
- High-grade UV sensor chip ensuring measurement reliability
- Supply voltage: 3.3V to 5V
- Communication methods: I2C and UART
- I2C address: 0x23
- Operating temperature range: -30 to 80°C
- Dimensions: 30 x 22 mm
Kit contains
- Gravity: UV Index Sensor (240-370nm, UVA, UVB, UVC)
- PH2.0-4P connection cable
1196949
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
